Brother DCP 8085DN

5-135
Confidential

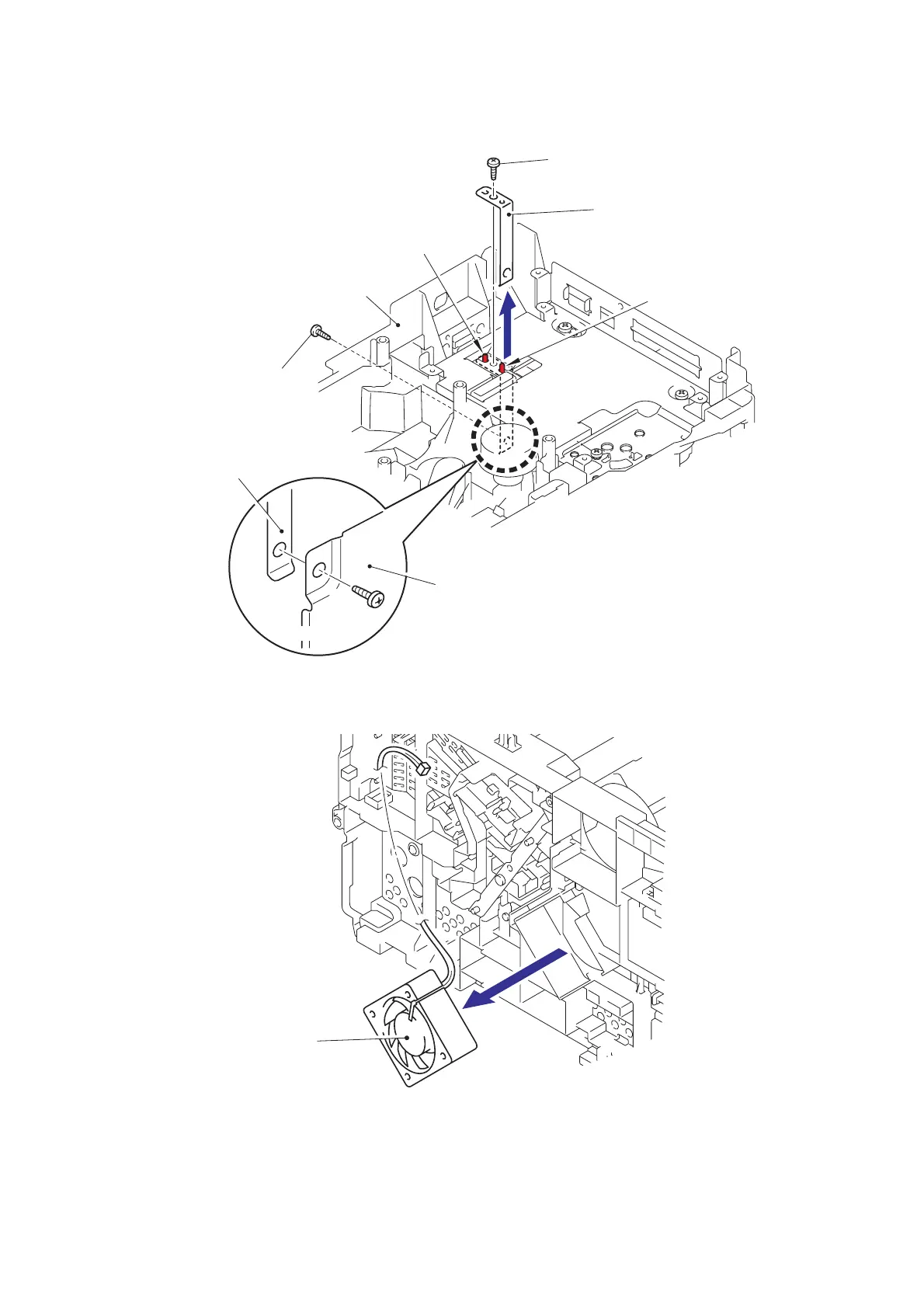

(4) Remove the two bind B M4x12 Taptite screws, and then remove the Plate.
Fig. 5-183
(5) Remove the Gear 23, Gear 17 (white), Gear 17 (black) and Gear 20.
Fig. 5-184
Taptite, bind B M4x12
Taptite, bind B M4x12
Frame L
Plate
Plate
Base plate LV
Pin
Pin
<Back side>
Fan motor 60 unit LV
