Brother MFC-7450

3-12
Confidential

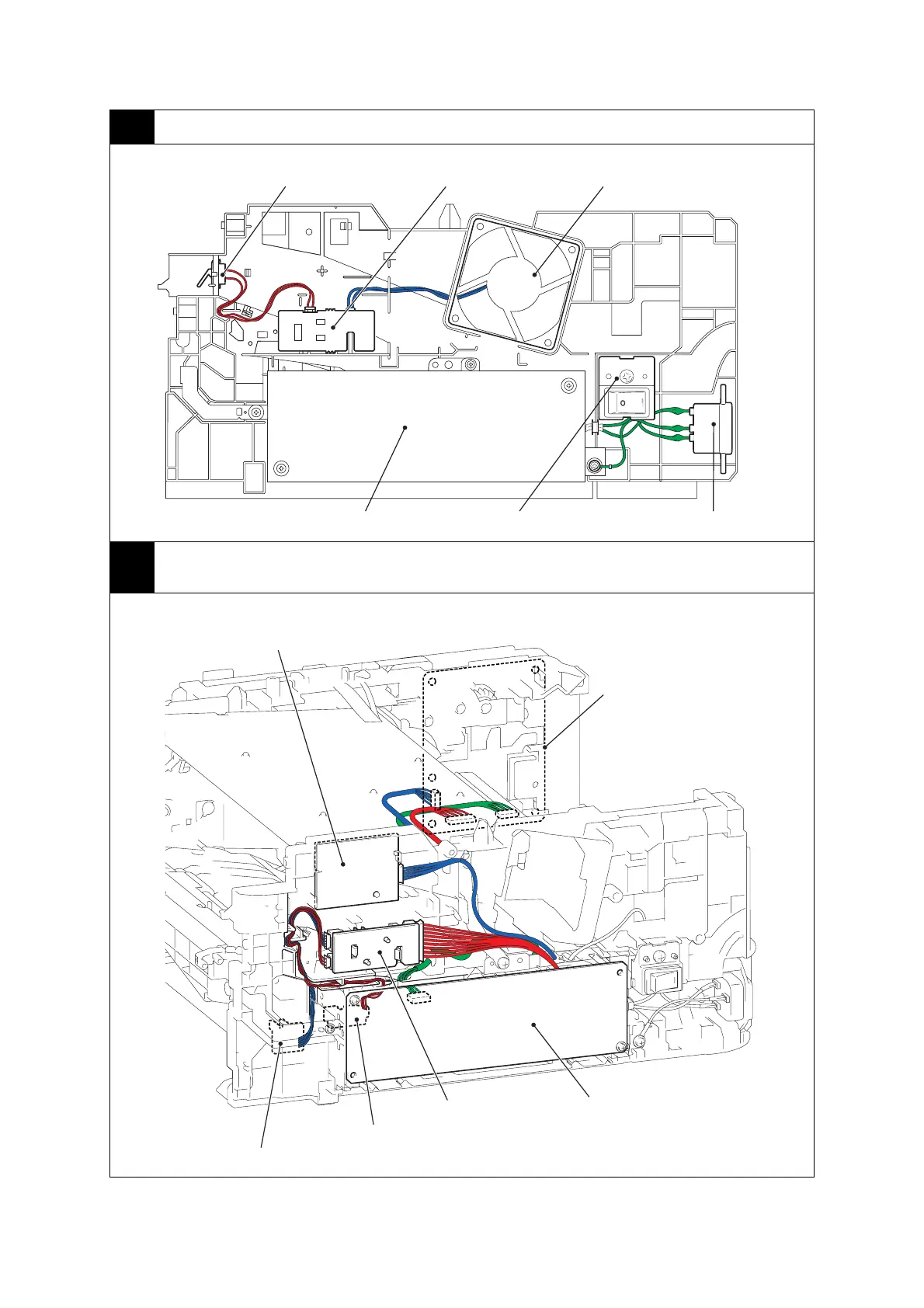

6 MAIN FRAME R ASSY
7
WIRELESS LAN PCB ASSY (only MFC7840W) / TONER LED PCB ASSY / LVPS PCB UNIT / MAIN PCB ASSY/
REGISTRATION FRONT SENSOR PCB ASSY / REGISTRATION REAR SENSOR PCB ASSY
Front cover sensor
PS PCB unit SW holder Inlet harness ASSY
Toner LED PCB ASSY Fan motor 60 unit
PS PCB unit
Toner LED PCB ASSY
Wireless LAN PCB ASSY
(only MFC7840W)
Main PCB ASSY
(Main Frame L ASSY)
<Back side>
<Right side>
Registration rear sensor PCB ASSY
Registration front sensor PCB ASSY
