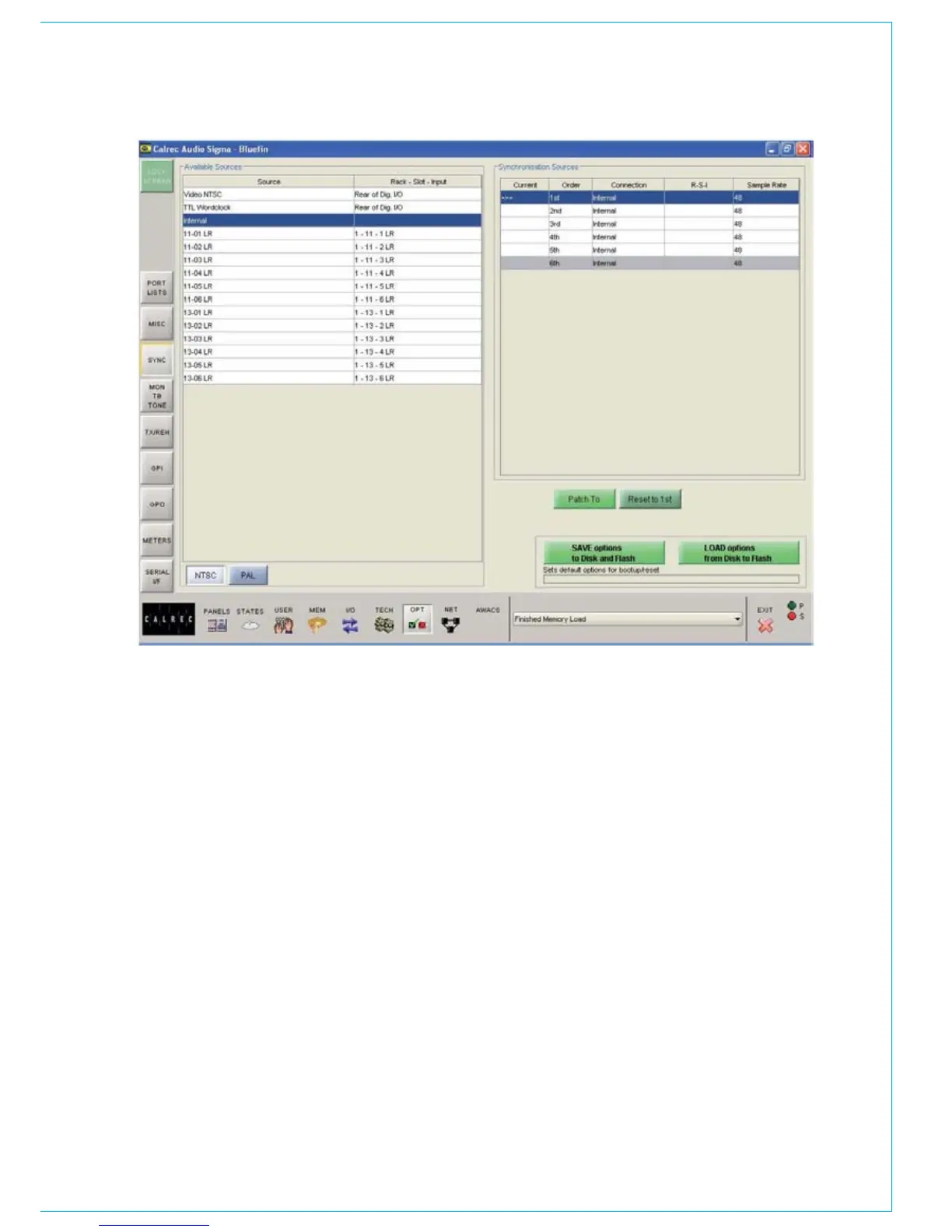

SyNCHRONIzATION SCREEN
AES inputs on the console can also be
used as an external source. Please note
that the facility for locking to external AES
sources is restricted to the first six inputs of
each AES card in the console. When using
a digital input or wordclock as a source, the
system will tolerate a variation of up to +/-
100 Hz in the frequency of the source.
Assigning Synchronization Sources
Synchronization sources are assigned by
selecting an available source from the
list on the left side of the screen, then
selecting one of the five places in the
priority list on the right side of the screen,
and selecting Patch To.
Reset to 1st
If the first source has failed, and the system
is running on any of the selections 2 to 6,
when the first source becomes available
again, the system can be RESET TO 1ST
during any convenient off-air period.
