ExTERNAL METER OUTPUT PORTS

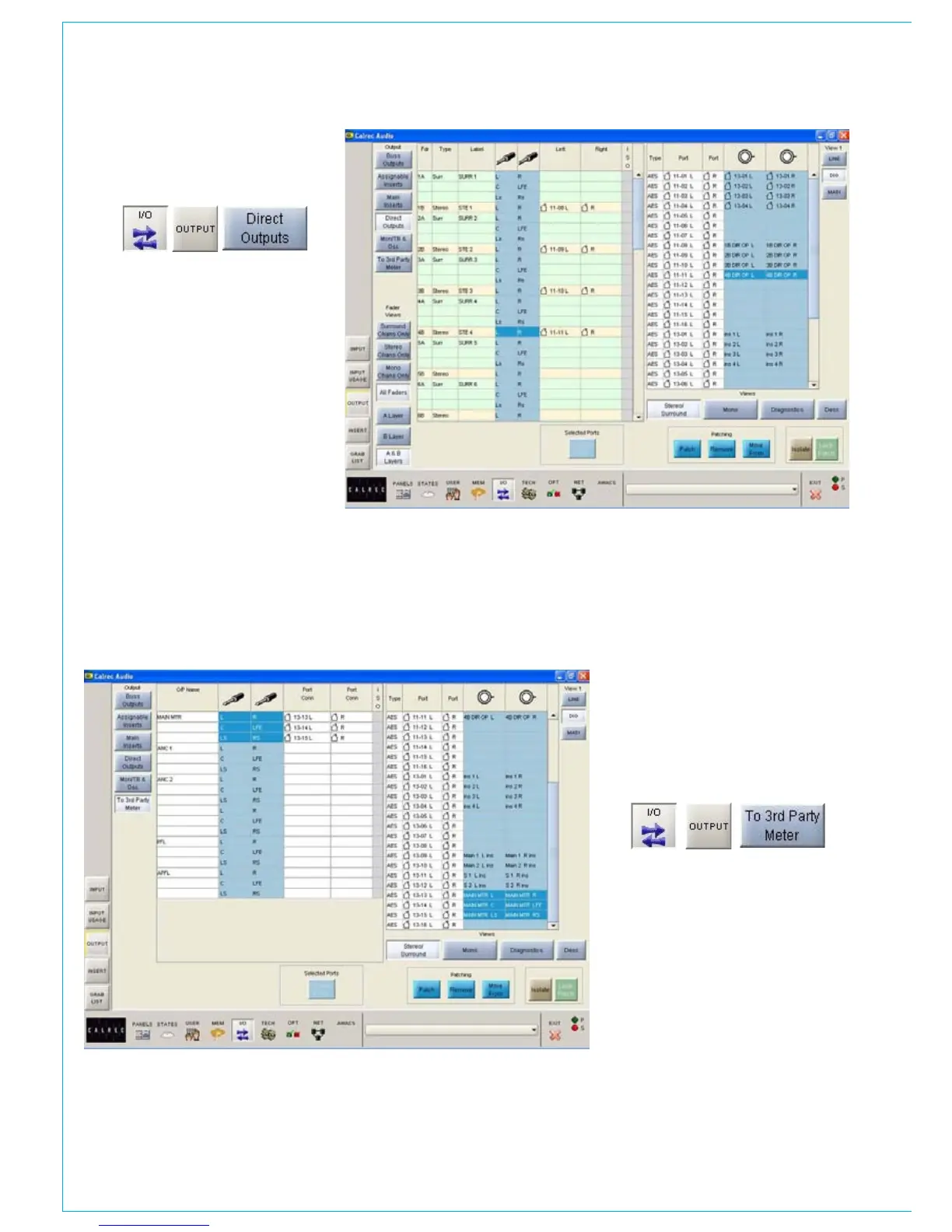

The output ports for the direct outputs,
can be patched on the I/O - OUTPUT
screen, by selecting “Direct Outputs”
from the list of Output Views.
dIRECT OUTPUT PORTS
The output ports for external meters, such
as a DK phase scope, can be patched on
the I/O - OUTPUT screen, by selecting “To
3rd Party Meter” from the list of Output
Views. Most of the meters on the console
are driven internally and do not require
output ports.
