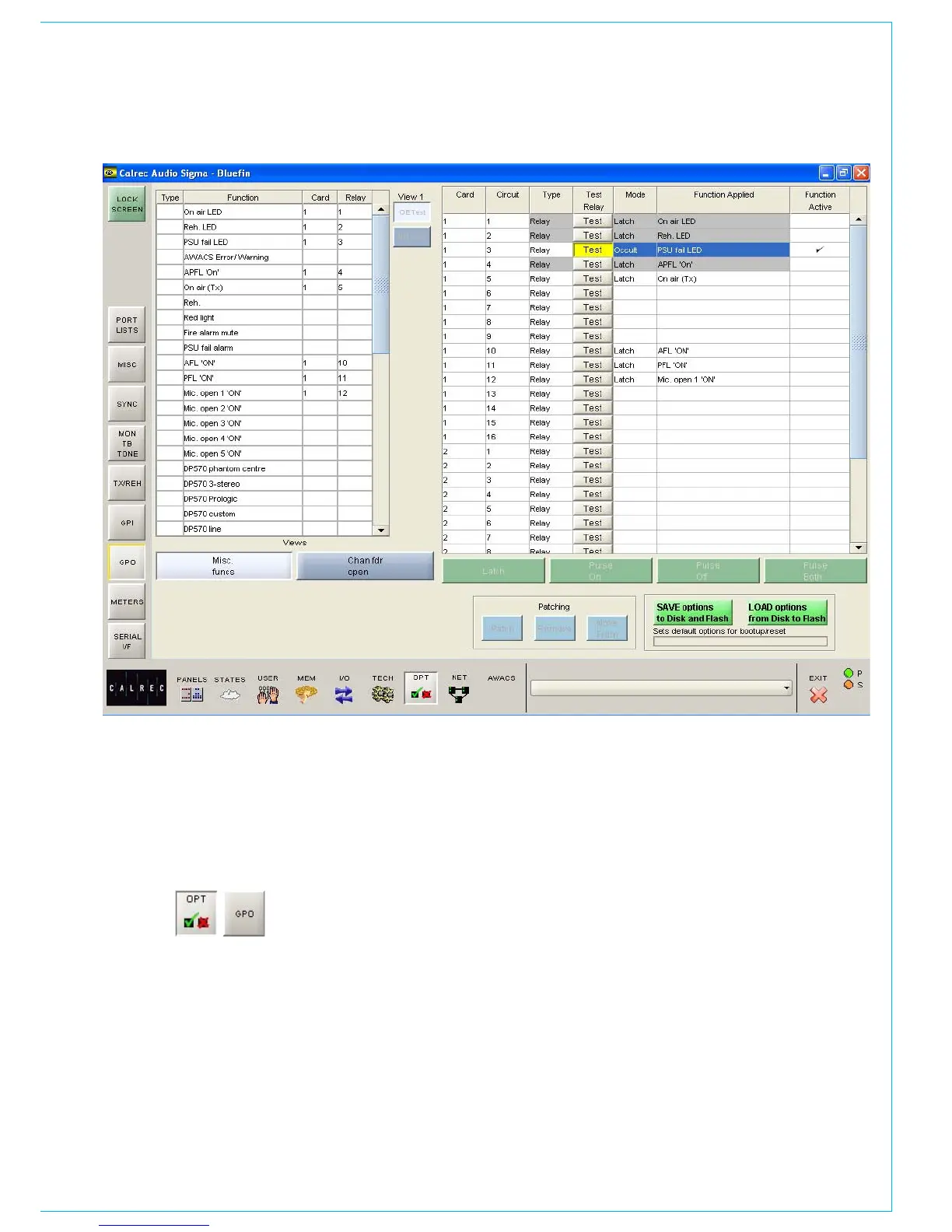

GENERAL PURPOSE OUTPUTS SCREEN
“Misc Functions” or “Channel
Fader Open”
The relay-isolated general purpose
outputs can have various console
functions assigned (with “Misc
Functions” selected), or they can be set
to operate when particular faders are
opened (with “Channel Fader Open”
selected). Console functions can be
assigned to more than one output.
GPO Patching
To make an assignment, select a
function (left side of screen), and an
output (right side of screen), and select
Patch. Assignment can also be moved
and removed, in a similar way to port
connections.
Latch or Pulse
The relay can be set to latch or pulse for
100 ms, when the console function is
activated. When setting the relay to pulse,
there are three different options.
Pulse On - Relay is set to pulse when the
function is activated.
Pulse Off -Relay is set to pulse when the
function is de-activated.
Pulse Both - Relay is set to pulse once
when the function is activated, and again
when the function is de-activated.
Test
Correct operation of the device connected
to a GP output can be verified by clicking
on the Test button.
