Bar colours
The user can select the colours to be
used on the meters. The top/middle/
bottom colours for each signal can
be selected independently. Select the
signal from the list, then select the
colours from the pallette. The selected
colours for each signal are shown at the
bottom of the screen.
Signal Order
The user can select the order that the
surround signals appear. The order can
be shuffled by selecting a signal from
the list and using the Up and Down
buttons. The order chosen will be used
for all surround meters.
Screen Brightness
Over time, the brightness of TFT
screens can degrade. For this reason,
a set of controls are provided to
adjust the brightness of each screen
individually and globally.
The brightness for each screen can be
adjusted from 0-9 using the selection
buttons. A selection window will appear
with the current level highlighted.
Selecting a different level will close the
window and the new level will be shown
on the screen. The global offset level
will adjust the brightness of all screens
by the value selectable in the same way,
from -5 to +4.

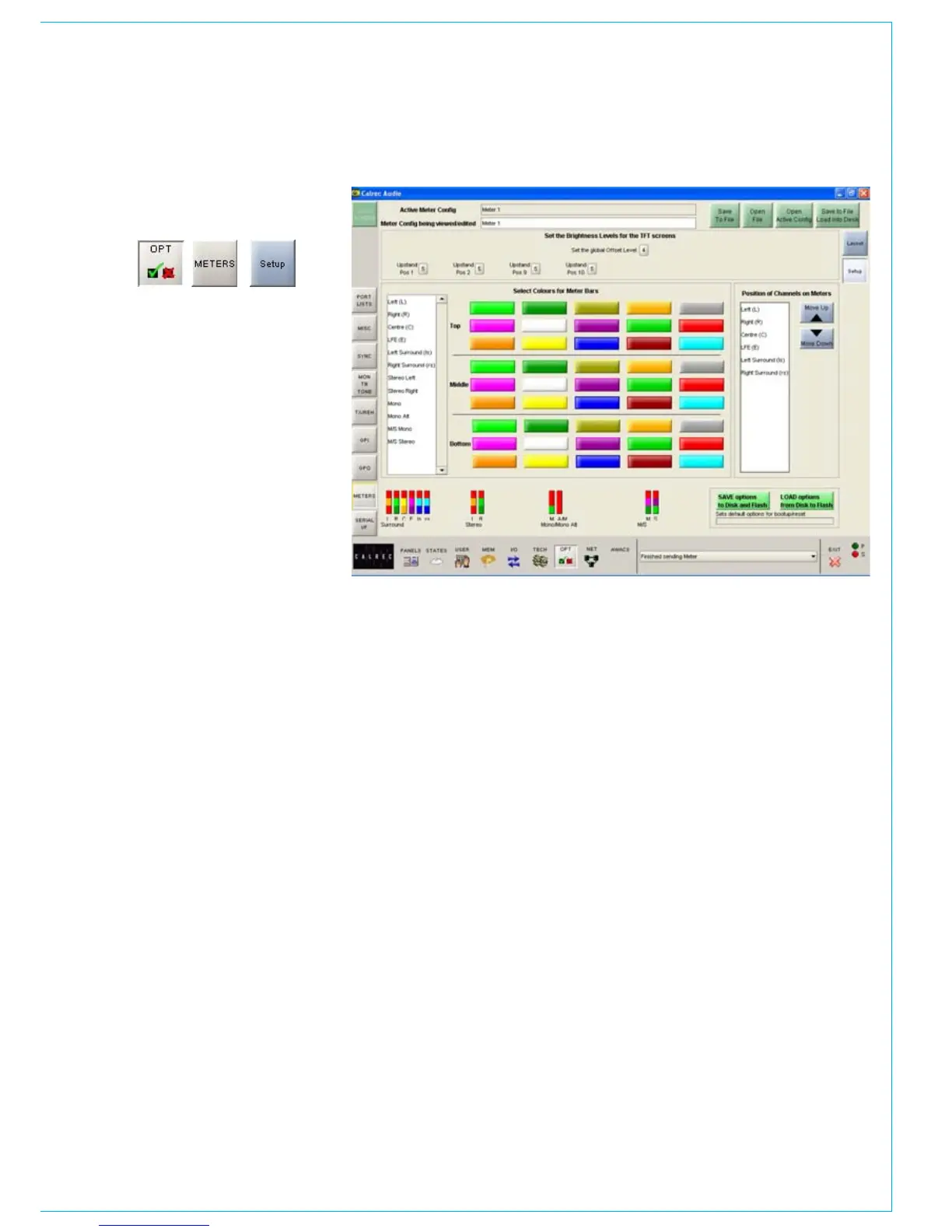

TfT METER SETUP SCREEN
