AdJUSTING TfT SCREEN LAyOUT

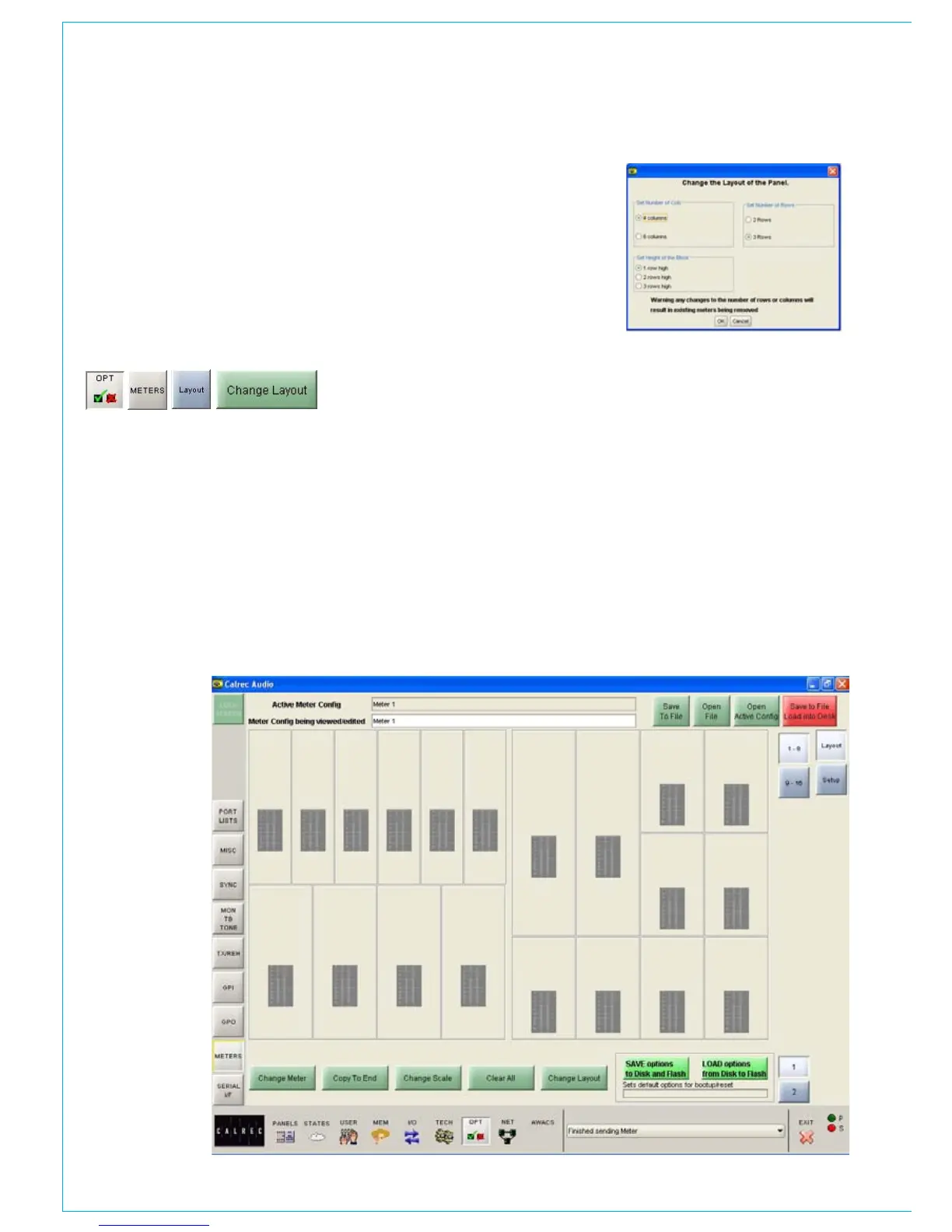

Select a meter position (its background
turns blue), and select CHANGE
LAYOUT. A dialogue box then allows
the number of columns and rows in the
selected meter’s half of the screen to be
chosen. The meter’s height can then be
set to span the available rows.
Rows
Each half of the screen can have two or
three rows, and the meters within each
column can be set to take up 1, 2 or 3
rows, to achieve different row heights for
different columns. Changing the number
of rows only affects meters in the selected
meter’s half of the screen.
There can be 4 or 6 columns in each row
across each half of the screen. As the
screens are set up in halves, there can be
different column widths on each side of the
screen. Changing the number of columns
will affect the selected meter’s row only
(unless the change affects meters already
set on other rows). This allows rows to have
different numbers of columns.
Block Height
In a column with 2 rows, selecting 1 row
high makes the meter take up half of the
column it occupies. Selecting 2 rows high
makes the top meter position take up the
full height of the column it occupies. In a
column with 3 rows, selecting 1 row high
makes the meter take up one row (1/3 of
column height) in the column it occupies.
Selecting 2 rows high allows the meter to
take up the row it is on and the row below
in its column. 3 rows high makes the meter
the full height of its column.
