Layering
Each fader can control two independent
audio signal paths, named A and B. These
signal paths can be either channels or
groups, although for easy reference,
the faders are simply known as channel
faders. B signal paths are fully equipped
with all the same facilities as an A path.
When switching between A and B, the
fader will move to the correct position,
and the displays will show settings for the

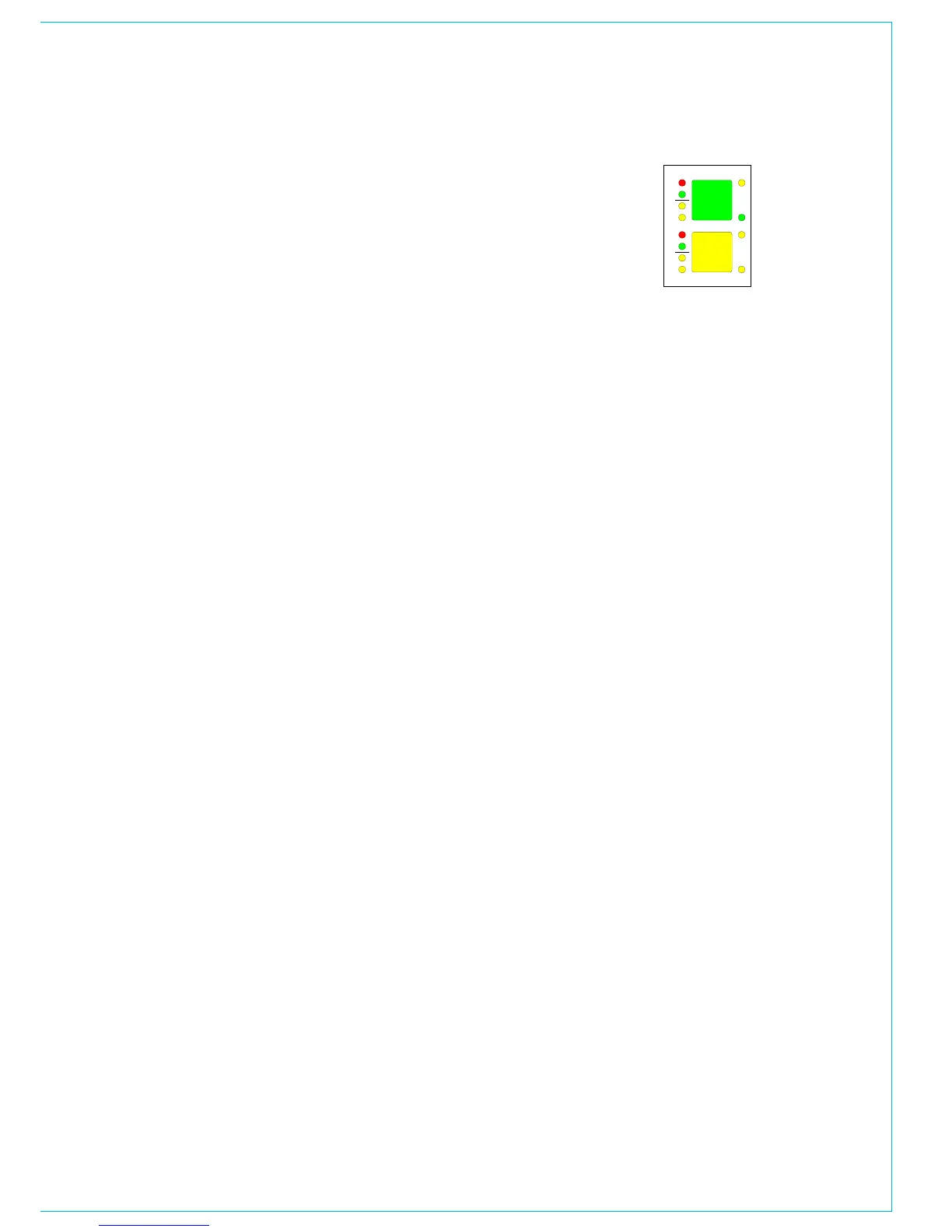

selected path. The colour of the displays
on the fader strip indicate the active path:
Green for A, Amber for B.
Less important signals can be placed on
the B layer. Even then, only one button
press is required to access them again.
Using the ALL A and ALL B buttons is like
moving to a different section of a single
layer design (this can be set to operate
momentarily). This arrangement allows
more channels to be fitted into the space
available in the frame.
A setup option allows selected faders to
be excluded from the ALL A or ALL B
function. An additional option then allows
the individual fader A and B buttons to be
disabled to eliminate the risk of a critical
audio channel not being on the surface at
all times.
LAyERING ANd ASSIGNAbLE CONTROL
Assignable Control
Each fader has an Assign button for
each audio path. The Assign buttons are
labelled A and B for channel or group
paths, and M1, M2, S1 and S2 for the main
and sub-main output paths on the main
faders. Pressing the Assign button causes
the central control panels (the Assign
panels) to display and control the settings
for that fader’s channel, group or main
path.
In this way a large number of controls can
be accessed, for each audio path, from
the central listening position. As there is
less need to move around a large control
surface, controls can be accessed more
efficiently.
A number of controls and displays are also
provided on a per fader basis, to allow
important information to be even more
easily available.
In addition to the above, the channel
faders are assignable, in that the operator
can choose which faders to use for the
mono channels, stereo channels, surround
masters or groups.
