Frequency
The frequency of the tone can be adjusted
from 20Hz to 20KHz in in incremental
steps using the nudge buttons, or set to
1KHz using the 1K button. Alternatively,
the sweep button will set the oscillator to
sweep through all frequencies.
Level
The level of the test tone can be adjusted
from -60dBFS to 0dBFS using the nudge
buttons, or set to the reference level using
the REF LEV button.
Tone Interrupt
The Tone Interrupt buttons are useful for
testing stereo monitoring and metering. It
allows the tone to be interrupted on the left
side only, or on the left and right sides in an
alternating pattern.
Clearing Oscillator Routes
TONE CLEAR clears all oscillator routes
made, providing an easy way of removing
test tones from signal paths.

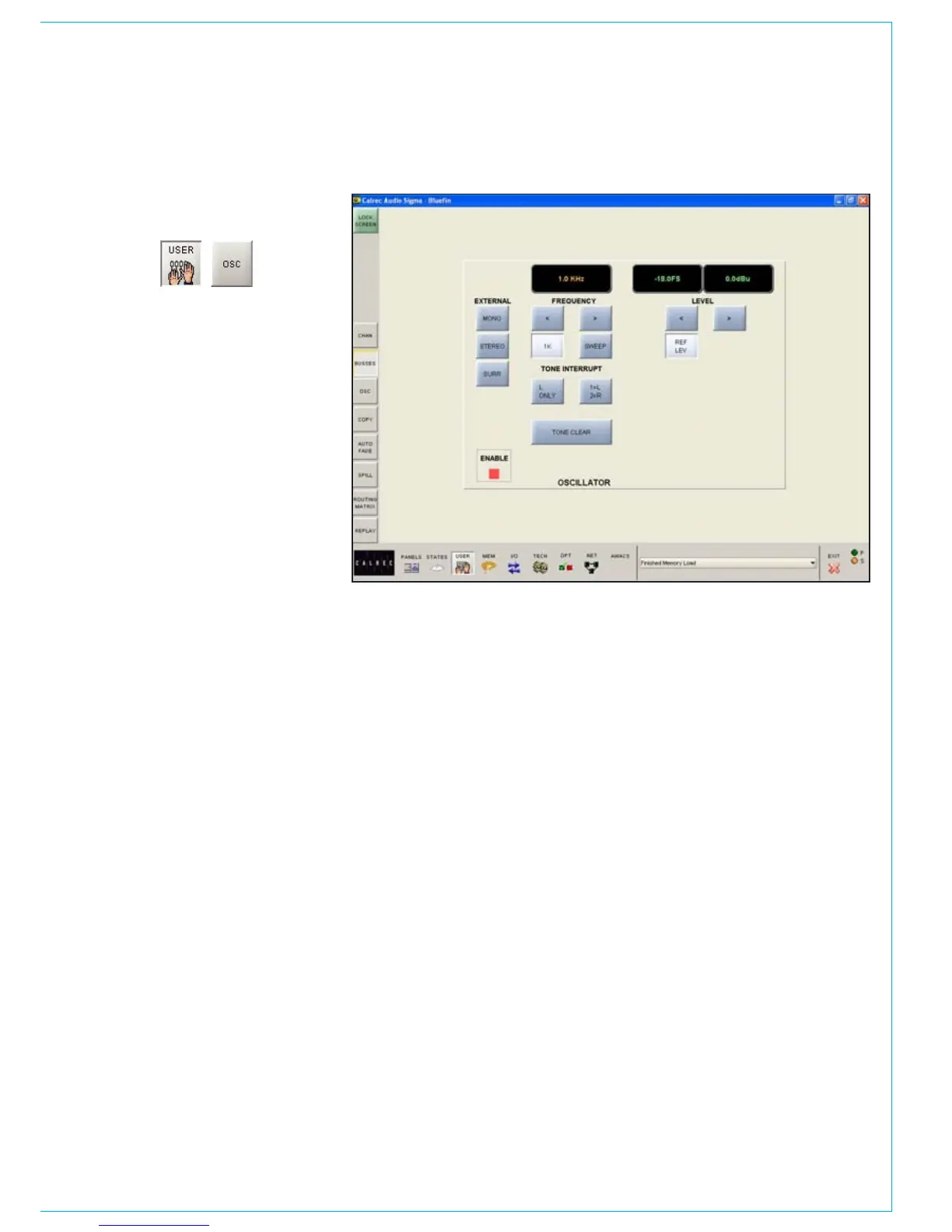

OSCILLATOR SCREEN
External Input
The External Input buttons replace the
tone with a mono, stereo or 5.1 surround
external source of your choice. This
allows for external oscillators to be used if
preferred. The ports for this are set up on
the OPTIONS - MON TB TONE - Talkback
and Tone.
Enable Indicator
The Enable indicator shows that the
Oscillator controls are enabled.
