CALREC Putting Sound in the Picture 13
The 8 groups can each be designated
as mono, stereo or full 5.1 surround. In
addition, as many VCA style groups as
required can be created.
If a main or sub-main output is designated
as 5.1 surround, then a mono rear is
2 SUB-MAINS
STEREO
OR 5.1
MADI
OUTPUTS
AES
OUTPUTS
ANALOGUE
LINE
OUTPUTS
MADI
INPUTS
AES
INPUTS
ANALOGUE
LINE
INPUTS
MIC/LINE
INPUTS
8 GROUPS
MONITORING
2 MAIN
OUTPUTS
STEREO
OR 5.1
AUX
OUTPUTS
20 MONO
OR
10 STEREO
48
TRACK
OUTPUTS
1
2
A CHANNELS
B CHANNELS
INPUT MATRIX
OUTPUT MATRIX
108 STEREO PLUS 104 MONO CHANNELS
UP TO 52 5.1 SURROUND CHANNELS
CONFIGURABLE FROM STEREO AND MONO
RESOURCES.
MONO, STEREO OR
5.1 SURROUND
HYDRA
INPUTS
HYDRA
OUTPUTS
Please note that Hydra
inputs cannot be patched
to Hydra outputs
(0759-51)

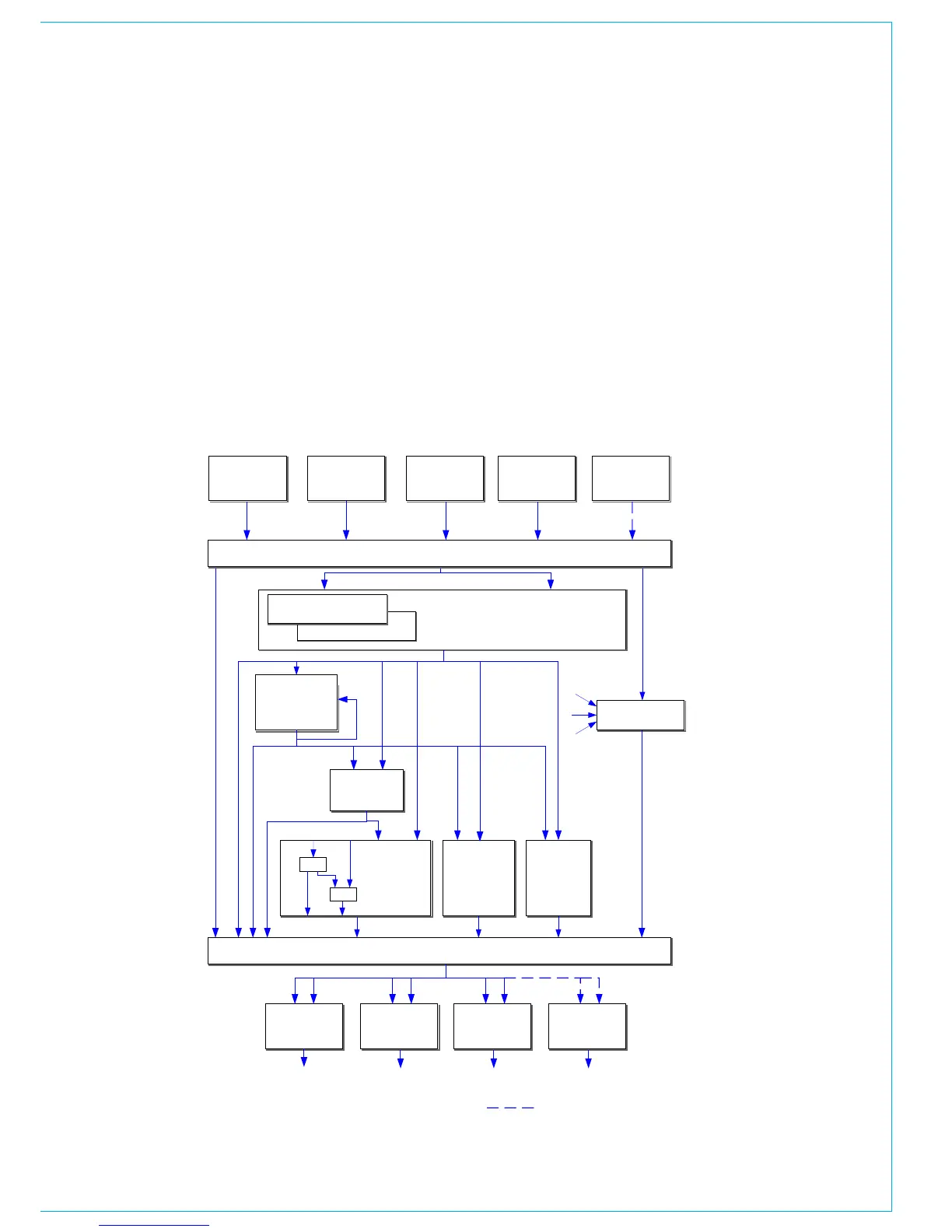

SIGNAL PATHS
derived at the output to allow it to be
used as LCRS mains. Stereo and mono
downmixes of the 5.1 are also produced.
If a channel is panned to both a stereo
and 5.1 bus simultaneously, the pan law to
each will be correct, as though the other
bus did not exist, even though the same
control is used to achieve the pan.
The 20 mono auxiliary outputs can be
paired up to give up to 10 stereo auxiliary
outputs.
