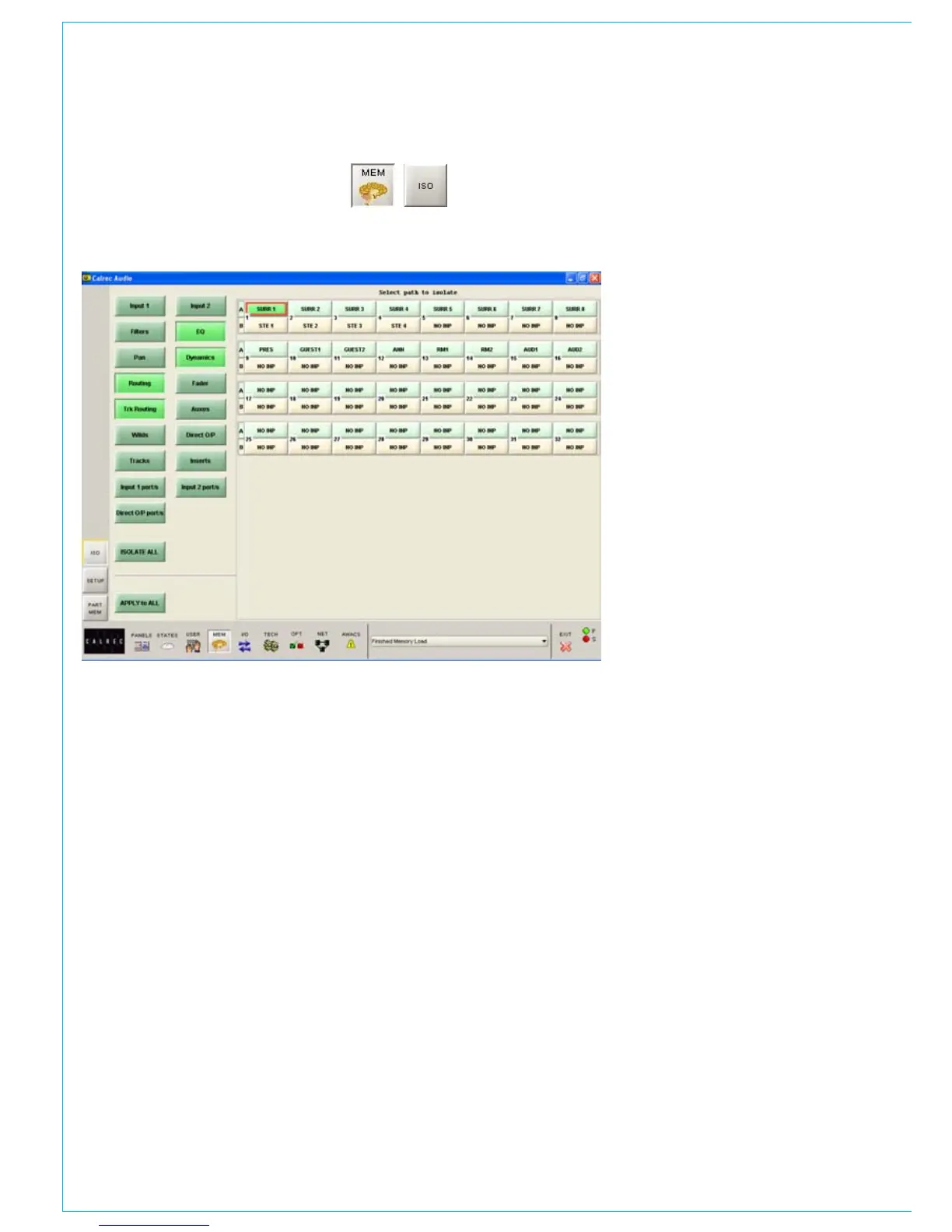

The right side of the screen shows all fader
paths. Paths can be selected from here or
by pressing the fader assign button.
The buttons on the left side of the screen
allow settings for the selected path to
be chosen for isolation. ISOLATE ALL
selects all the settings to be isolated for the
selected channel or group.
APPLY TO ALL applies the selected
isolation settings to all channels and
groups. To clear all isolation settings from
all channels and groups, ensure all settings
are de-selected, and select APPLY TO
ALL.
When a path or settings for a path are
isolated, the path will be highlighted with a
red box on the right side of the screen.
Surround Paths
A surround master can be part of a memory
isolation selection, but its spill paths cannot
be individually isolated from memory recall.
MEMORy ISOLATION
Isolated Ports
When an input is isolated or de-isolated,
its port will also be isolated or de-
isolated. However, the I/O screens allow
port isolation to be turned on and off
independantly. Isolated ports are highlghted
in brown on the I/O screens.
If an isolated port connection is changed,
any isolation setting will be cleared, unless
one of the console-wide isolation options is
selected and contains that port.
If an output connection in the memory cannot
be made because it needs to use an isolated
port, this will be reported via AWACS.
Please note that Hydra output ports cannot
be isolated from memory recall.
