Canrig PC3000 - Drawing ID: 121100038 Rev No: DEV-01

3
1
2
4
5
6
2
ITEM PART NUMBER REV QTY/UNIT TYPE DESCRIPTION MATERIAL STOCK SIZE MANUFACTURER MANUFACTURER PART NO LENGTH PROCESS 1 PROCESS 2 PROCESS 3 PROCESS 4
1 AY50215 REL-01 1 PURCHASED COOLER, OIL, C/W 24VDC ELEC MOTOR - - ASA HYDRAULIK ASA0176AD02 - #VALUE! #VALUE! #VALUE! #VALUE!
2 H15-070432-20-20 REL-01 2 PURCHASED TEE, FEM SWV RUN 1-1/4 JIC, MALE 1-1/4 JIC - - AEROQUIP 203102-20-20S - - - - -
3 H15-070123A-16-20 REL-01 2 PURCHASED REDUCER, JIC 1-1/4 FEM, 1 MALE - - AEROQUIP 221501-20-16 - - - - -
4 H15-0506-16-16 REL-01 1 PURCHASED ADAPTER, FEM SWV 1 JIC, MALE 1 ORB - - AEROQUIP 2266-16-16S - - - - -
5 H10332 REL-01 1 PURCHASED VLV, HYD, CHECK, INLINE, SAE #16 - - MP FILTRI C-1000-S-65-SAE -
6 H15-070120-16-16 REL-01 1 PURCHASED ADPT, MALE 1 JIC, MALE 1 ORB - PARKER 16 F5OX-S - - - -
REV. DESCRIPTION DATE
DEV-01 FIRST MANUAL / ASSEMBLY ISSUE 8/8/2007
REV:
DATE CREATED:
121100038
July 23, 2007 11:55:36 AM

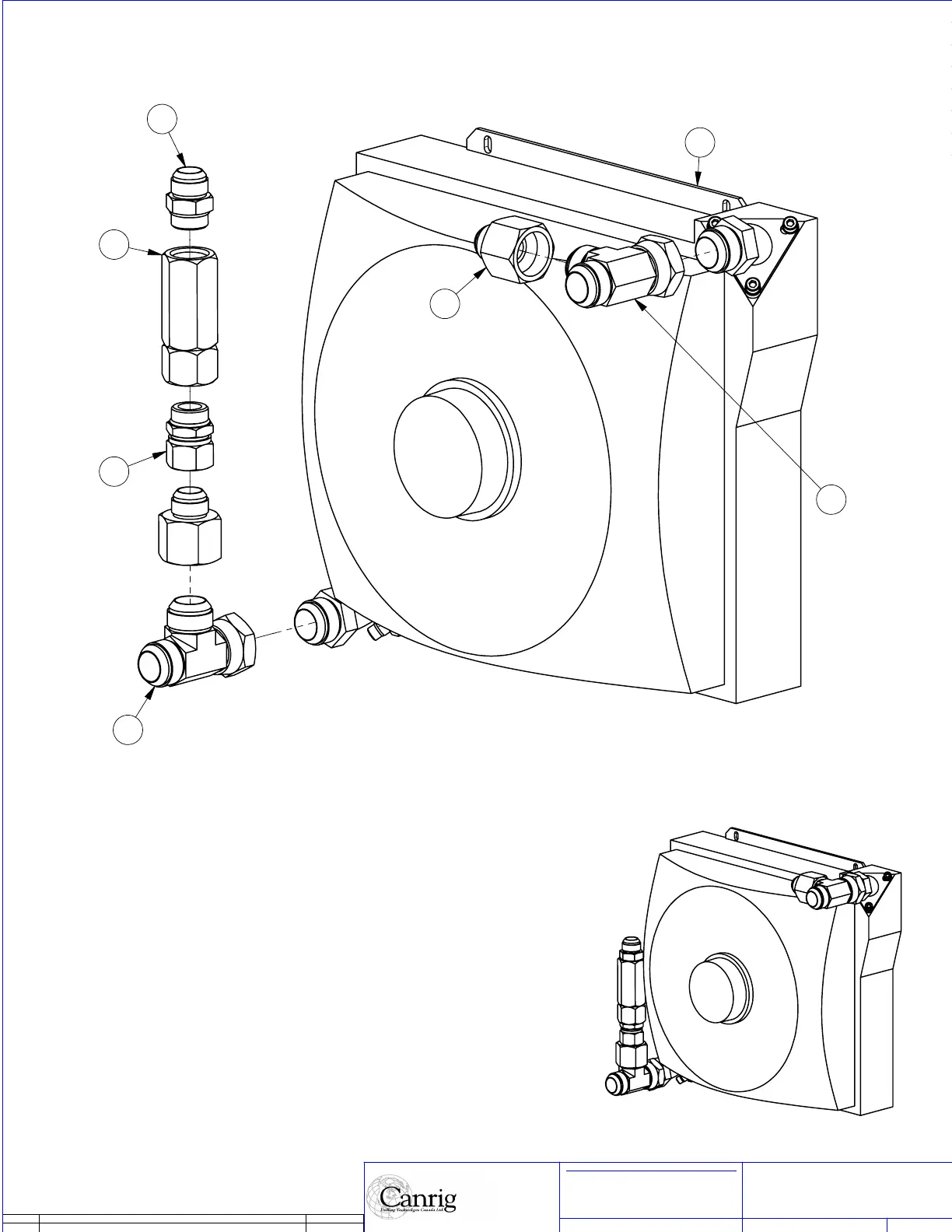

HYDRAULIC COOLER ASSEMBLY
SHEET 1 OF 1
DEV-01
PART NO:
CANRIG DRILLING TECHNOLOGY CANADA LIMITED © 2006
