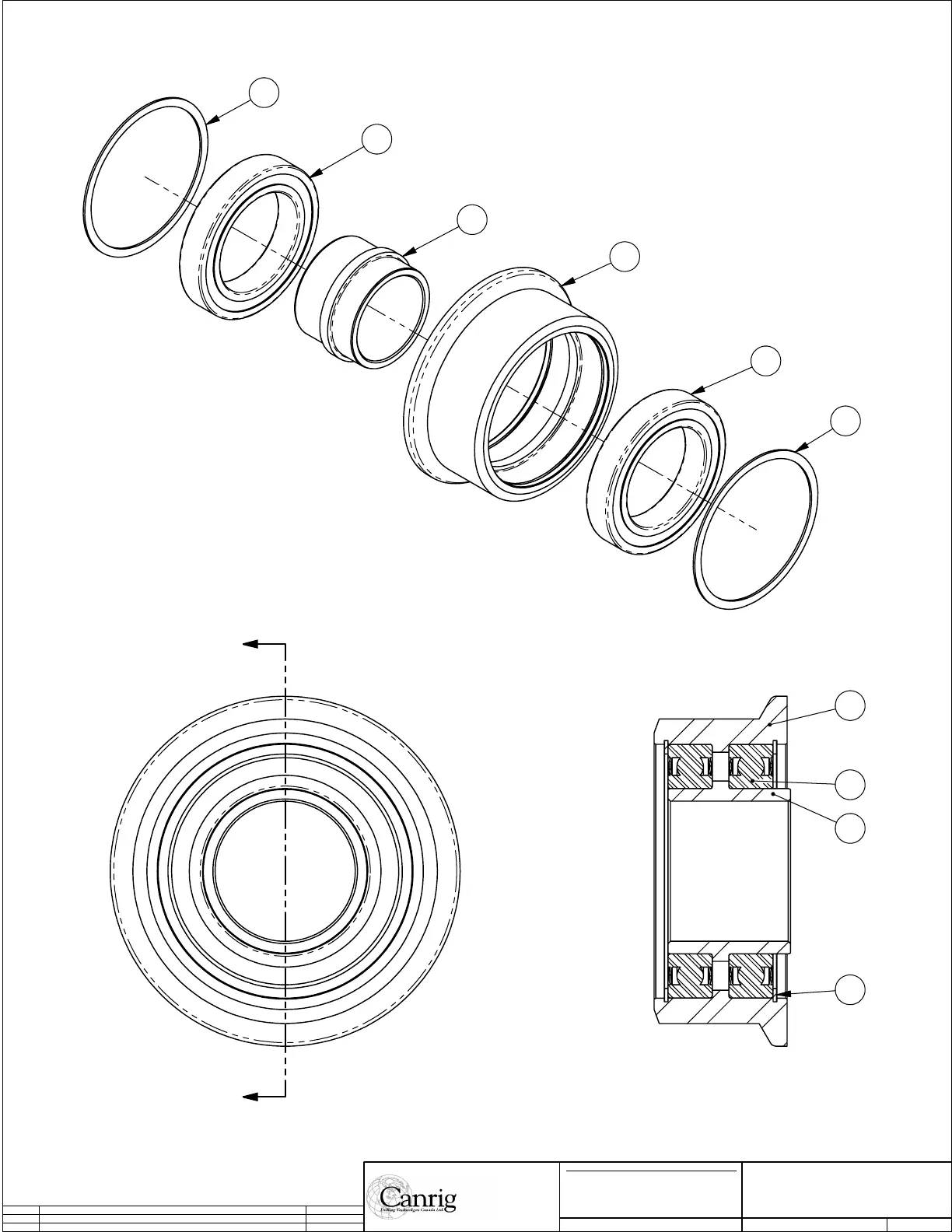

Canrig PC3000 - Drawing ID: 121300019 Rev No: A

A
A
SECTION A-A
1
2
3
4
4
2
?
1
2
4
ITEM PART NUMBER REV QTY/UNIT TYPE DESCRIPTION MATERIAL STOCK SIZE MANUFACTURER MANUFACTURER PART NO LENGTH PROCESS 1 PROCESS 2 PROCESS 3 PROCESS 4
1 161100285 A 1 ROUND BAR TAPERED FLANGED ROLLER AISI 4140 HTSR 32Rc 6 1/4" - - 2 3/8"
2 M10684 A 2 PURCHASED BRG, DEEP GROOVE 2 SEAL 75 X 115 X 20 - 75 X 115 X 20 FAG BEARINGS 6015-RS2 -
3 161100286 A 1 ROUND BAR FLANGED ROLLER BEARING SLEEVE AISI 4140 HTSR 32Rc 3 1/4" - - 2 3/16"
4 M10863 A 2 PURCHASED INTERNAL 4.52 IN, RRT-452 G40.21-44W - SPIROLOX RR-452 -
REV. DESCRIPTION DATE
A UPDATED DRAWING FORMAT 6/10/2008
DEV-01 FIRST MANUAL/ASSEMBLY ISSUE 7/30/2007
REV:
DATE CREATED:
121300019
30 July, 2007 9:04:33 AM
CARRIER REAR ROLLER
SHEET 1 OF 1
A
PART NO:
CANRIG DRILLING TECHNOLOGY CANADA LIMITED © 2006
THE DRAWINGS, INFORMATION AND SUBJECT MATTER
HEREOF ARE THE CONFIDENTIAL, SOLE AND EXCLUSIVE
PROPERTY OF CANRIG DRILLING TECHNOLOGY CANADA
LTD, AND ARE NOT TO BE COPIED, REPRODUCED OR USED
IN ANY MANNER FOR ANY PURPOSE WHATSOEVER
WITHOUT WRITTEN CONSENT OR DIRECTION.
