Canrig PC3000 - Drawing ID: 111200061 (1 of 2) Rev No: 01

A
C
B
D
2
8
5
ITEM PART NUMBER REV QTY/UNIT TYPE DESCRIPTION MATERIAL STOCK SIZE MANUFACTURER MANUFACTURER PART NO LENGTH PROCESS PROCESS 1 PROCESS 2 PROCESS 3 PROCESS 4 WEIGHT
1 AY50161 C 2 PURCHASED FLANGE KIT, SAE, SPLIT, 1 1/4IN, CODE 62 - - ANCHOR FLUID POWER 20SFXO - 0000 - - - - -
2 AY51105 01 1 - FABRICATION KIT, STANDARD RAMP, 18'-6" SEE BOM 8236.6
3 121200022 C 1 ASSEMBLY ASSEMBLY, RAMP VALVE BLOCK - - - - - 0000 - - - - -
4 121200023 B 1 ASSEMBLY ASSEMBLY, RAMP CBAL VLV BLOCK - - - - - 0000 -
5 131100122 D 1 WELDMENT WELDMENT, WINCH CABLE GUARD G40.21-44W / A572 G50 - - - - #VALUE! #VALUE! #VALUE! #VALUE! 270.5
6 161100058 D 1 ROUND BAR TOP CARRIER ROLLER AISI C1018 COLD DRAWN 4.50 - - 37.63 0023 - - MACHINE ZINC 158.7
7 M10502 A 2 PURCHASED BR, MOUNTED, 4 BOLT FLANGED, 3 7/16 - - DODGE F4B-SCM-307 - 0000 - - - - 2.9
8 M10529 A 1 PURCHASED WINCH, CARRIER - - LANTEC LHS330-24x38-D4-13D-DR-SP - 0000 - - - - 2800.0
9 M10533 A 4 PURCHASED FTG, GREASE, 1/8" NPT, PTF-SS - - LINCOLN 5000 - 0000 - - - - 0.0
10 M10595 00 2 PURCHASED SHEAVE, 610MM OD, 108MM SHAFT - MCKISSICK 4300312 0000 - - - - -
11 M10607 A 2 PURCHASED SPLIT COLLAR, 4 1/2 B, 5 3/4 OD, 7/8 W G40.21-44W / A572 G50 - CLIMAX H2C-450 0000 - - - - 2.29
12 M10668 B 4 PURCHASED GREASE NIPPLE, 1/8 NPT, 90 DEGREE - - LINCOLN 205400 - 0000 - - - - 0.0
13 M10699 A 2 PURCHASED CUP, TPRD ROL BRG, 6.5 OD, 2.50 W - - TIMKEN 56650D - 0000 - - - - 4.3
14 M11287 A 4 PURCHASED CONE, TPRD ROL BRG, 4.250 B, 1.4375 W G40.21-44W - TIMKEN NA56425-SW - 0000 - - - - 3.6
15 M11654 01 1 PURCHASED SHACKLE, 1-1/8, ANCHOR BOLT, 9-1/2TON - - CROSBY 1018507 - 0000 - - - - 7.8
16 M11655 A 4 PURCHASED SHACKLE, 3/4, ANCHOR BOLT, 4-3/4TON - - CROSBY 1018507 - 0000 - - - - 2.3
17 M14009 01 2 - TURNBUCKLE, HG-228, J & J, 3/4 x 6, 5200LB Crosby 1032670 #VALUE! #VALUE! #VALUE! #VALUE! 0.7
18 N10845 A 1 PURCHASED ENCODER, HVY-DTY SEALED HOLLOW SHAFT - - DYNAPAR HS35R10007577 - 0000 - - - - 1.3
19 H15-3223-20-16 A 2 PURCHASED HOSE FTG, STR, 1-1/4, 1 CODE 62 - - PARKER 16A71-20-16 - 0000 - - - - 1.5
20 H15-070123A-16-08 01+BEINGREVISED 1 PURCHASED REDUCER, FEM 1 JIC, MALE 1/2 JIC - - PARKER 16-8 TRTXN-S - 0000 - - - -
21 H15-070401-16-REPLACE 01+BEINGREVISED 1 TEE, UNION, 1 JIC MALE AEROQUIP 2033-16-16S 1.0
22 H15-070433-12 A 1 PURCHASED TEE, 3/4, FEM SWV BRANCH JIC, MALE JIC G40.21-44W 3/4" AEROQUIP 203101-12-12S - 0000 2.5
23 H11868 1 PURCHASED VLV, CHECK, MALE 3/4 ORB, MALE 3/4 JIC PARKER DT-750-MOMF-5
24 H15-070123A-12-8 A 1 PURCHASED REDUCER, JIC 3/4 FEMALE, 1/2 MALE G40.21-44W / A572 G50 - PARKER 12-8 TRTXN-S - 0000 - - - - 0.3
25 H15-070432-08-08-REPLACE 01+BEINGREVISED 1 PURCHASED TEE, FEM SWV RUN 1/2, MALE 1/2 JIC - - PARKER 8 R6X-S - 0000
26 H15-070120-08-04 A 1 PURCHASED ADPT, MALE 1/2 JIC, MALE 1/4 ORB - - AEROQUIP 202702-4-8S 0000 - - - -
27 H15-070603-04-02 A 2 PURCHASED ADPT, BLKHD, MALE 1/4 JIC, FEM 1/8 NPT Alloy Steel AEROQUIP 2239-2-4 #VALUE! #VALUE! #VALUE! #VALUE! 0.1
28 H10315 A 1 PURCHASED - G40.21-44W - - - - 0000 - - - - 152.3
29 H10518 A 2 PURCHASED ADPT, 1/8 PIPE THREAD, 1/4 JIC MALE LONG G40.21-44W - AEROQUIP 202114-2-4S - 0000 - - - - 0.1
30 H10801 A 2 PURCAHSED CLAMP, TUBE, 1.5IN DIA, HEAVY PTFE (general) - PARKER 5381-HPP - 0000 - - - - 0.2
31 H10803 A 1 PURCHASED PLATE, COVER, 1/2IN, HEAVY - - PARKER CPH-5 - 0000 - - - -
32 HH-0750NC-0350-GR8 A 4 HARDWARE CAPSCR, HEX HD, 3/4-10UNC x 3.50, GR8 - - - - - 0000 - - - -
33 HH-0750NC-0250-GR8 A 2 HARDWARE CAPSCR, HEX HD, 3/4-10UNC x 2.50, GR8 - - - - - 0000 - - - - 0.5
34 HH-0750NC-0200-GR8 A 8 HARDWARE CAPSCR, HEX HD, 3/4-10UNC x 2.00, GR8 0000 - - - -
35 HH-0375NC-0600-GR8 A 2 HARDWARE CAPSCR, HEX HD, 3/8-16UNC X 6.00, GR8 - - - - - 0000 - - - -
36 HH-0375NC-0400-GR8 A 2 HARDWARE CAPSCR, HEX HD, 3/8-16UNC x 4.00, GR8 - - - - - 0000 - - - - 0.1
37 HH-0375NC-0200-GR8 A 2 HARDWARE CAPSCR, HEX HD, 3/8-16UNC x 2.00, GR8 - - - - - #VALUE! #VALUE! #VALUE! #VALUE! 0.0
38 HH-0375NC-0125-GR8 A 4 CAPSCR, HEX HD, 3/8-16UNC x 1.25, GR8
39 HH-0375NC-0075-GR8 A 6 HARDWARE CAPSCR, HEX HD, 3/8-16UNC x 0.75, GR8 PURCHASED - - - - 0000 -
40 HH-1250NC-0450-GR8 A 4 HARDWARE CAPSCR, HEX HD, 1 1/4-7UNC x 4.50, GR8 - - - - - 0000 - - - - 0.3
41 S10081 A 4 PURCHASED SHEAVE SEAL, 0.437 x 0.062 x 3.375 G40.21-44W - CLARK CSL7009 - 0000 - - - - 0.3
42 SH-0375NC-0100 A 4 HARDWARE CAPSCR, HEX SOC HD, 3/8-16UNC x 1.00 - - - #VALUE! #VALUE! #VALUE! #VALUE!
43 FW-0750-A A 8 HARDWARE WASHER, F, 3/4, PLAIN, TYPE A - - - - 0000 0.0
44 FW-0375-A A 13 HARDWARE WASHER, F, 3/8, PLAIN,TYPE A - - - - - 0000 - - - - 0.0
45 FW 1.25 01 8 WASHER, F, 1.25, PLAIN, TYPE A STEEL 0.160
46 LW-0750-HS 12 LOCKWASHER, 3/4, HELICAL SPRING #VALUE! #VALUE! #VALUE! #VALUE!
47 LW-0375-HS-HC A 4 LOCKWASHER, 3/8 HELICAL SPR, HIGH COLLAR - -
48 LW-0375-HS-REPLACE 01 10 HARDWARE LOCKWASHER, 3/8 HELICAL SPRING GR8 3/8" - - - 0000 0.001
49 LN-1250NC-NL-GR8 A 4 HARDWARE LOCKNUT, 1 1/4-7UNC, NYLOCK, GR8 - - - - - 0000 - - - - 0.1
50 LN-0750NC-NL-GR8 A 2 HARDWARE LOCKNUT, 3/4-10UNC, NYLOCK, GR8 - - - - - 0000 - - - - 0.2
51 LN-0375NC-NL-GR8-REPLA A 2 LOCKNUT, 3/8-16UNC, NYLOCK, GR8 0.0
52 H15-070221-08-08 REL-01 1 PURCHASED ELL 90°, FEM 1/2 JIC, MALE 1/2 JIC - - AEROQUIP 2071-08-08S - 0000

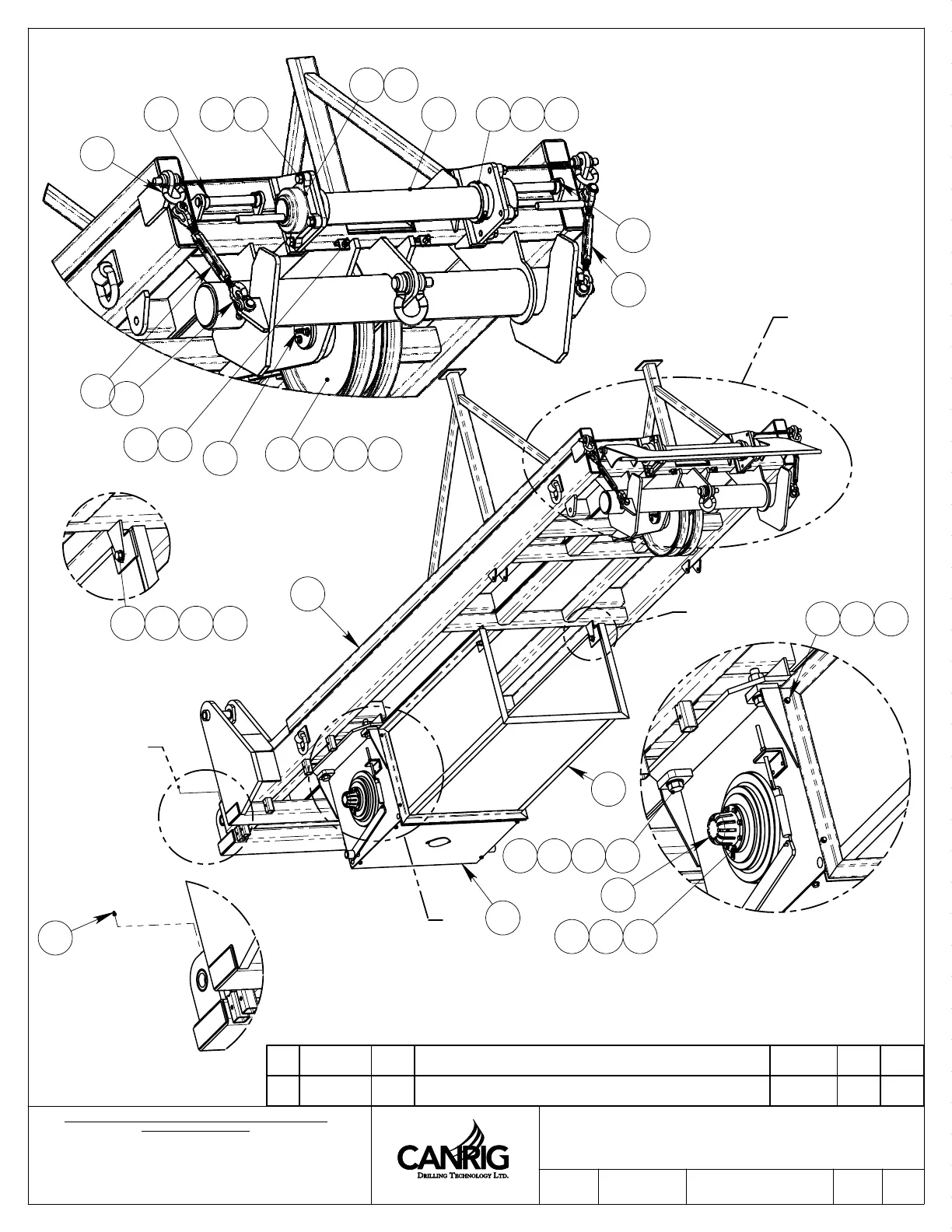

DETAIL A
SCALE 1 : 16
TRANSITION PLATE
REMOVED FOR CLARITY
17
16
17
16
3446 6 11 42 47
7 12
37
10 14
29
41
2712
13
37
DETAIL C
SCALE 1 : 16
40454549
38 48 44
18
394844
DETAIL B
SCALE 1 : 16
33 43 43 50
DETAIL D
SCALE 1 : 16
9
01 13/09/23 MZK INITIAL DESIGN - JCR AD
REV DATE BY REVISION DESCRIPTION ECN CHKD APVD
REV: DATE:
111200061 2/29/2012
ASSEMBLY, STANDARD RAMP, 18'-6"
1 OF 2 01
DRAWING NO:
