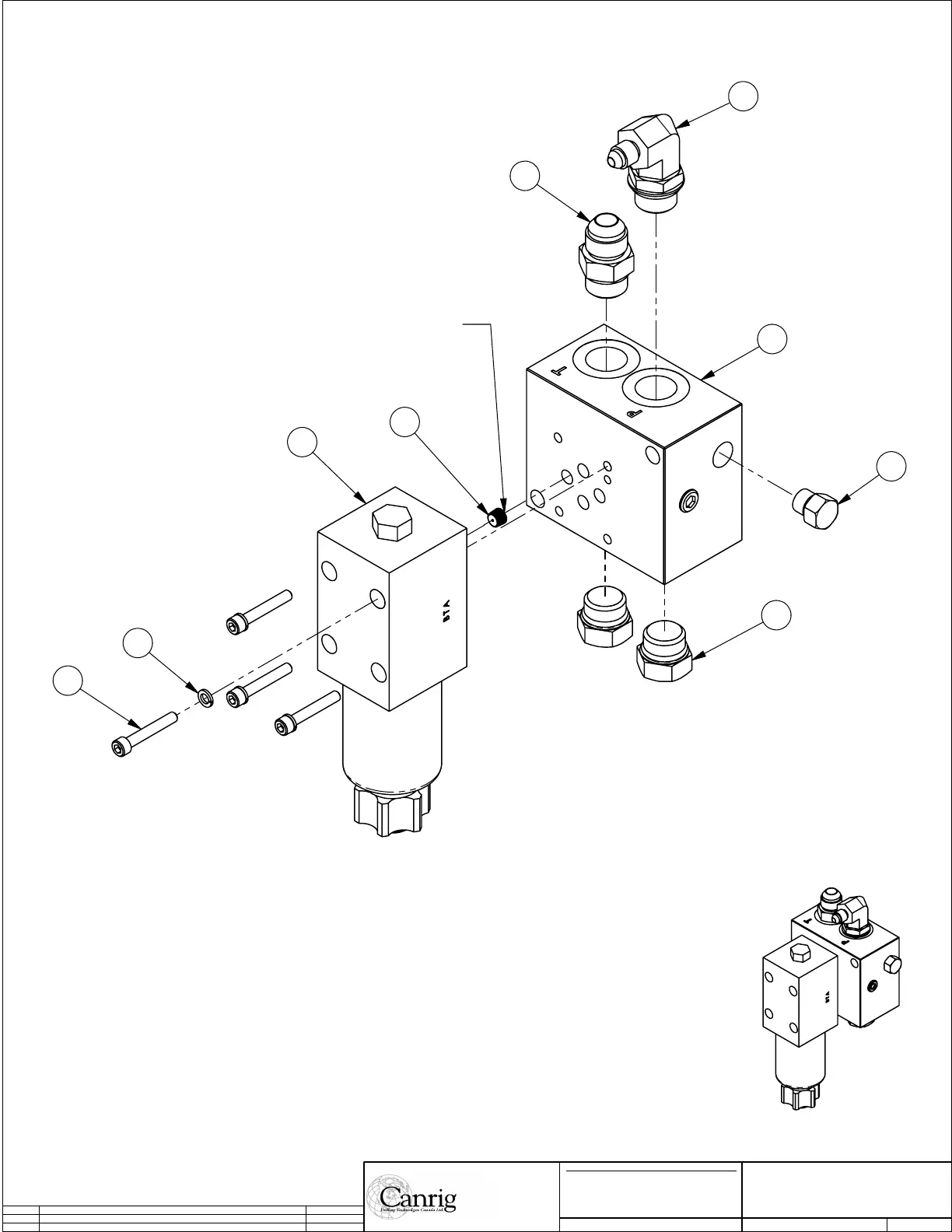

Canrig PC3000 - Drawing ID: 121100040 Rev No: A

2
3
1
5
7
6
8
FACE TO BE GRINDED
FLUSH FOR INSTALLATION
4
9
ITEM PART NUMBER REV QTY/UNIT TYPE DESCRIPTION MATERIAL STOCK SIZE MANUFACTURER MANUFACTURER PART NO LENGTH PROCESS 1 PROCESS 2 PROCESS 3 PROCESS 4
1 H10358 A 1 PURCHASED SUBPLATE, D03, RELIEF, #8 ORB PORT, STEEL G40.21-44W - SEALUM MB201-0-8S -
2 H15-070220-04-08 REL-01 1 PURCHASED ELL 90°, MALE 1/4 JIC, MALE 1/2 ORB - - AEROQUIP 2062-8-4S -
3 H15-070120-08-08 REL-01 1 PURCHASED ADAPTER, MALE 1/2 JIC, MALE 1/2 ORB - - PARKER 8 F5OX-S -
4 H15-090109A-08 REL-01 2 PURCHASED PLUG, HEX HD, 1/2 ORB STEEL - AEROQUIP 900958-8S - - - - -
5 H10321 REL-01 1 PURCHASED VLV, CONTROL, 4VP01 PROPORTIONAL - DENISON 4VP01 5 0 G24 B 1 C1
6 LW-10-HS REL-01 4 HARDWARE LOCKWASHER, #10, HELICAL SPRING - #10 - - -
7 SH-10-24-0125 REL-02 4 HARDWARE CAPSCR, HEX SOC HD, #10-24UNC x 1.25 - - -
8 158100034 DEV-01 1 PURCHASED PLUG, 1/16 NPT, .040 ORIFICE M11004 1/16 NPT PLUG - - -
9 H15-090109B-04 A 1 PURCHASED PLUG, 1/4" MALE ORB - - PARKER 4 HP5ON-S -
REV. DESCRIPTION DATE
A ADDED H15-090109B-04 AS BUILT 4/17/2008
DEV-01 RFM 7/24/2007
REV:
DATE CREATED:
121100040
24 July, 2007 12:01:42 PM
4VP01 PUMP PRESSURE CONTROLLER
SHEET 1 OF 1
A
PART NO:
CANRIG DRILLING TECHNOLOGY CANADA LIMITED © 2006
THE DRAWINGS, INFORMATION AND SUBJECT MATTER
HEREOF ARE THE CONFIDENTIAL, SOLE AND EXCLUSIVE
PROPERTY OF CANRIG DRILLING TECHNOLOGY CANADA
LTD, AND ARE NOT TO BE COPIED, REPRODUCED OR USED
IN ANY MANNER FOR ANY PURPOSE WHATSOEVER
WITHOUT WRITTEN CONSENT OR DIRECTION.
7475 51 Street SE
Calgary, Alberta, Canada, T2C 4L6
Website: www.canrig.com
Bus. (403) 237-6400
Fax. (403) 233-2667
