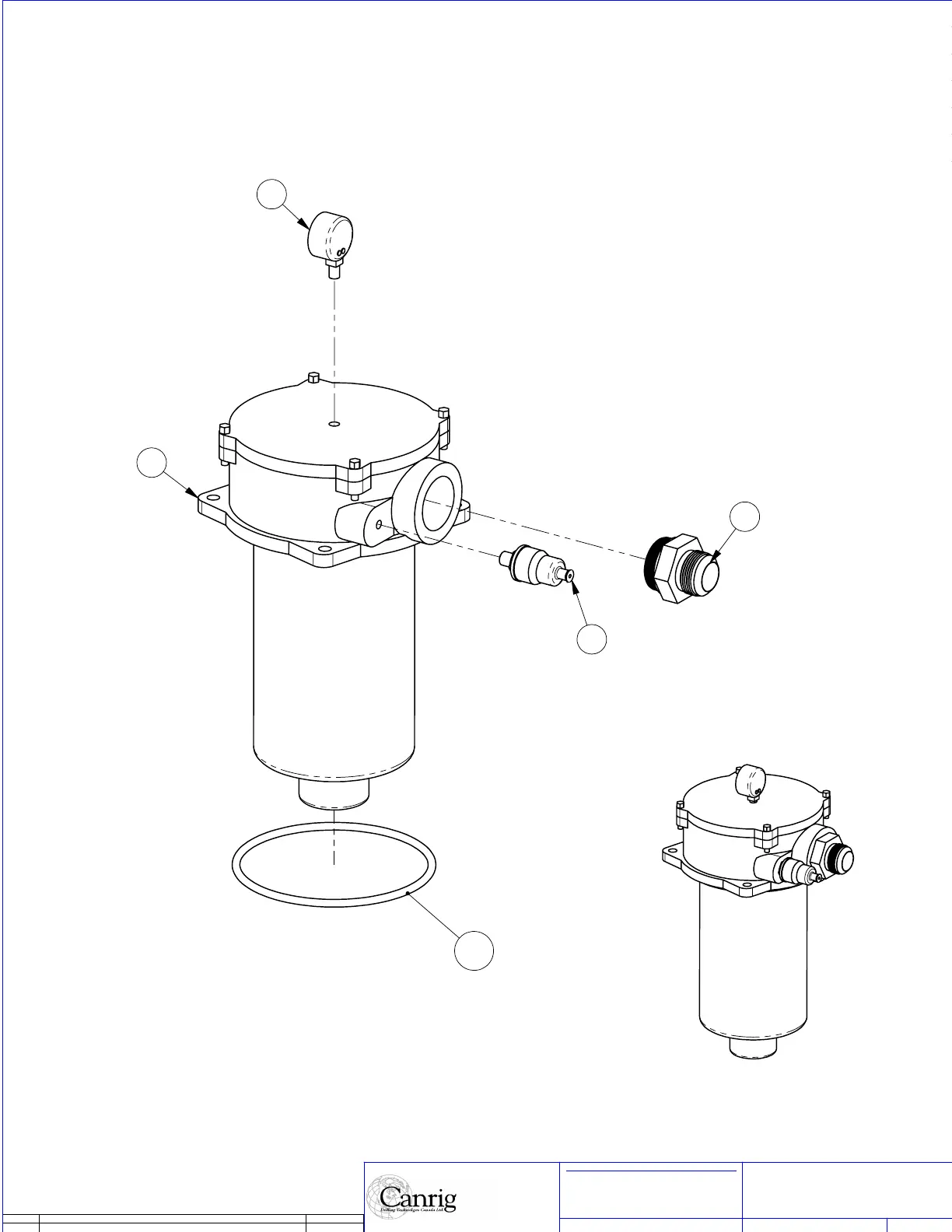

Canrig PC3000 - Drawing ID: 121900002 Rev No: DEV-01

4
3
2
1
5
ITEM PART NUMBER REV QTY/UNIT TYPE DESCRIPTION MATERIAL STOCK SIZE MANUFACTURER MANUFACTURER PART NO LENGTH PROCESS 1 PROCESS 2 PROCESS 3 PROCESS 4
1 H10344 REL-04 1 PURCHASED FILTER, LOW PRESS, 6 MICRON, SAE-24 G40.21-44W MP FILTRI MPF-400-3-A-G8-A06-H-B-VR
2 N10292 REL-02 1 PURCHASED Switch, Press, 7-25 PSI ADJ, 1/4 NPTM Material <not specified>
3 H15-070120-20-24 REL-03 1 PURCHASED ADAPTER, MALE 1-1/2 JIC, MALE 1-1/4 ORB Material <not specified> AEROQUIP 202702-24-20S
4 H10568 REL-02 1 PURCHASED GUAGE, VISUAL Material <not specified> MP FILTRI V1
5 S10117 REL-01 1 PURCHASED O-RING, 6.725 ID, .275 COSS SECTION HSN, N1206-70 - - - -
REV. DESCRIPTION DATE
DEV-01 FIRST MANUAL / ASSEMBLY ISSUE 7/30/2007
REV:
DATE CREATED:
121900002
March 21, 2007 11:08:31 AM
ASSEMBLY, FILTER
SHEET 1 OF 1
DEV-01
PART NO:
