Canrig PC3000 - Drawing ID: AY50380 Rev No: B

3
2
1
4
ITEM PART NUMBER REV QTY/UNIT TYPE DESCRIPTION MATERIAL STOCK SIZE MANUFACTURER MANUFACTURER PART NO LENGTH PROCESS PROCESS 1 PROCESS 2 PROCESS 3 PROCESS 4 WEIGHT
1 H10477 A 3 PURCHASED BODY, HOSE CLAMP, TWIN 1 IN - - STAUFF 3222-222DPP - 0000 0.2
2 H10478 A 1 PURCHASED TOP COVER, HOSE CLAMP, TWIN - - PARKER CPT-3 - 0000 0.1
3 HH-0312NC-0550-GR8 A 1 PURCHASED CAPSCR, HEX HD, 5/16-18UNC X 5.50,GR8 GR8 - - - - 0.0171
4 LN-0375NC-NL-GR8 A 1 HARDWARE LOCKNUT, 3/8-16UNC, NYLOCK, GR8 - - - - - 0000 0.0
REV. DESCRIPTION DATE
B REMOVE WASHER, CHANGE ITEM #3 TO 5/16" x 5-1/2" BOLT SIZE (ECN# CN1523) 09/27/2011
A UPDATED DRAWING FORMAT 6/10/2008
REL-01 RFM 10/31/2007
REV: DATE:
AY50380 10/31/2007

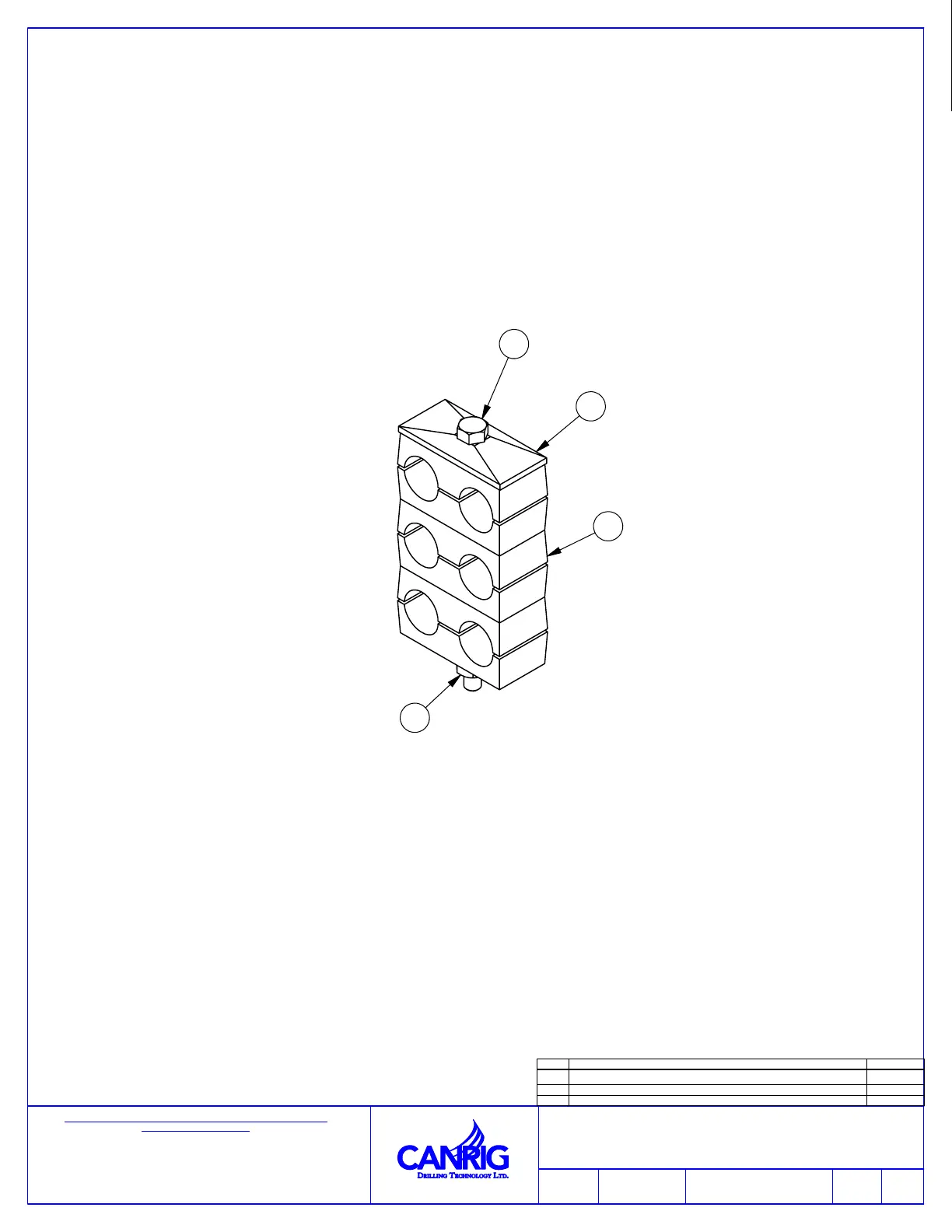

CARRIER TRIPLE HOSE CLAMP
1 OF 1 B
