DETAIL CYLINDER
CPP
8
18141410
18 14 14 11
2
22
23
1
7
1231519
3
DETAIL CYLINDER
1
5
8 25
4
15
19
21
21

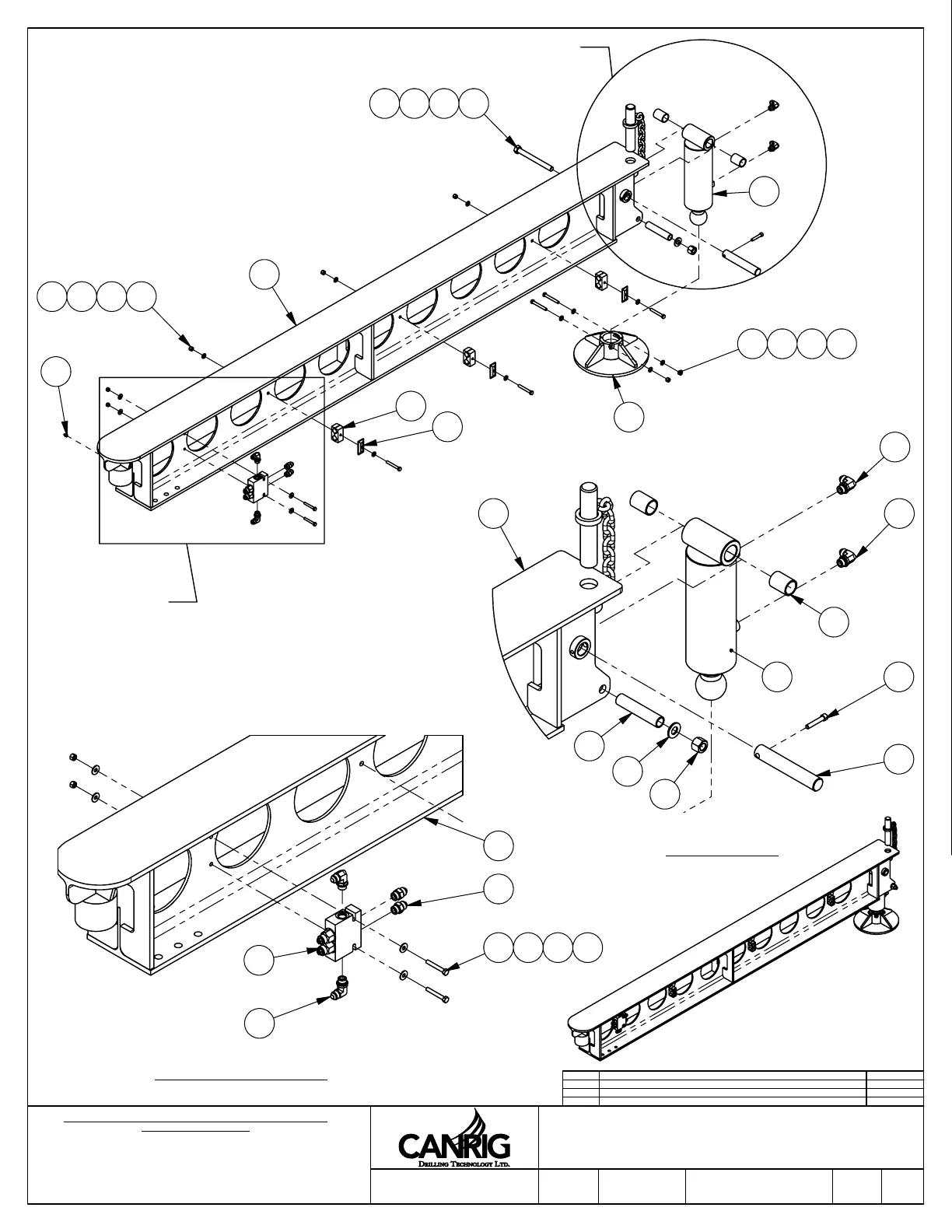

DETAIL CPP 440 ASSEMBLY
1
6
21
20
9 13 13 17
REV.
DESCRIPTION
DATE
B
UPDATED AND ADDED HARDWARE, SEE ECN # CN1403 FOR DETAILS
5/27/2010
A
UPDATED HARDWARE
9/12/2008
REL-05
FIRST MANUAL / ASSEMBLY ISSUE
8/8/2007
ITEM
PART NUMBER
REV
QTY
TYPE
DESCRIPTION
MATERIAL
1 131100050
C
1
WELDMENT
WELDMENT, PIPERACK ARM
2 131100057
B
1
WELDMENT
WELDMENT, JACK PAD
-
3 152100024
A
1
WELDMENT
SPACER, CYLINDER MOUNT
G40.21-44W
4 161100016
A
1
STG
PIN, PIPE RACK
AISI 4140 HTSR 32Rc
5
M10505
A
2
PURCHASED
BUSH, 1-1/4 X 1-1/2 X 2
6
AY50444
A
1
PURCHASED
ASSY, VLV, DUAL CBAL, #8 ORB, 3.0 PILOT
-
7
M10533
A
1
PURCHASED
FTG, GREASE, 1/8" NPT, PTF-SS
-
8
H10367
A
1
PURCHASED CYL, PIPE RACK, BORE 4, ROD 3, STRK 7
Material <not specified>
9
HH-0312NC-0250-GR8
A
2
HARDWARE CAPSCR, HEX HD, 5/16-18UNC x 2.50, GR8
-
10
HH-0375NC-0275-GR8
A
3
HARDWARE
CAPSCR, HEX HD, 3/8-16UNC x 2.75, GR8
-
11
HH-0375NC-0300-GR8
A
2
HARDWARE
CAPSCR, HEX HD, 3/8-16UNC x 3.00, GR8
-
12
HH-0750NC-0750-GR8
A
1
PURCHASED
CAPSCR, HEX HD, 3/4-10UNC X 7.50, GR8
-
13
FW-0312-A
A
4
HARDWARE
WASHER, F, 5/16, PLAIN, TYPE A
-
14
FW-0375-A
A
10
HARDWARE
WASHER, F, 3/8, PLAIN,TYPE A
-
15
FW-0750-A
A
1
HARDWARE
WASHER, F, 3/4, PLAIN, TYPE A
-
17
LN-0312NC-NL-GR8
A
2
HARDWARE
LOCKNUT, 5/16-18UNC, NYLOCK, GR8
-
18
LN-0375NC-NL-GR8
A
5
HARDWARE
LOCKNUT, 3/8-16UNC, NYLOCK, GR8
-
19
LN-0750NC-NL-GR8
A
1
HARDWARE
LOCKNUT, 3/4-10UNC, NYLOCK, GR8
-
20
H15-070120-08-08
A
2
PURCHASED
ADAPTER, MALE 1/2 JIC, MALE 1/2 ORB
-
21
H15-070220-08-08
A
4
PURCHASED
ELL 90°, MALE 1/2 JIC, MALE 1/2 ORB
-
22
H10477
A
3
PURCHASED
BODY, HOSE CLAMP, TWIN 1 IN
-
23
H10478
A
3
PURCHASED
TOP COVER, HOSE CLAMP, TWIN
-
25
SH-0375NC-0200
A
1
PURCHASED
CAPSCR, HEX SOC HD, 3/8-16UNC x 2.00
-
REV:
DATE:
121600001
3/21/2007
PIPERACK ARM
1 OF 1
B
DRAWING NO:
© 2009 CANRIG DRILLING TECHNOLOGY CANADA LIMITED
ALL RIGHTS RESERVED
7475 51 Street SE
Calgary, Alberta, Canada, T2C 4L6
Website: www.canrig.com
Bus. (403) 237-6400 Fax. (403) 233-2667
SHEET:
TITLE:
THE DRAWINGS, INFORMATION AND SUBJECT MATTER HEREOF
ARE THE CONFIDENTIAL, SOLE AND EXCLUSIVE PROPERTY OF
CANRIG DRILLING TECHNOLOGY CANADA LTD, AND ARE NOT
TO BE COPIED, REPRODUCED, OR USED IN ANY MANNER FOR
ANY PURPOSE WHATSOEVER WITHOUT WRITTEN CONSENT
OR DIRECTION.
DRAWN BY:
KJH
