Canrig PC3000 - Drawing ID: 121300033 Rev No: B

3
4
4
2
1
REV. DESCRIPTION DATE
B H15-070120-08-08 (ITEM 4) WAS ADDED TO THIS ASSEMBLY, SEE ECN# CN1285. 14-May-2009
A UPDATED DRAWING FORMAT 6/16/2008
REL-01 RFM 10/31/2007
ITEM PART NUMBER REV QTY TYPE DESCRIPTION MATERIAL
1 H10366 B 1 PURCHASED CYL, SAFETY PIN, BORE 1.75, ROD 1.0, ST 2.5 -
2 M10533 A 1 PURCHASED FTG, GREASE, 1/8" NPT, PTF-SS -
3 M10668 A 1 PURCHASED GREASE NIPPLE, 1/8 NPT, 90 DEGREE -
4 H15-070120-08-08 A 2 PURCHASED ADAPTER, MALE 1/2 JIC, MALE 1/2 ORB -
REV: DATE:
121300033 31-Oct-2007

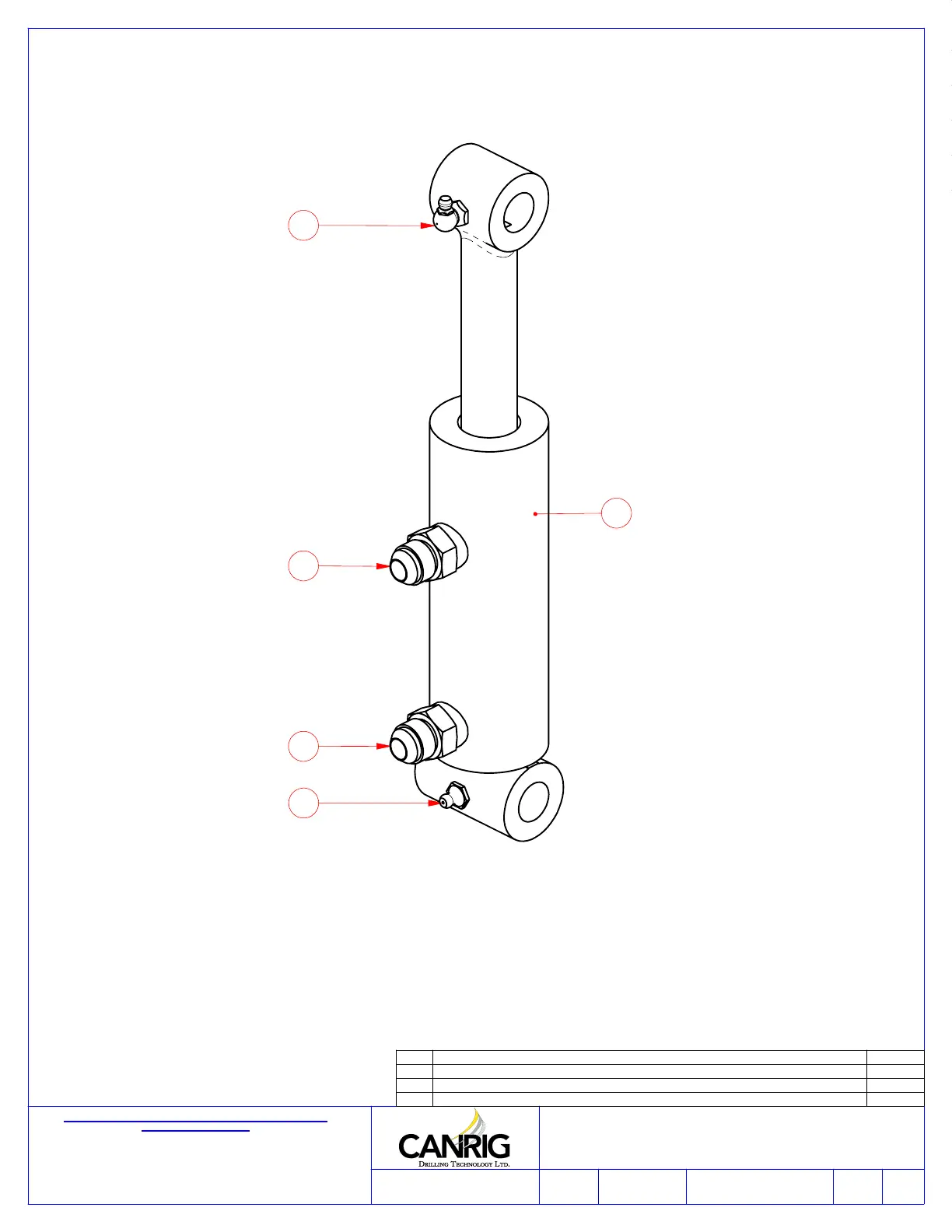

ASSY, PC3000 SAFETY PIN CYLINDER
1 OF 1 B
DRAWING NO:
