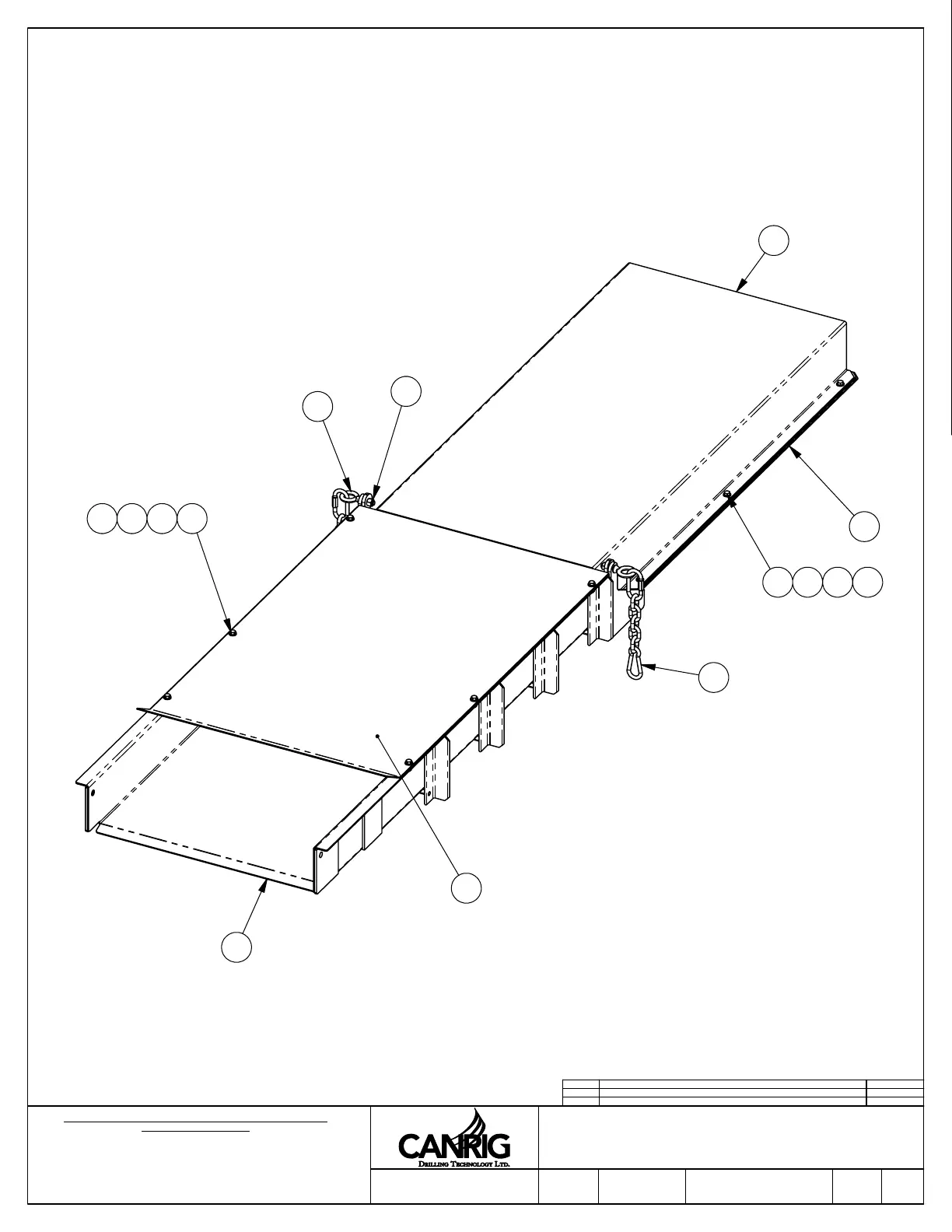

Canrig PC3000 - Drawing ID: AY50320 (1 of 2) Rev No: B

4
2
10 7 7 8
9778
1
5
3
6
11
REV. DESCRIPTION DATE
B ADDED 9/16" HING HOLE TO PAN, SEE ECN # CN1399 5/19/2010
REL-01 RFM 10/26/2007
ITEM PART NUMBER REV QTY TYPE DESCRIPTION MATERIAL
1 131100144 B 1 WELDMENT WELDMENT, PLUMBING SPEAR HINGE SUPPORT PAN -
2 131100168 C 1 WELDMENT WELDMENT,GORETRAC PAN EXTENSION
3 121100044 A 2 ASSEMBLY ASSY, CHAIN, GORETRAC PAN -
4 141101075 B 1 PLATE GUARD, GORETRACK G40.21-44W
5 141101076 B 1 PLATE CAP, GORETRACK GUARD G40.21-44W / A572 G50
6 M19-4012-010 A 2 HARDWARE EYEBOLT, SHLD TYPE, 1/2-13UNC X 1 1/2 -
7 FW-0375-A A 24 HARDWARE WASHER, F, 3/8, PLAIN,TYPE A -
8 LN-0375NC-NL-GR8 A 12 HARDWARE LOCKNUT, 3/8-16UNC, NYLOCK, GR8 -
9 HH-0375NC-0100-GR8 A 6 HARDWARE CAPSCR, HEX HD, 3/8-16UNC x 1.00, GR8 -
10 HH-0375NC-0125-GR8 A 6 HARDWARE CAPSCR, HEX HD, 3/8-16UNC x 1.25, GR8 -
11 LN-0500NC-NL-GR8 A 2 HARDWARE LOCKNUT, 1/2-13UNC, NYLOCK, GR8 -
REV: DATE:
AY50320 10/18/2007
GORETRAC PAN ASSEMBLY
1 OF 2 B
DRAWING NO:
© 2009 CANRIG DRILLING TECHNOLOGY CANADA LIMITED
ALL RIGHTS RESERVED
7475 51 Street SE
Calgary, Alberta, Canada, T2C 4L6
Website: www.canrig.com
Bus. (403) 237-6400 Fax. (403) 233-2667
SHEET:
TITLE:
THE DRAWINGS, INFORMATION AND SUBJECT MATTER HEREOF
ARE THE CONFIDENTIAL, SOLE AND EXCLUSIVE PROPERTY OF
CANRIG DRILLING TECHNOLOGY CANADA LTD, AND ARE NOT
TO BE COPIED, REPRODUCED, OR USED IN ANY MANNER FOR
ANY PURPOSE WHATSOEVER WITHOUT WRITTEN CONSENT
OR DIRECTION.
DRAWN BY:
-
