Canrig PC3000 - Drawing ID: 121100202 Rev No: A

1
2 3 4
ITEM PART NUMBER REV QTY/UNIT TYPE DESCRIPTION MATERIAL STOCK SIZE MANUFACTURER MANUFACTURER PART NO LENGTH PROCESS PROCESS 1 PROCESS 2 PROCESS 3 PROCESS 4 WEIGHT
1 141101441 A 1 PLATE GUARD, COOLER AND HOSE G40.21-44W 1/4" - 0005 39.6
2 HH-0375NC-0100-GR8 A 4 HARDWARE CAPSCR, HEX HD, 3/8-16UNC x 1.00, GR8 - - - - - 0000 - - - - 0.1
3 LW-0375-HS A 4 HARDWARE LOCKWASHER, 3/8 HELICAL SPRING - - - - - 0000 - - - - 0.0
4 FW-0375-A A 4 HARDWARE WASHER, F, 3/8, PLAIN,TYPE A - - - - - 0000 - - - - 0.0
REV. DESCRIPTION DATE
A RFM, SEE ECN# CN1276 FOR FURTHER DETAIL 2/25/2009
REV: DATE:
121100202 2/25/2009

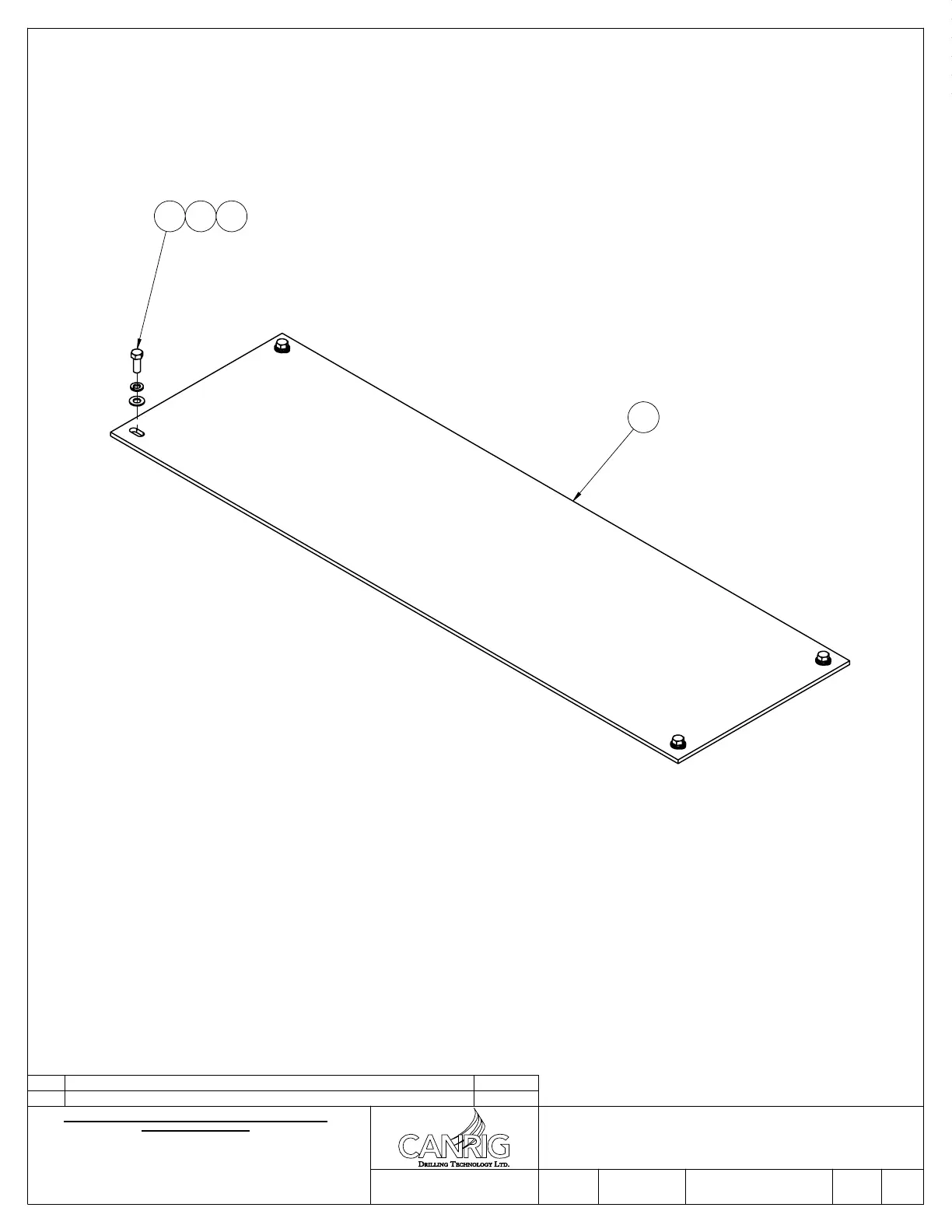

GUARD ASSY, COOLER AND HOSE
1 OF 1 A
DRAWING NO:
