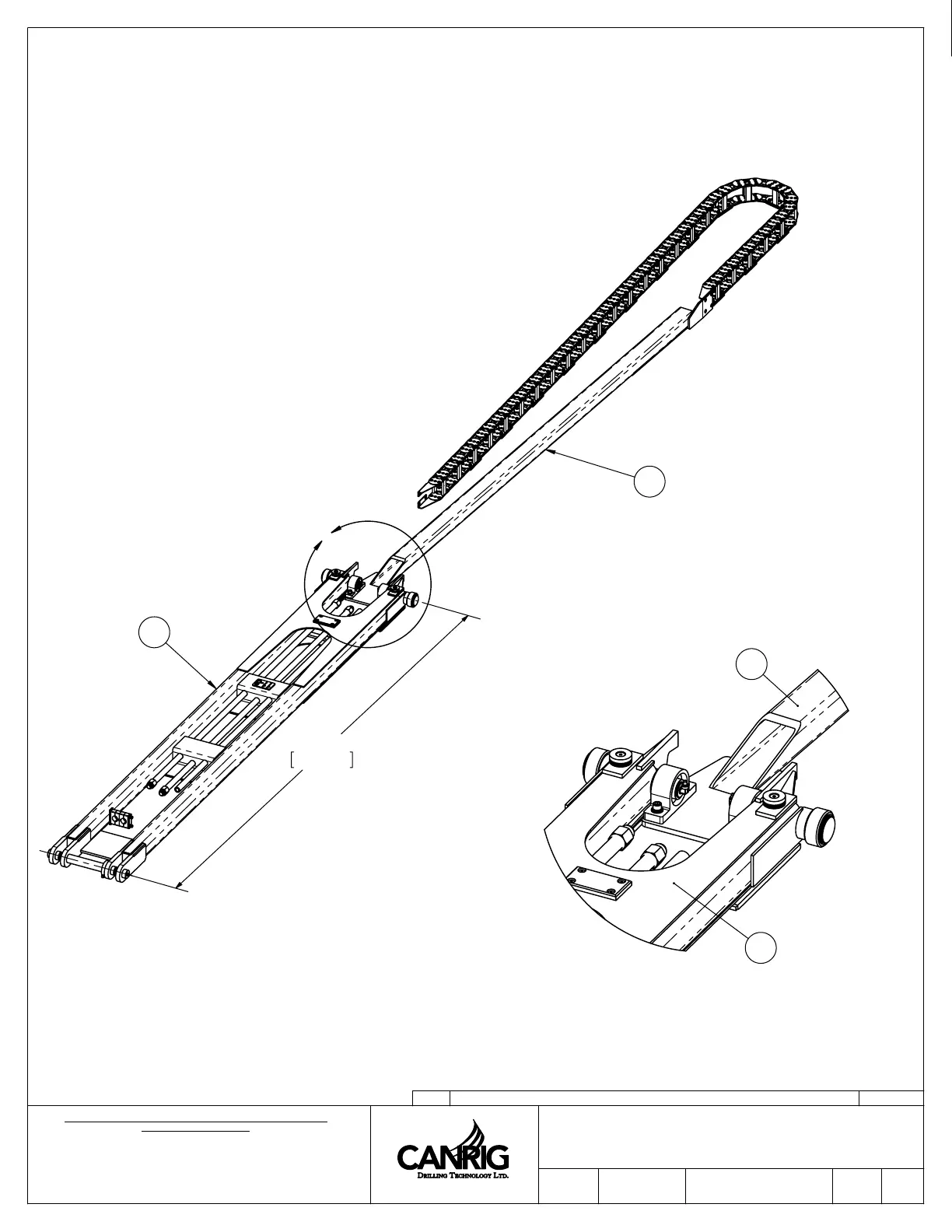

Canrig PC3000 - Drawing ID: 111400042 Rev No: 01

11'-8"
3556.74
A
2
1
ITEM PART NUMBER REV QTY/UNIT TYPE DESCRIPTION MATERIAL STOCK SIZE MANUFACTURER MANUFACTURER PART NO LENGTH PROCESS PROCESS 1 PROCESS 2 PROCESS 3 PROCESS 4 WEIGHT
2 121100283 01 1 SUB ASSEMBLY ASSY, SPEAR W/GORTRAC - - 0000 - - - - 241.26252942 Lbs.
1 121100301 01 1 SUB ASSEMBLY ASSY, 11'-8" LIFT ARM - - 0000 781.87122758 Lbs.
DETAIL A
SCALE 1 : 10
1
2
REV. DESCRIPTION DATE
REV: DATE:
111400042 13/09/19
ASSY, 11'-8" LIFT ARM PC3000
1 OF 1 01
DRAWING NO:
© 2010 CANRIG DRILLING TECHNOLOGY CANADA LIMITED
ALL RIGHTS RESERVED
SHEET:
TITLE:
THE DRAWINGS, INFORMATION AND SUBJECT MATTER HEREOF
ARE THE CONFIDENTIAL, SOLE AND EXCLUSIVE PROPERTY OF
CANRIG DRILLING TECHNOLOGY CANADA LTD, AND ARE NOT
TO BE COPIED, REPRODUCED, OR USED IN ANY MANNER FOR
ANY PURPOSE WHATSOEVER WITHOUT WRITTEN CONSENT
OR DIRECTION.
DRAWN BY:
MZK
