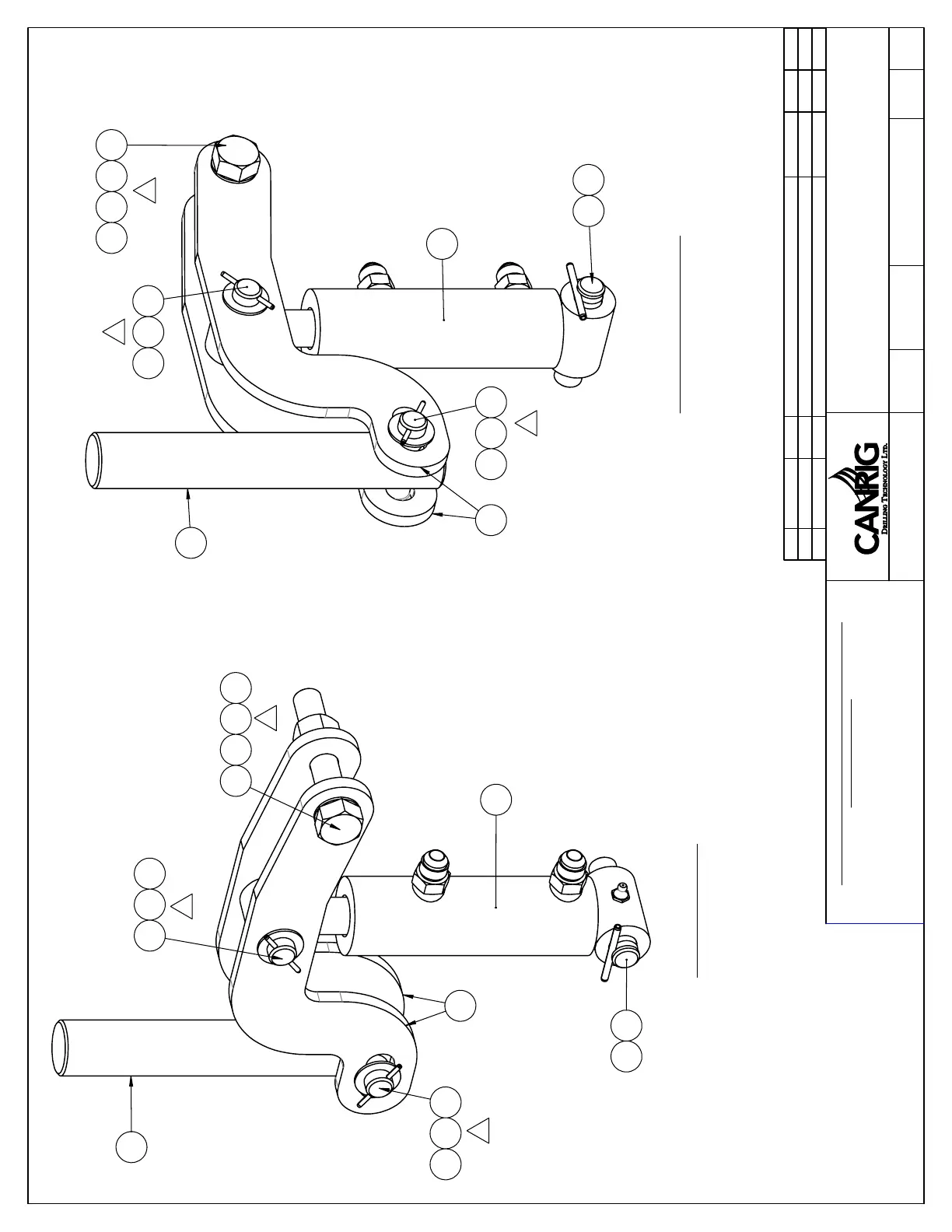

Canrig PC3000 - Drawing ID: 121300064 Rev No: B

9
?
4 5
OFF DRILLER SIDE
6
B
B
B
728
728
1223
9
10
45
DRILLER SIDE
6
B
B
B
728
7 2 8
1 2 2 3
B
13/04/01
RSP
CHANGED WASHER TO M11154
2074
MZK
JCR
A
09/05/20
RFM
REV
DATE
BY
REVISION DESCRIPTION
ECN
CHKD
APVD
ITEM
PIN DOWN POSITION/QTY.
DESCRIPTION
MATERIAL
CANRIG PART No.
1
1
CAPSCR, HEX HD, 3/4-10UNC x 4.50, GR 8
HH-0750NC-0450- GR8
2
4
BUSH, MACH, 3/4ID x 1 1/4OD X .075THK, 1
G40.21-44W
M11154
3
1
LOCKNUT, 3/4-10UNC, NYLOCK, GR8
-
LN-750NC-NL
4
1
SAFETY PIN CYL. BASE PIN
AISI 4140
161100091
5
1
SPR PIN, SLOTTED, 0.1875 x 2.00 LG
-
M10585
6
2
SAFETY PIN ARM
G40.21-44W / A572
G50
141100319
7
2
PIN, W/HEAD, .75 x 2.56 WL, SAFETY
ROLLED BAR 1.0 x
2.88, 4140 HTSR (
161100089
8
2
SPR PIN, SLOTTED, 0.125 X 1.75 LG
STEEL
M10982
9
1
SAFETY PIN
AISI 4140
161100005
10
1
ASSY, SAFETY PIN CYLINDER
-
121300033
B
1 OF 1
ASSY, SAFETY PIN, CARRIER
3/30/2009
121300064
REV:
7475 51 Street SE
Calgary, Alberta, Canada, T2C 4L6
Website: www.canrig.com
Bus. (403) 237-6400 Fax. (403) 233-2667
THE DRAWINGS, INFORMATION AND SUBJECT MATTER HEREOF
ARE THE CONFIDENTIAL, SOLE AND EXCLUSIVE PROPERTY OF
CANRIG DRILLING TECHNOLOGY CANADA LTD, AND ARE NOT
TO BE COPIED, REPRODUCED, OR USED IN ANY MANNER FOR
ANY PURPOSE WHATSOEVER WITHOUT WRITTEN CONSENT
OR DIRECTION.
© 2009 CANRIG DRILLING TECHNOLOGY CANADA LIMITED
ALL RIGHTS RESERVED
SHEET:
DRAWN BY:
DATE:
TITLE:
DRAWING NO:
TLK
