torque for the winch cable clamp bolts is 110 ft–lbs (Figure 6-16).

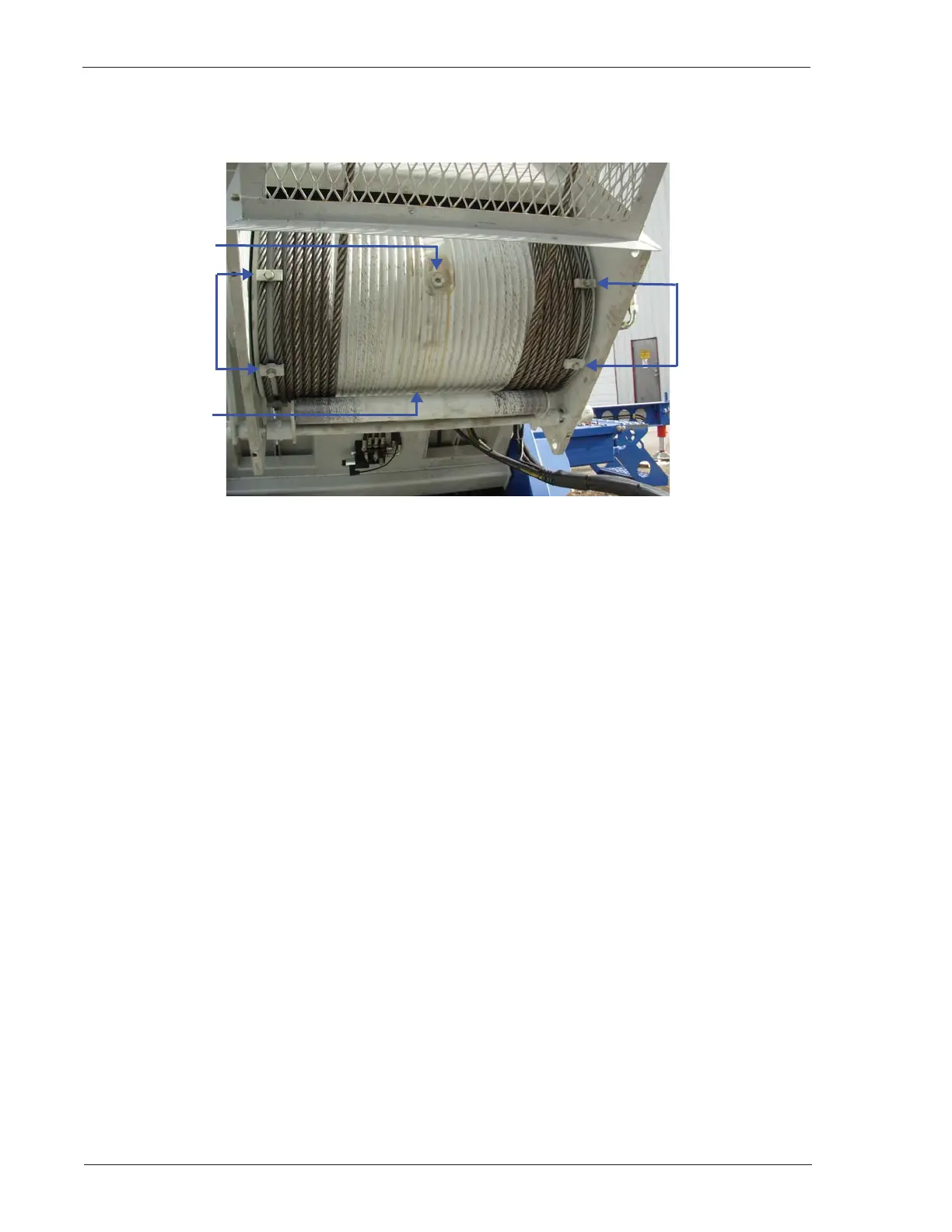

Figure 6-16: Carrier Lift Winch
Adjust Drum Bearing
The Outboard Bearing Group requires endplay adjustment. Check endplay every 1000 operating hours or
six (6) months, whichever occurs first.
Tighten the adjusting nut to removje all endplay in the bearings, then loosen the adjusting nut ¼ turn. This
will give the required 0.020” – 0.030” bearing endplay. Refer to the winch manual for details.
Level Plug
Drain Plug
Cable Clamp
Bolts
(6 places)
Cable Clamp
Bolts
(6 places)
