Canrig PC3000 - Drawing ID: 121300066 Rev No: B

6 7 7 8
1
2
3 4 5 4
REV. DESCRIPTION DATE
B
CHANGE ORIENTATION OF DOG LEG BOLTS (ECN# CN1523)
27-Sept-2011
A RFM 14-May-2009
ITEM PART NUMBER REV QTY TYPE DESCRIPTION MATERIAL
1 131100152 C 1 WELDMENT WELDMENT,OVERSHOOT DOG -
2 141100315 B 2 PLATE OVERSHOOT DOG
G40.21-44W /
A572 G50
3 HH-0750NC-0300-GR8 A 2 HARDWARE CAPSCR, HEX HD, 3/4-10UNC X 3.00, GR8 -
4 FW-0750-A A 4 HARDWARE WASHER, F, 3/4, PLAIN, TYPE A -
5 LN-0750NC-NL-GR8 A 2 HARDWARE LOCKNUT, 3/4-10UNC, NYLOCK, GR8 -
6 HH-0625NC-0200-GR8 A 8 HARDWARE CAPSCR, HEX HD, 5/8-11UNC x 2.00, GR8 GR8
7 FW-0625-A A 16 HARDWARE WASHER, F, 5/8, PLAIN, TYPE A -
8 LN-0625NC-NL-GR8 A 8 HARDWARE LOCKNUT, 5/8-11UNC, NYLOCK, GR8 -
REV: DATE:
121300066 3/30/2009

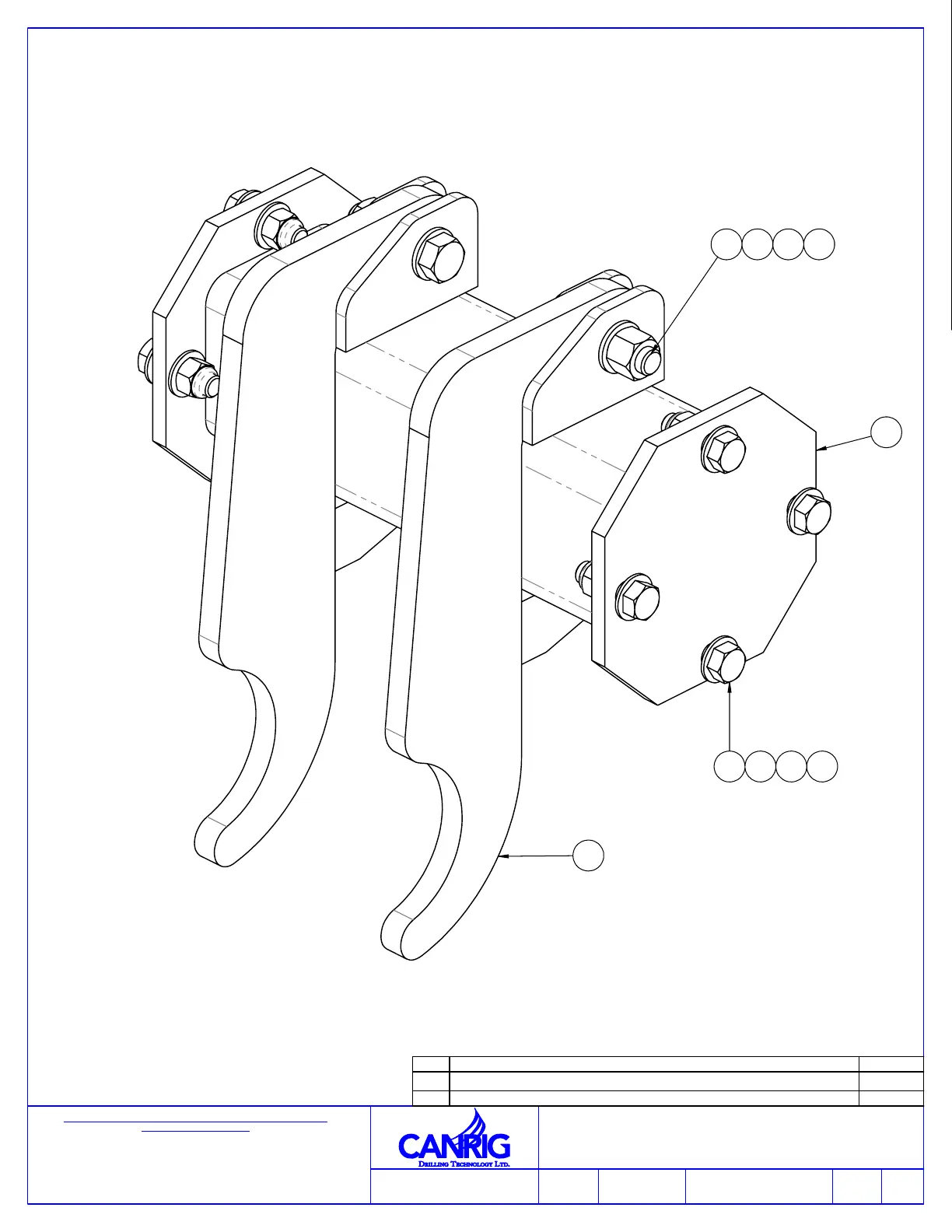

ASSY, OVERSHOOT DOG, CARRIER
1 OF 1 B
DRAWING NO:
© 2009 CANRIG DRILLING TECHNOLOGY CANADA LIMITED
ALL RIGHTS RESERVED
7475 51 Street SE
Calgary, Alberta, Canada, T2C 4L6
Website: www.canrig.com
Bus. (403) 237-6400 Fax. (403) 233-2667
SHEET:
TITLE:
THE DRAWINGS, INFORMATION AND SUBJECT MATTER HEREOF
ARE THE CONFIDENTIAL, SOLE AND EXCLUSIVE PROPERTY OF
CANRIG DRILLING TECHNOLOGY CANADA LTD, AND ARE NOT
TO BE COPIED, REPRODUCED, OR USED IN ANY MANNER FOR
ANY PURPOSE WHATSOEVER WITHOUT WRITTEN CONSENT
OR DIRECTION.
DRAWN BY:
TLK
