supported, remove the wedges to allow for control of the pipe.

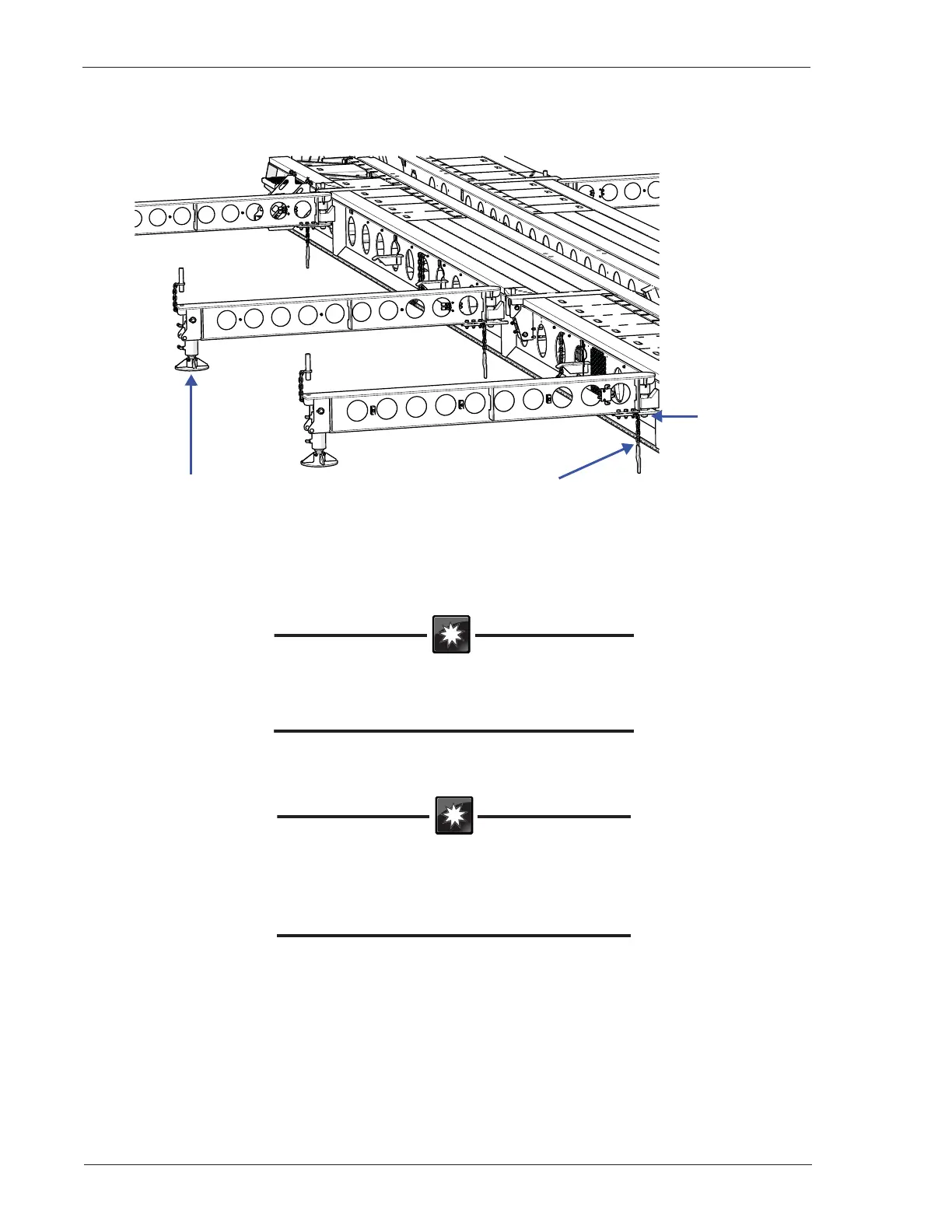

Figure 3-3: Pipe Racks
The pipe rack hydraulic legs are operated from the control console or from the wireless terminal.
WARNING!
Maximum capacity of each pipe rack
is 20,000 lbs.
Caution
Keep feet out from under pipe rack leg
while swinging the pipe rack out from or into
transport position.
Ball Mount
Cylinder Swing Wedge
Pipe Rack Hydraulic Leg
