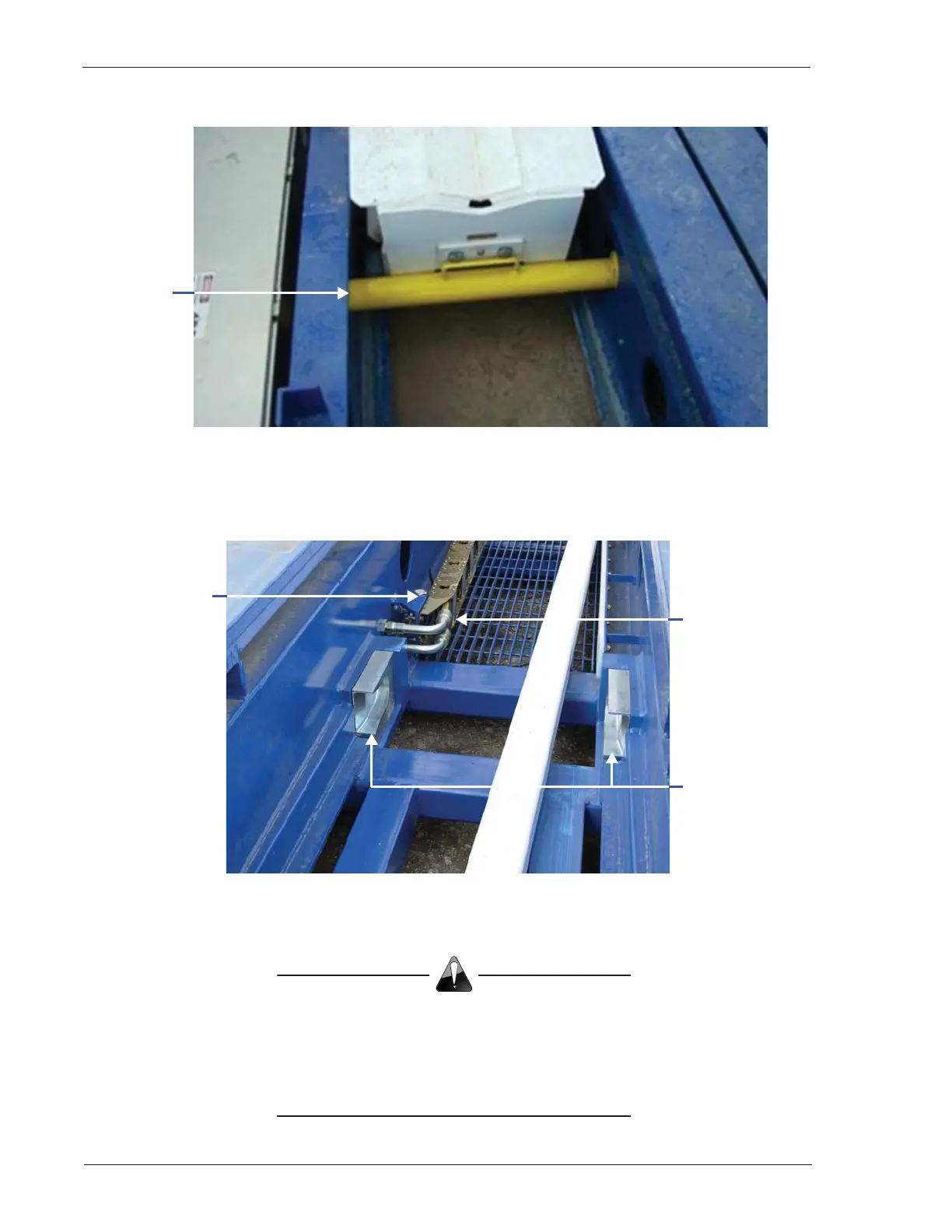

PC3000 with 26" Deck (PC3000-26) User’s Manual
6-2 Document ID 13-003 v 2.0
Figure 6-1: Safety Stop Bar in Place
2. Inspect ramp, carrier rollers guides, pivot pockets (Figure 6-2), skate groove, indexers, kickers, stop
pins, and Gortrac pan. Remove any dirt or debris.
Figure 6-2: Pivot Pockets
Caution
The Gortrac pan and extension MUST be kept
clear of debris, mud, snow and ice. The Gortrac
pan travels back and forth in this area and can
be damaged if it cannot move freely.
Carrier
Proximity
Switch
Carrier
Hydraulics
Bulkhead
Pivot Pockets
