Maintanance, Service, and Troubleshooting
Canrig Drilling Technology Ltd. 6-7

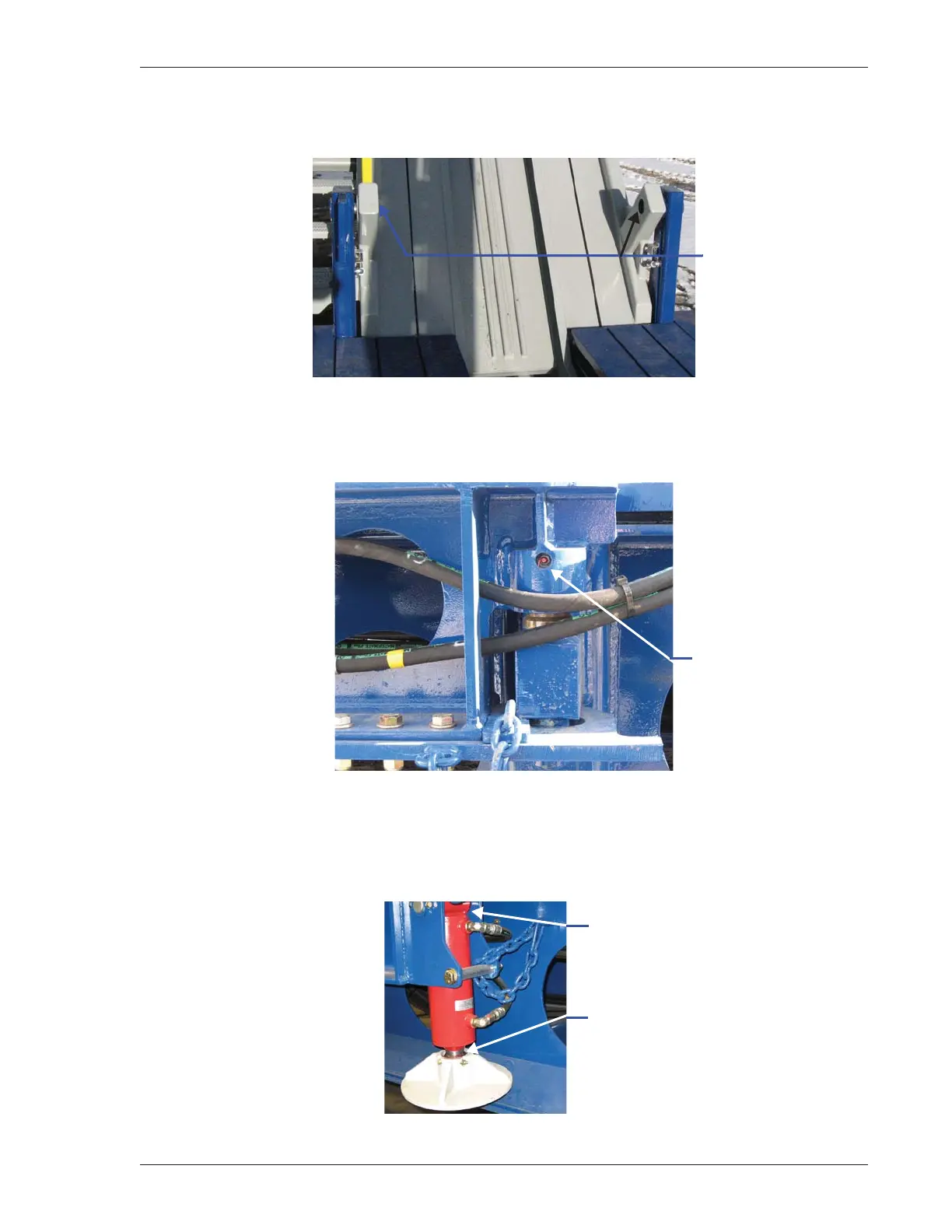

• Monthly, grease the ramp pivot (Figure 6-10).
Figure 6-10: Ramp Pivot Grease Points
• Monthly, grease the pipe rack ball sockets (Figure 6-11).
Figure 6-11: Pipe Rack Ball Socket Grease Points
• Monthly, grease the pipe rack hydraulic leg cylinder (Figure 6-12).
• Annually, remove the foot of the pipe rack hydraulic leg, clean the socket and ball, grease
and re–assemble.
Figure 6-12: Hydraulic Leg Grease Points
Grease Points
Grease Points
Grease Point
Foot Socket and Ball
