Chroma A620028 - Page 142

Programmable DC Power Supply (with Solar Array Simulation) 62000H Series
Operating & Programming Manual
3-94

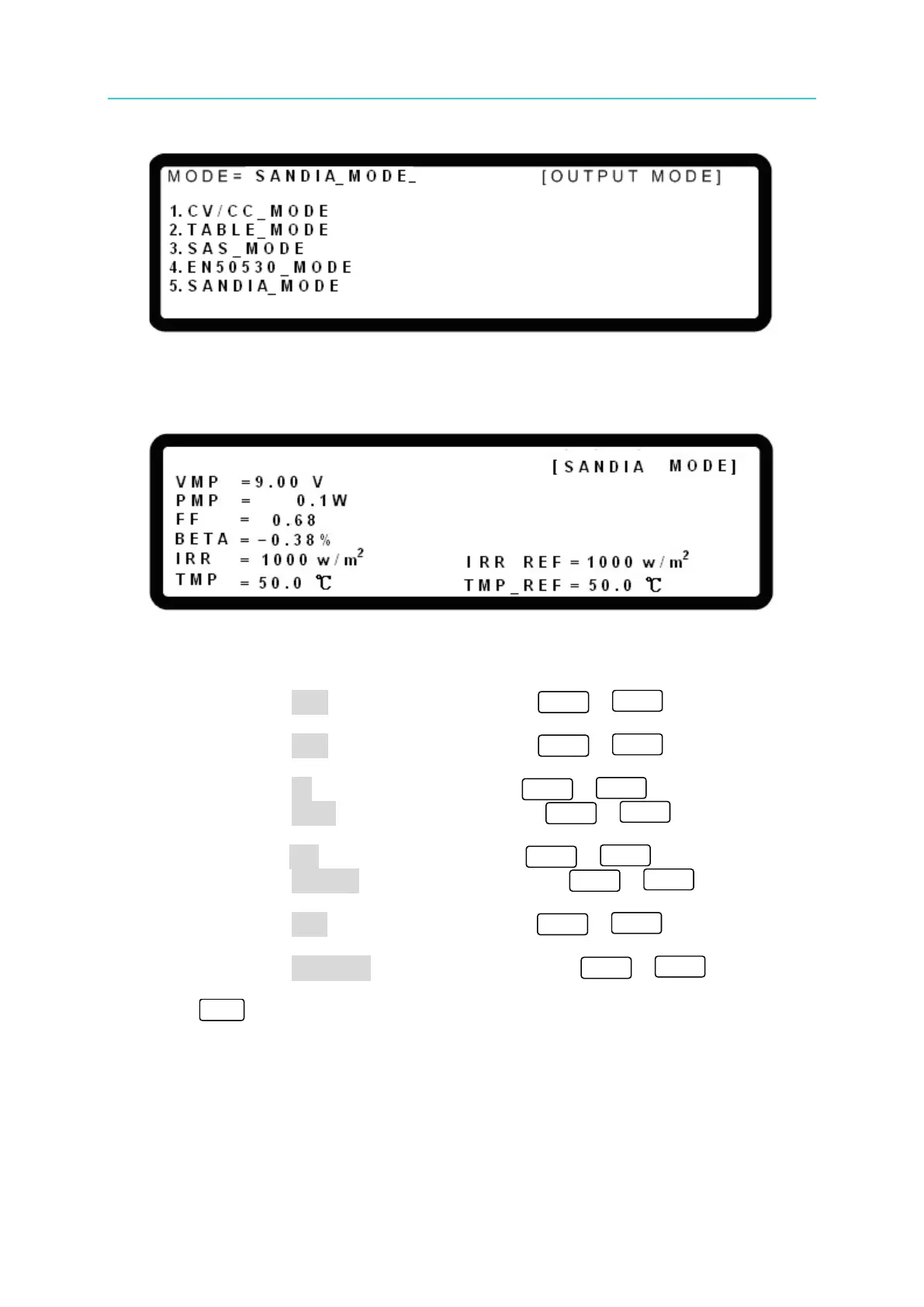

Figure 3-169
In SANDIA _MODE the display shows:
Figure 3-170
Procedure for setting the SANDIA_MODE parameters:
1. Move the cursor to VMP and use the numeric keys ( -
9
) to set the
maximum power voltage.
2. Move the cursor to PMP and use the numeric keys ( -
9
) to set the
maximum power.
3. Move the cursor to FF and use the numeric keys ( -
9
) to set the fill factor.
4. Move the cursor to BETA and use the numeric keys ( -
9
) to set the voltage
temperature coefficient.
5. Move the cursor to IRR and use the numeric keys ( -
9
) to set the irradiation.
6. Move the cursor to IRR REF and use the numeric keys ( -
9
) to set the
irradiation reference.
7. Move the cursor to TMP and use the numeric keys ( -
9
) to set the
temperature.
8. Move the cursor to TMP_REF and use the numeric keys ( -
9
) to set the
temperature reference.
9. Press “
ON/OFF
” to display the confirmation window as shown in Figure 3-171.
