Chroma A620028 User Manual

Manual Operation
3-95

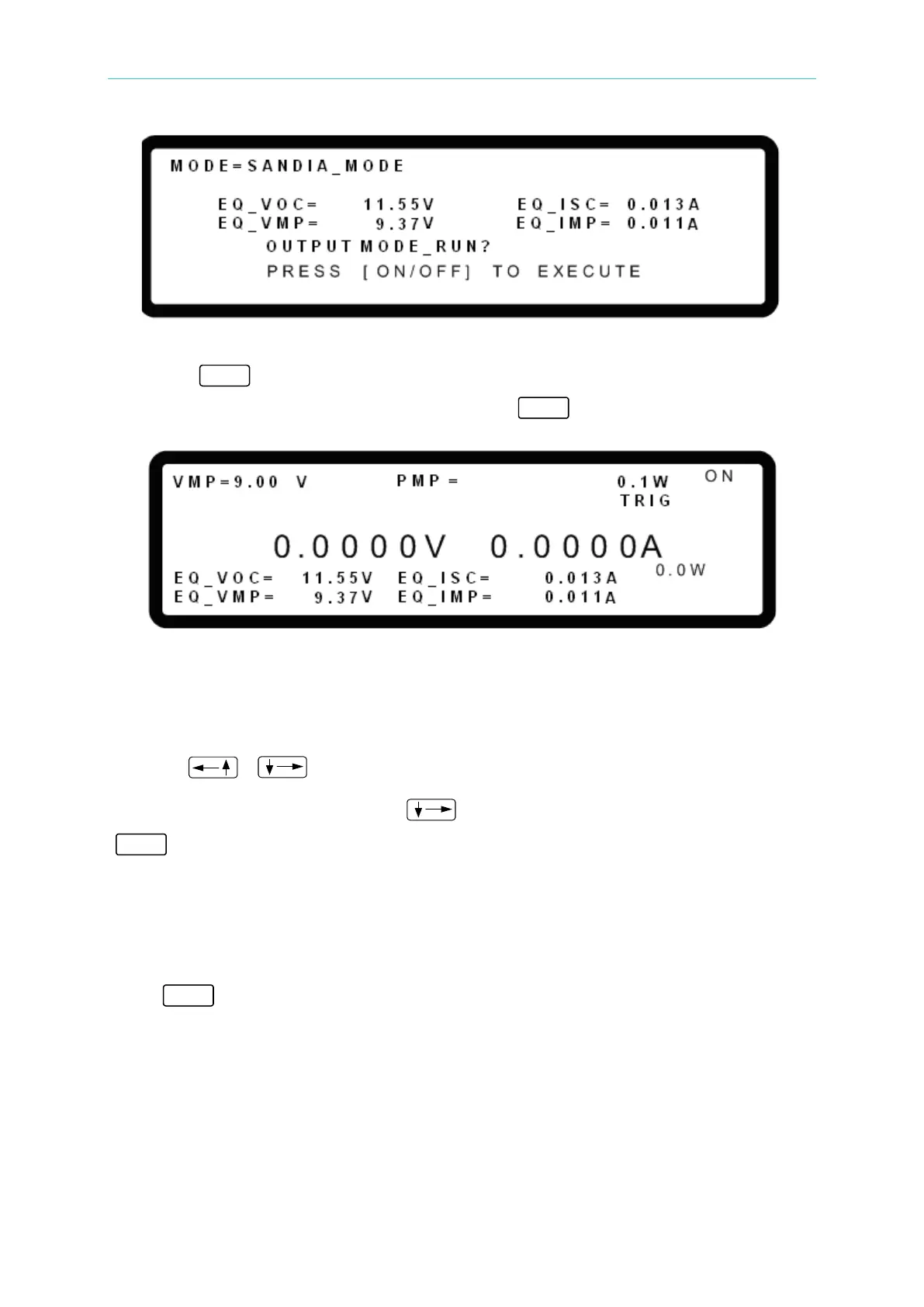

Figure 3-171
10. Press “
ON/OFF
” again to start program execution. The SANDIA_MODE main screen will
display as shown in Figure 3-172. To quit, press “ ” to return to the MAIN PAGE.
Figure 3-172
Figure 3-172 shows the screen during SANDIA_MODE output. The EQ_VOC, EQ_VMP,
EQ_ISC and EQ_IMP are the actual operating points that are calculated based on the
settings of VMP and PMP using the built-in formula.
Use the “
” “ ” keys to change the VMP and PMP parameters. When the VMP
or PMP parameters are changed, use “
” to move the cursor to TRIG and press
“ ” to confirm the change. The IV curve and EQ_VOC, EQ_VMP, EQ_ISC and EQ_IMP
parameters will be immediately updated.
3.3.9.6 Error Message
If invalid parameters are entered in SAS_MODE, the screen will display an error message.
Press “ ” to return to OUTPUT_MODE and re-enter the correct parameters.
EXIT
ENTER
EXIT
