Manual Operation
3.3.2.1 VOLTAGE LIMIT SETTING

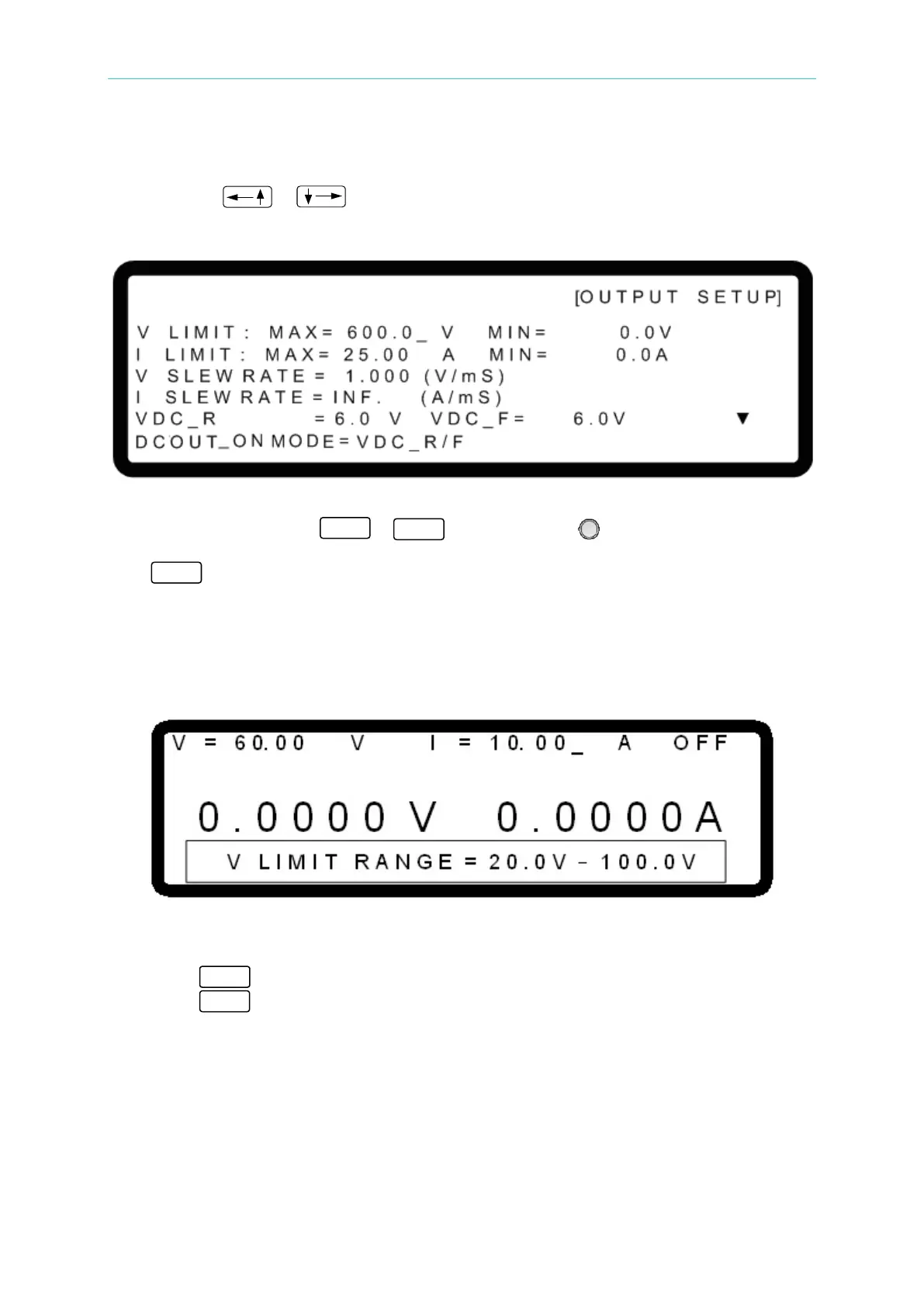

1. Use the “ ”, “ ” keys to move the cursor to the column to be set as shown in
Figure 3-16.
Figure 3-16
2. Use the numeric keys (
- ) or the “Rotary” ( ) knob to set the value.
Use this option to narrow down the range by setting the MIN and MAX values. When
“
” is pressed to set the output voltage, the DC Power Supply sets the voltage
within the range of [MIN value ≤ user-defined value ≤ MAX value]. For example, if the V
LIMIT is set to MAX=100V, MIN=20V and the setting exceeds the output voltage set by
the user (e.g. 110V), the BUZZER will beep one time (if the BUZZER is set to ON) and
the main screen will automatically prompt a warning message as shown in Figure 3-17
below.
Figure 3-17
3. Press “ ” to confirm.
4. Press “
” to return to the MAIN PAGE.
