Figure 4-5
Ex. 3: Use a PROGRAM to form an infinite loop
Set PROG #1 to NEXT TO PROG NO =1, RUN COUNT=1

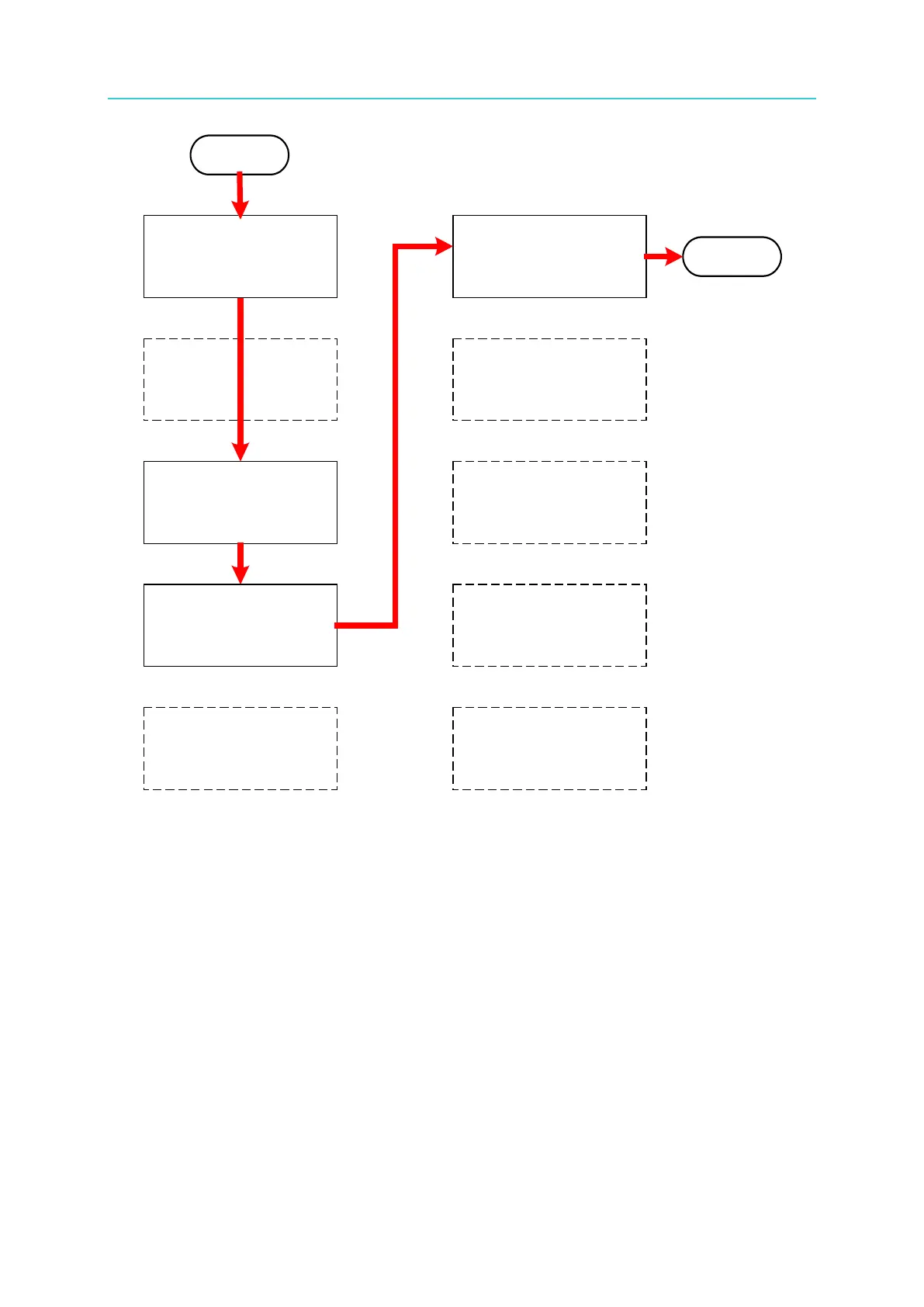

The program execution flow is shown in Figure 4-6.
A3: Execution steps:
(1) When all PROG #1 SEQUENCES are done, jump to PROG #1.
(2) Rerun step (1).
(3) Form an infinite loop.
PROG #1
PROG CHAIN NO = 3
SEQ 1_1 ~ SEQ 1_10
PROG #2
PROG CHAIN NO = 0
SEQ 2_1 ~ SEQ 2_10
PROG #3
PROG CHAIN NO = 4
SEQ 3_1 ~ SEQ 3_10
PROG #4
PROG CHAIN NO = 6
SEQ 4_1 ~ SEQ 4_10
PROG #5
PROG CHAIN NO = 0
SEQ 5_1 ~ SEQ 5_10
PROG #6
PROG CHAIN NO = 0
SEQ 6_1 ~ SEQ 6_10
PROG #7
PROG CHAIN NO = 0
SEQ 7_1 ~ SEQ 7_10
PROG #8
PROG CHAIN NO = 0
SEQ 8_1 ~ SEQ 8_10
PROG #9
PROG CHAIN NO = 0
SEQ 9_1 ~ SEQ 9_10
PROG #10
PROG CHAIN NO = 0
SEQ 10_1 ~ SEQ 10_10
END
START
