5.1.8.- EXPANSION MODULES.
Note: This option only appears when the unit is connected to an expansion module of
Transistor Digital Inputs/Outputs (M-CVM-AB-8I-8OTR), Relay Digital Inputs/Outputs
(M-CVM-AB-8I-8OR) or Analogue Inputs/Outputs (M-CVM-AB-4AI-8AO).
On the main screen, Figure 85, of this option, select the expansion module for which you want
to display the status of the inputs.

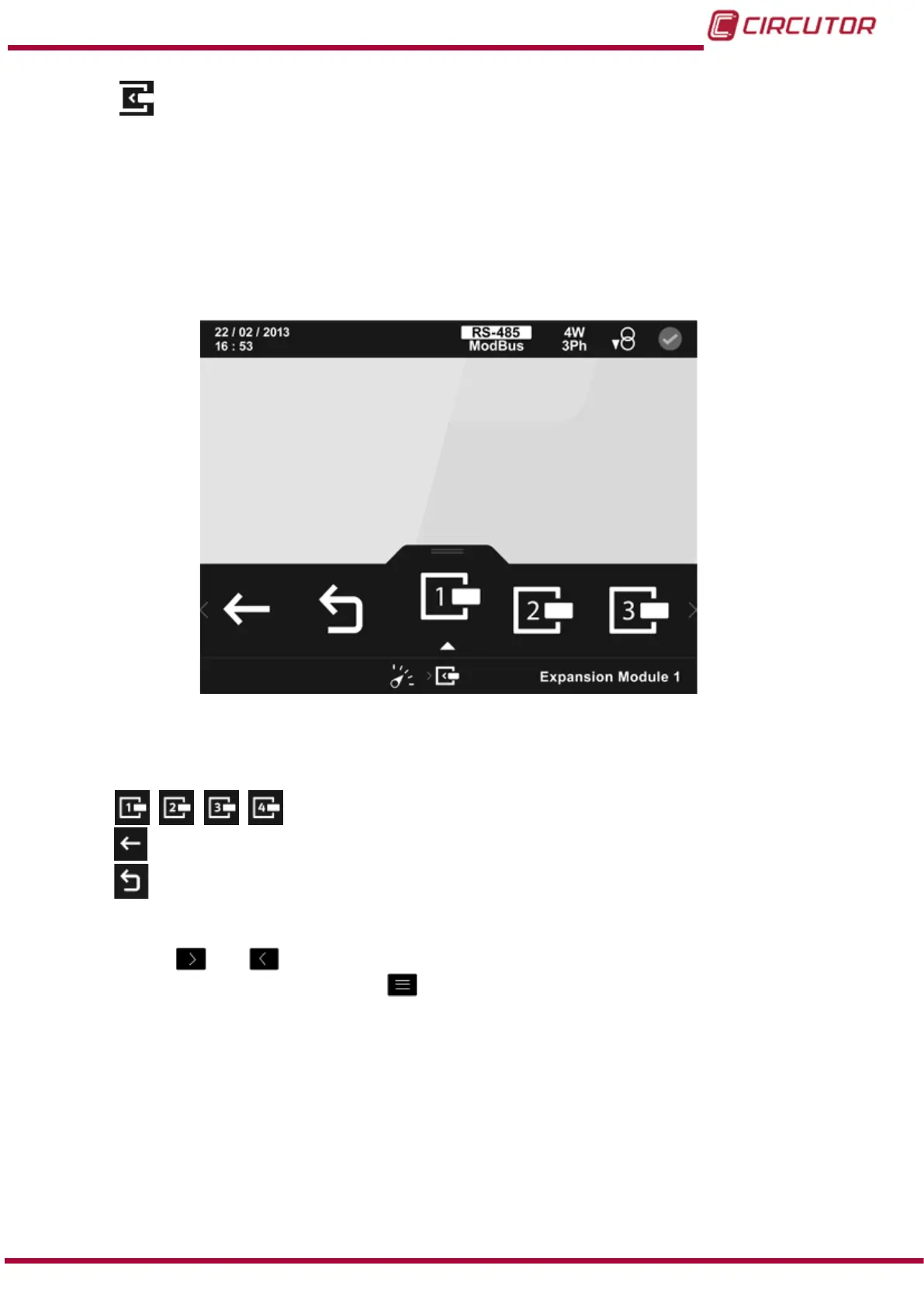

Figure 85: Expansion modules information screen.
The following options appear in the lower area:
, , , Select from the different expansion modules provided by the unit.
Back, returns to the home screen of the measurement display menu, Figure 26
Main Menu, back to the main menu, Figure 25.
Use the keys
and to select the different options.
To conrm the selection, press the key
.
When selecting an expansion module, you will view a screen like that in Figure 86, where you
can view the status of the module inputs.
101
Instruction Manual
CVM-B100 - CVM-B150
