● When programming the latch:
The latch is selected in this parameter, i.e., if the relay digital output is locked after it has been
tripped, even when the condition that triggered it has disappeared.
Note: If the unit loses its power supply, the latch disappears.
Enable the latch.
Disable the latch.
Previous, selects the previous parameter.
Next, selects the next parameter.
Conrm, conrms and saves in the memory the values programmed on the screen.
Back, returns to the home screen of the setup menu Figure 114.
Main Menu, back to the main menu, Figure 25.
Use the keys
and to select the different options.
To conrm the selection, press the key
.
If no key is pressed for 5 minutes, the display screen changes automatically to the default
screen.
5.6.16.- TRANSISTOR DIGITAL OUTPUTS.
Select the output to configure on the main configuration screen of the transistor digital
outputs,Figure 131.

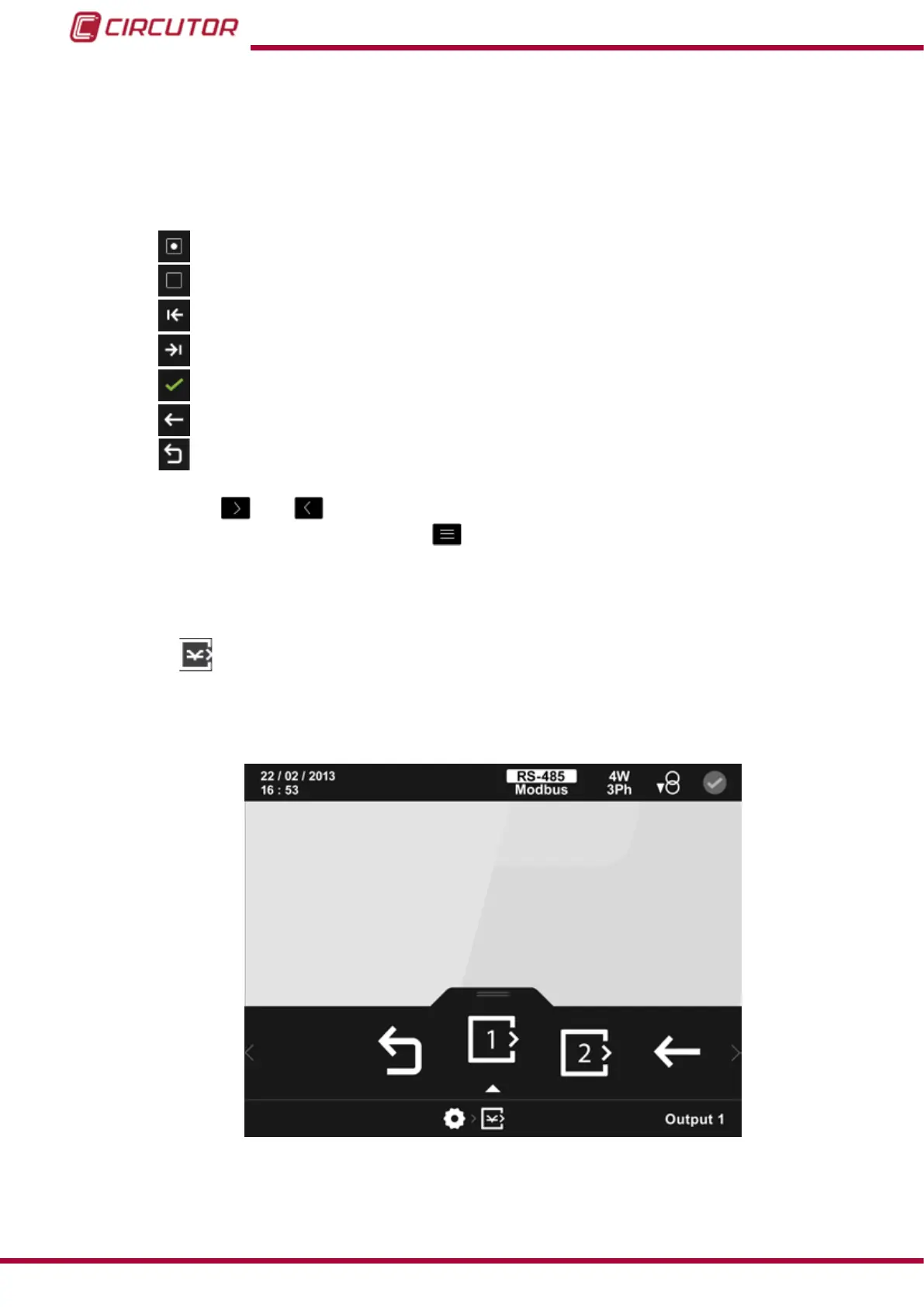

Figure 131: Main conguration screen of transistor digital outputs.
The following options appear in the lower area:
152
CVM-B100 - CVM-B150
Instruction Manual
