5.2.1.- ACTIVE ENERGY CLOSES III OF THE TOTAL TARIFF AND OF REACTIVE
ENERGY III OF THE TOTAL TARIFF.
This screen displays the graphical representation of the closes of consumed active energy III
of the total tariff (the sum of the three tariffs) after selecting the
option.
Or the consumed reactive energy III closes of the total tariff (the sum of the three tariffs) after
selecting the
option.

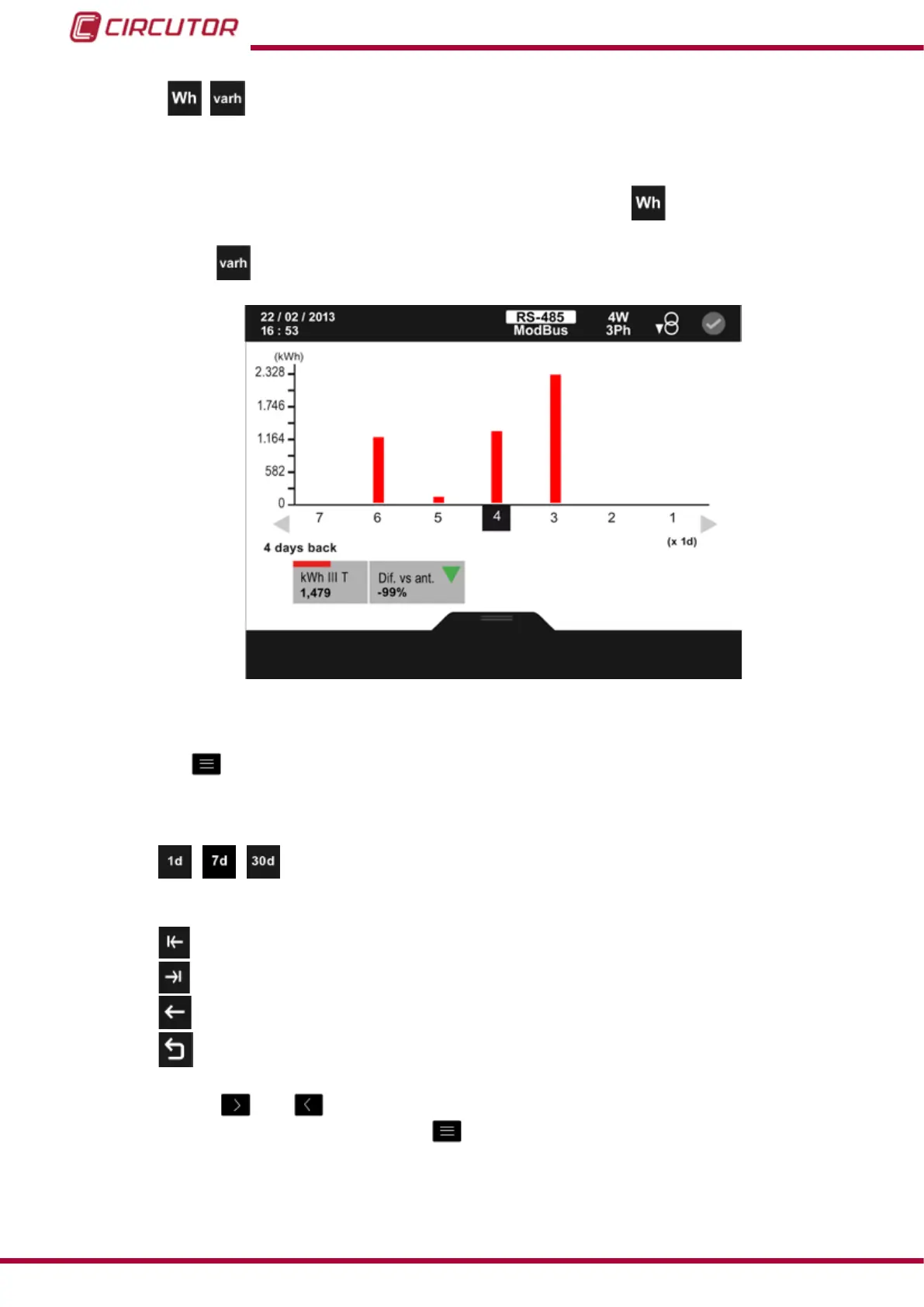

Figure 88:Active energy closes.
The menu in the lower area disappears after 3 seconds.
Press the
key to display the lower area again.
The lower area menu options are:
, , , Selecting the energy close time periods: Closes of day 1, week 1 or 1
month.
Note: The option selected is not displayed on the menu.
Previous, scrolls through the energy closes in ascending order.
Next, scrolls through the energy closes in descending order.
Back, returns to the energy closes menu main screen, Figure 87.
Main menu, back to the main menu, Figure 25.
Use the keys
and to select the different options.
To conrm the selection, press the key
.
The unit shows 29 energy closes for each display period.
