4.5.- LED INDICATORS
The CVM-B unit features:
- A CPU LED, which indicates that the unit is working correctly with a 1 second ashing.
A ashing of 0.5 seconds indicates that an error has occurred.
- An ALARM LED, which indicates that an alarm has been activated with the LED ash-
ing. If there is no alarm it remains switched off.
-3 LED on the navigation keys, which stay switched on with low current; when any of
the 3 keys are pressed they all come on at maximum current.
ALARM
KEYSCPU

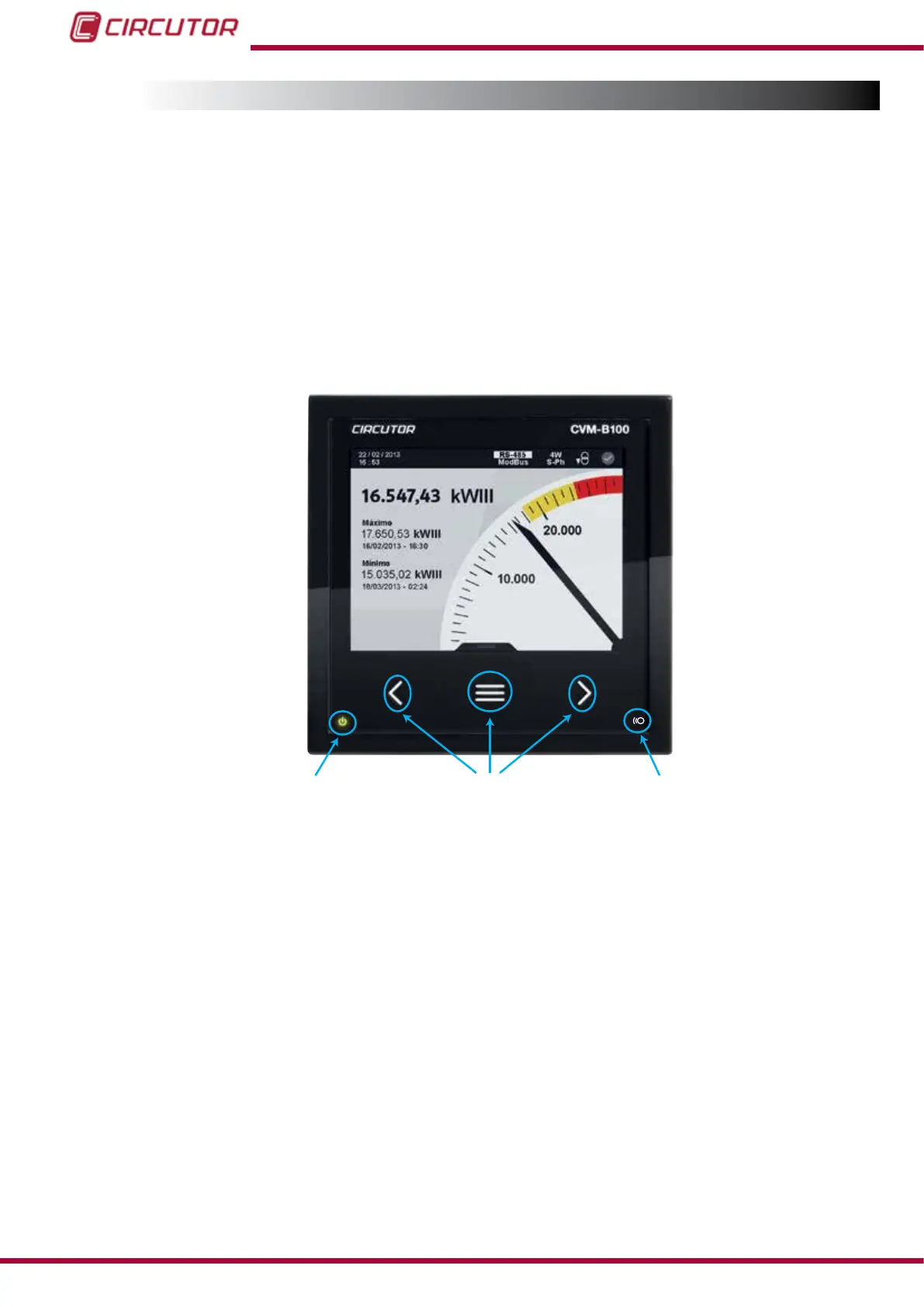

Figure 24:LED indicators of the CVM-B.
