5.1.4.- PHASORS.
By selecting this option, you can view the phase sequence ( Figure 80).

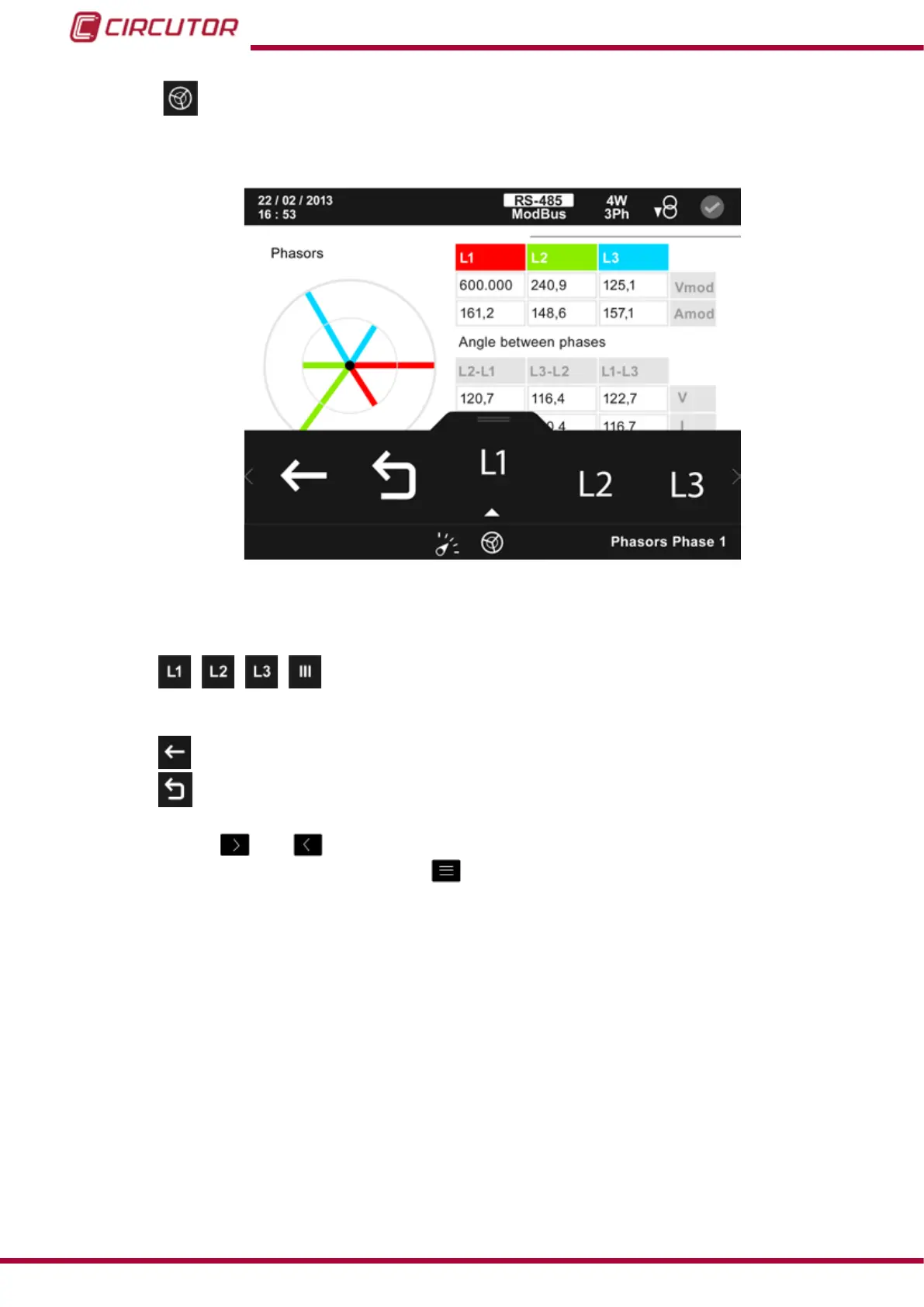

Figure 80: Phasor display screen.
The following options appear in the lower area:
, , , Select the line of phasors that you are going to display: L1, L2 , L3
or all the phasors.
Note: The option selected is not displayed on the menu.
Back, returns to the home screen of the measurement display menu, Figure 26.
Main Menu, back to the main menu, Figure 25.
Use the keys
and to select the different options.
To conrm the selection, press the key
.
The menu in the lower area disappears after a few seconds.
96
CVM-B100 - CVM-B150
Instruction Manual
