Circutor CVM-B100 User Manual

3.3.2.- TERMINALS ON THE LOWER FACE
Table 4:List of terminals on the lower face of the CVM-B.
Unit terminals
20 : Auxiliary power supply.
~ +, CVM-Bxxx-ITF
-, CVM-Bxxx-ITF-SDC
25: S2, Current input L2
21: Auxiliary power supply.
~ -, CVM-Bxxx-ITF
+, CVM-Bxxx-ITF-SDC
26: S1
,
Current input L3
22: S1
,
Current input L1 27: S2, Current input L3
23: S2, Current input L1
28: S1, Neutral current input, LN
24: S1
,
Current input L2
29: S2, Neutral current input, LN
20 21
22 23 24 25 26 27 28 29

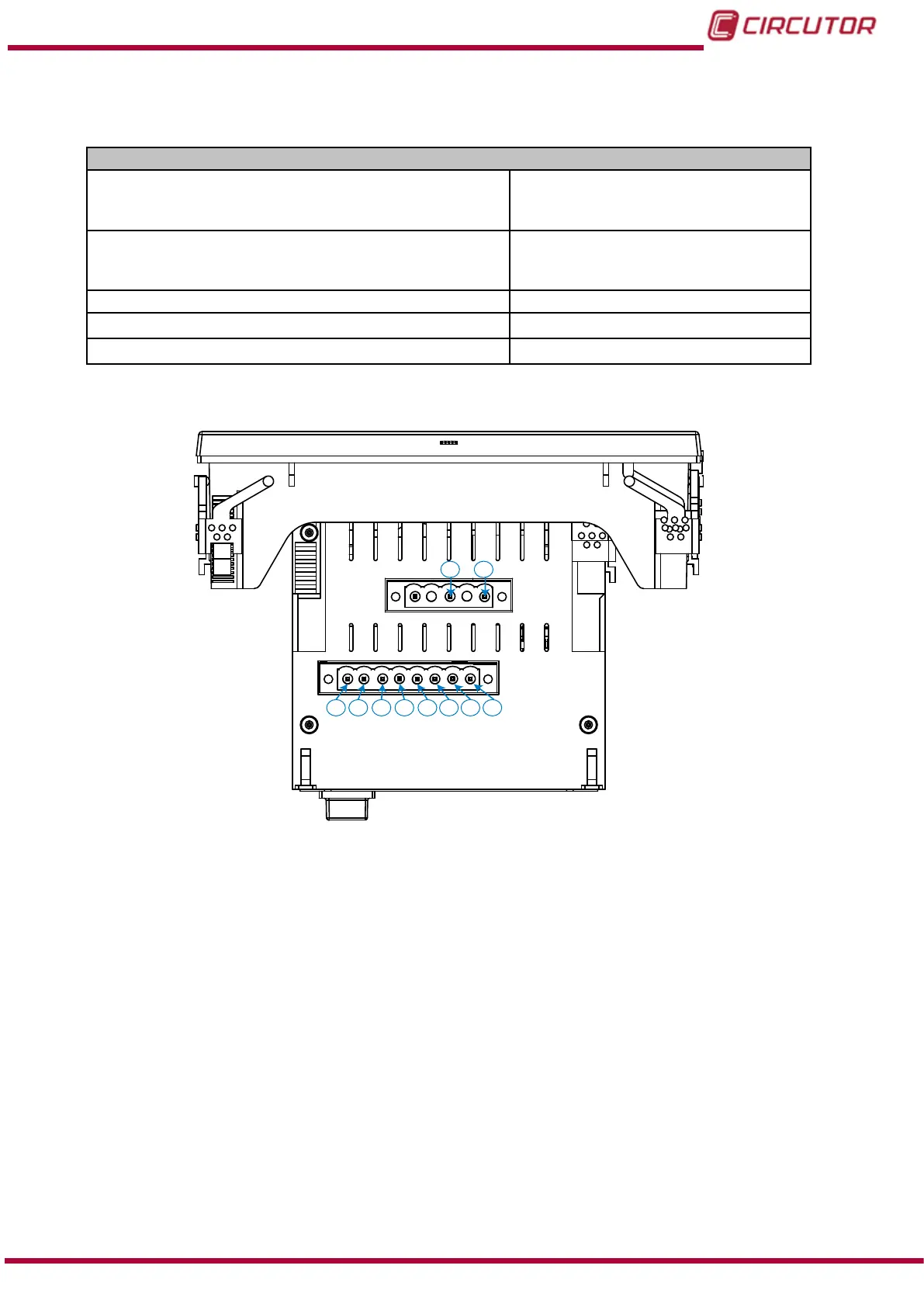

Figure 2:CVM-B terminals, lower face.
13
Instruction Manual
CVM-B100 - CVM-B150
