5.5.2.- INTEGRATED FUNCTIONS.

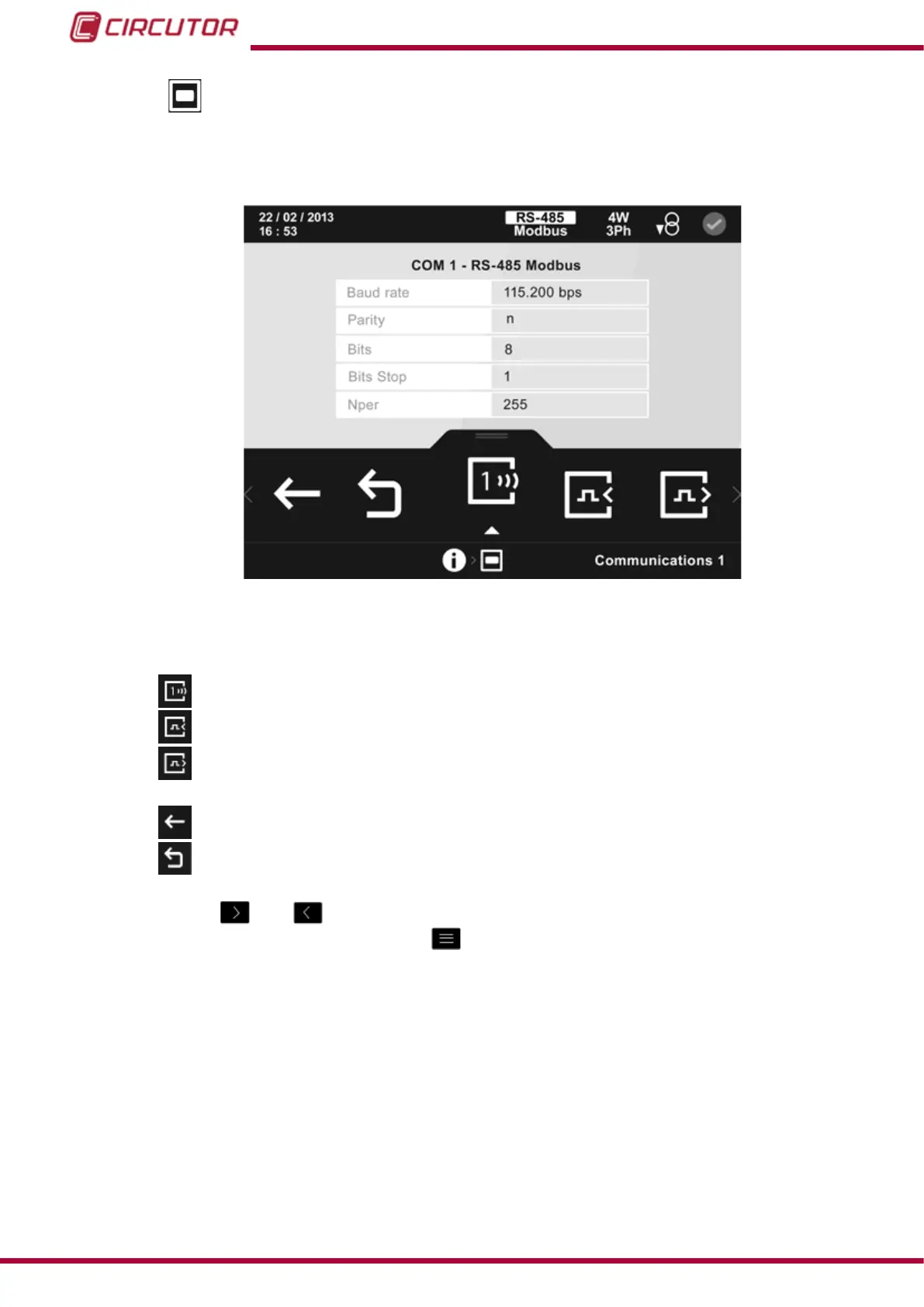

On the integrated functions screen, Figure 97, you will view the configuration of the
communications and digital inputs and outputs.
Figure 97: Integrated functions screen.
The following options appear in the lower area:
Communications, display of COM1 port communication parameters
Digital inputs, display of the conguration of the digital inputs integrated in the unit.
Digital outputs, display of the conguration of the digital outputs integrated in the
unit.
Back, returns to the home screen of the information menu, Figure 95.
Main Menu, back to the main menu, Figure 25.
Use the keys
and to select the different options.
To conrm the selection, press the key
.
If no key is pressed for 5 minutes, the display screen changes automatically to the default
screen.
112
CVM-B100 - CVM-B150
Instruction Manual
