7.3.- TRANSISTOR DIGITAL INPUTS/OUTPUTS
This expansion module contains 8 transistor digital inputs and 8 transistor digital outputs.
7.3.1.- CONNECTION TERMINALS
A.- Terminals on the upper face
Table 83:List of terminals on the upper face, Transistor digital inputs/outputs module.
Unit terminals
1: T
1 , Digital output of transistor 1 6: T 5 , Digital output of transistor 5
2: T
2 , Digital output of transistor 2 7: T6, Digital output of transistor 6
3: T
3 , Digital output of transistor 3 8: T 7 , Digital output of transistor 7
4: T
4 , Digital output of transistor 4
9: T
8 , Digital output of transistor 8
5: COM,
Common digital outputs of transistor T 1, T 2,
T 3 and T 4
10: COM , Common digital outputs of transistor T 5,
T 6, T 7 and T 8
1 2
3
4 5 6 7 8 9 10

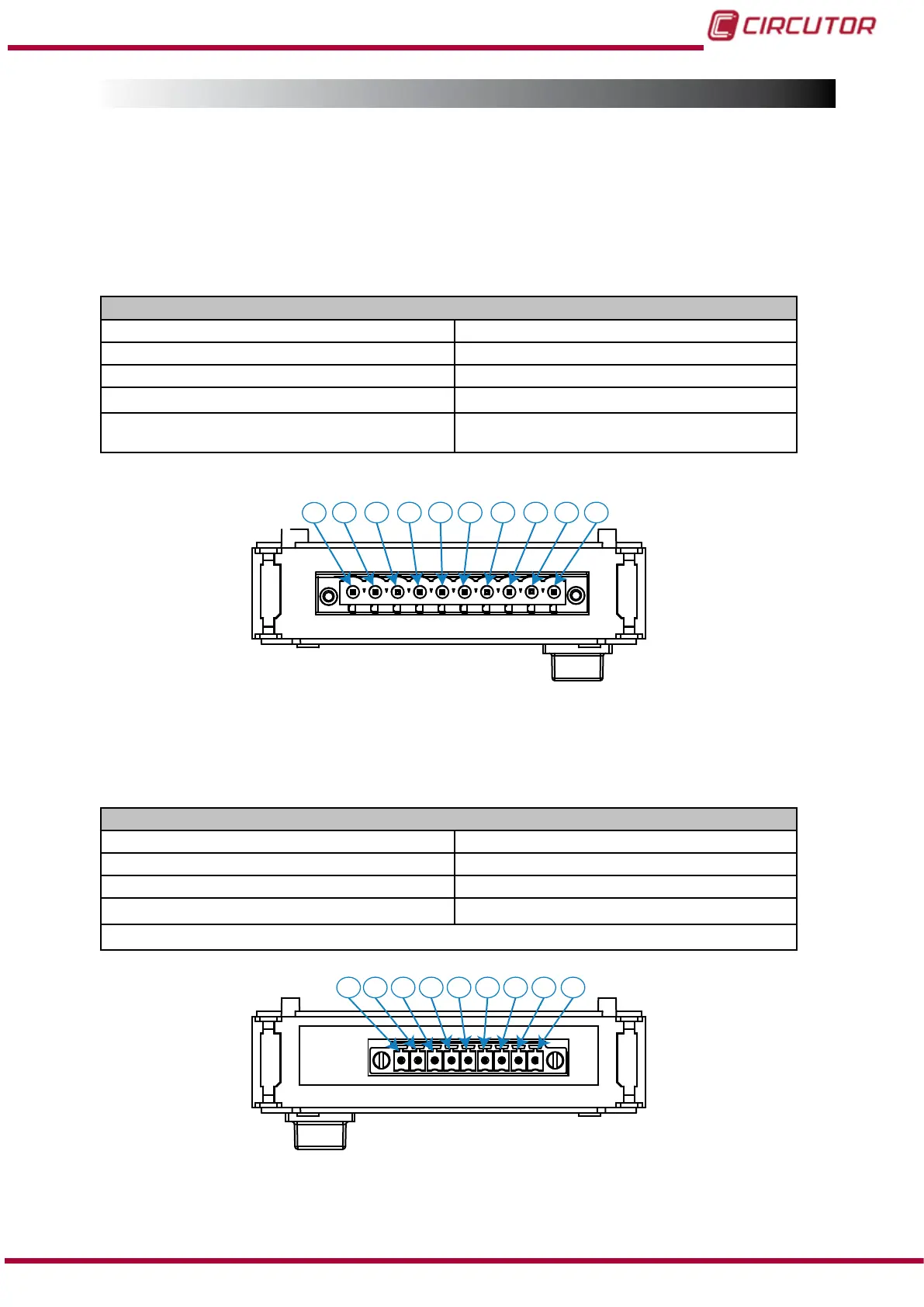

Figure 159: Terminals of Transistor Digital Inputs/Outputs, upper face.
B.- Terminals on the lower face
Table 84:List of terminals on the lower face, Transistor digital inputs/outputs module.
Unit terminals
11: COM, for digital inputs 16: I
5 , Digital input 5
12: I
1 , Digital input 1 17: I 6 , Digital input 6
13: I
2 , Digital input 2 18: I 7 , Digital input 7
14: I
3 , Digital input 3
19: I
8 , Digital input 8
15: I
4
,
Digital input 4
11 12 13 14 15 16 17 18 19
Figure 160:Terminals of Transistor Digital Inputs/Outputs, lower face.
227
Instruction Manual
CVM-B100 - CVM-B150
