5.6.7.- RATIO OF CURRENT TRANSFORMERS.

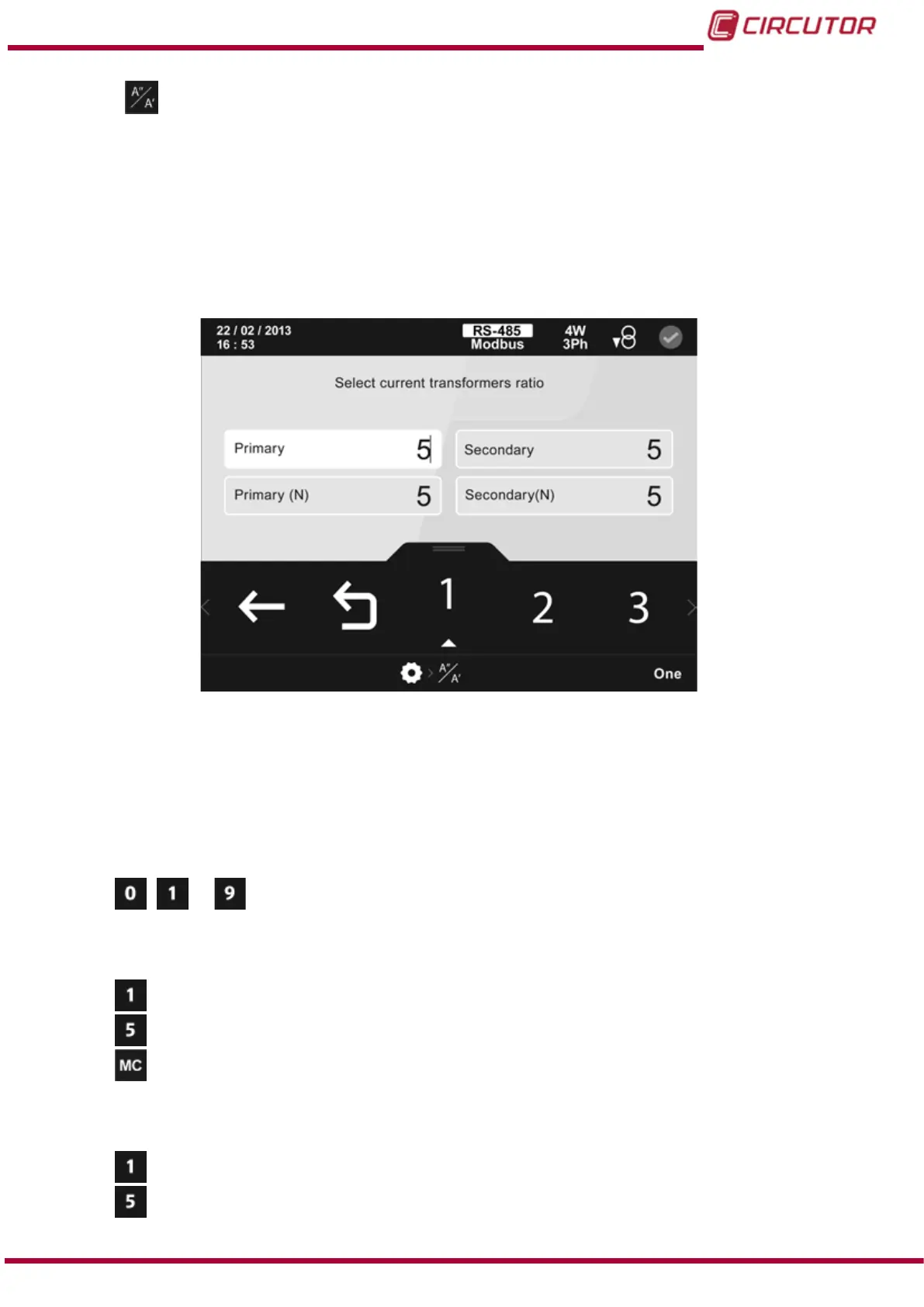

The current transformer ratio is selected on this screen, Figure 121.
The following is programmed:
 The value of the primary current
 The value of the secondary current.
 The value of the primary neutral current.
 The value of the secondary neutral current.
Figure 121: Current transformer ratio conguration screen.
The parameter selected is indicated in white.
The following options appear in the lower area:
● When programming the Primary current and the Primary neutral current:
, ... The ten possible digits to program.
● When programming the Secondary current:
To select a 1A secondary.
To select a 5A secondary.
To select an efcient MC type transformer (/0.250 A)
● When programming the secondary neutral current:
To select a 1A secondary.
To select a 5A secondary.
133
Instruction Manual
CVM-B100 - CVM-B150
