Circutor CVM-B100 User Manual

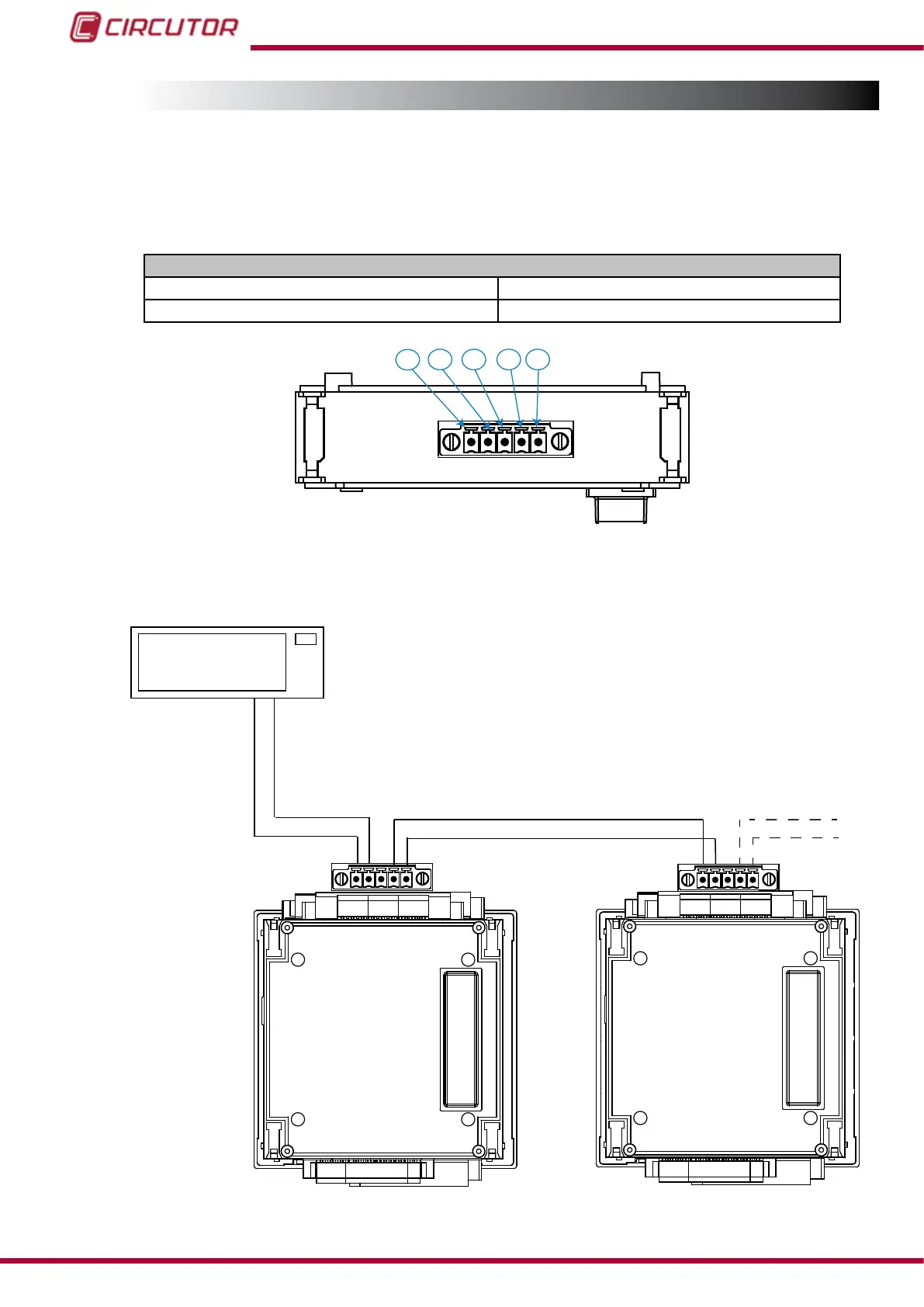

7.8.- MBUS COMMUNICATIONS MODULE
The MBus communications module, M-CVM-AB-MBus, enables communicating the CVM-B
with a M-Bus network.
7.8.1.- CONNECTION TERMINALS
Table 151: List of terminals, MBus communications module.
Connection terminals
1, 4: MBus + 3: Not use
2, 5: MBus -
1
2
3
4 5
Figure 199: MBus communications module terminals.
7.8.2.- CONNECTION DIAGRAM
MBus +
Red M-Bus / Network M-Bus
MBus - MBus +
MBus -
MBus + MBus +
MBus - MBus -
Figure 200:Connection diagram, MBus.
290
CVM-B100 - CVM-B150
Instruction Manual
