4.4.- DISPLAY
The unit has a colour TFT display which displays all the parameters indicated in Table 5.

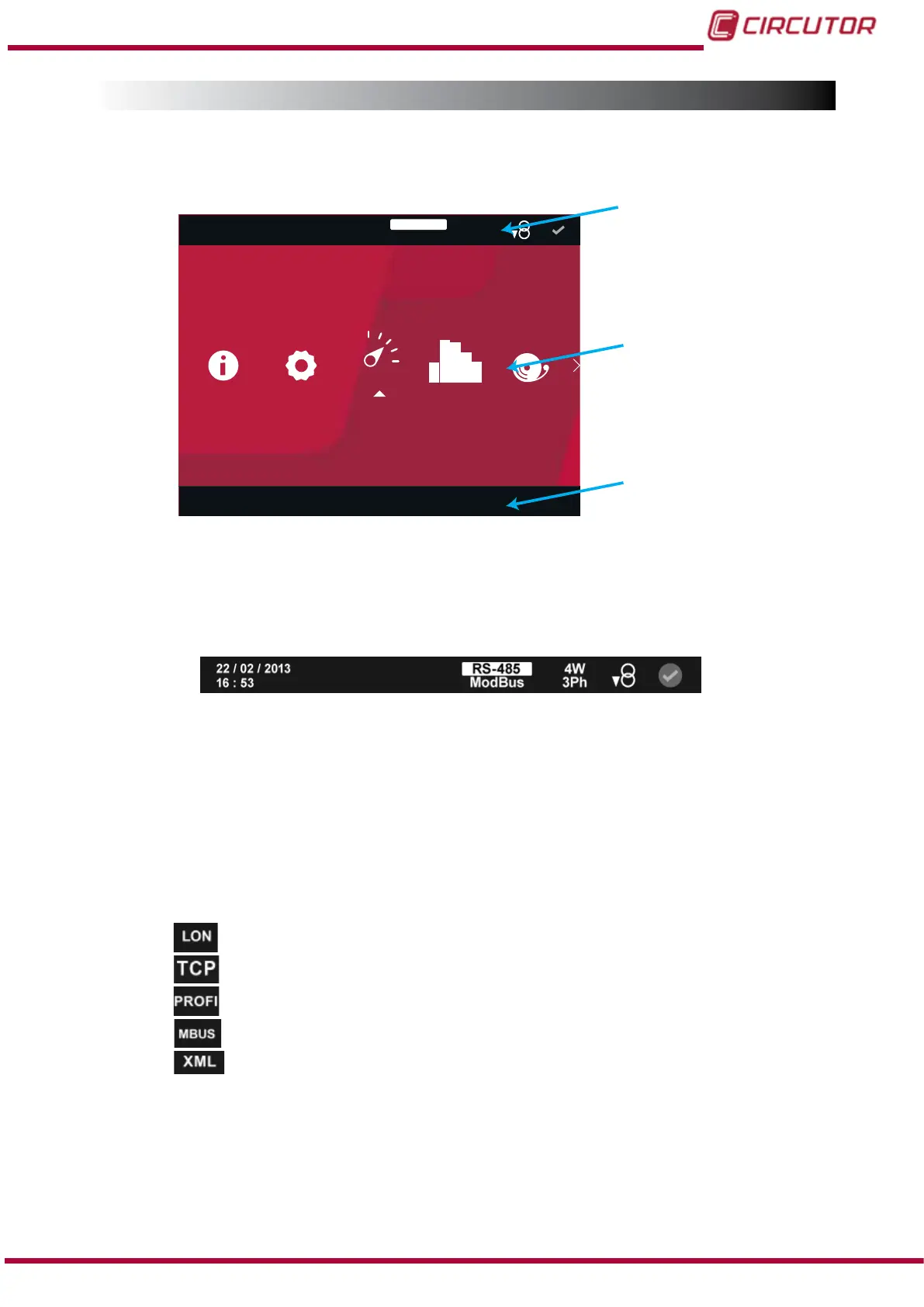

The display is divided into three areas (
Figure 19):
20 / 09 / 2014
16 : 53
4W
3PhModBus
RS-485
Measure & View
Upper area
Central area
Lower area
Figure 19: CVM-B display areas.
4.4.1.- UPPER AREA
Figure 20: Upper area of display.
The current date and time are displayed in real time in this area.
The following are also displayed:
 Communications expansion module
If a communications expansion module has been installed, one of the following mes-
sages will be displayed according to the purpose of the module:
LonWorks Module
Modbus/TCP Module.
Probus Module.
MBus Module.
Datalogger Module.
29
Instruction Manual
CVM-B100 - CVM-B150
