To conrm the selection, press the key .
High period:
Maximum value: 65536.
Minimum value: 1.
If no key is pressed for 5 minutes, the display screen changes automatically to the default
screen.
5.6.17.- DIGITAL INPUTS.
The operating mode for digital inputs and the parameters for each mode are selected in the
main conguration screen for digital inputs, Figure 134.
The possible operating modes are:
Tariff, the various tariffs are selected with the digital inputs.
Impulses, to select the inputs as impulse inputs.
Logic state, to select the inputs as a logic input.

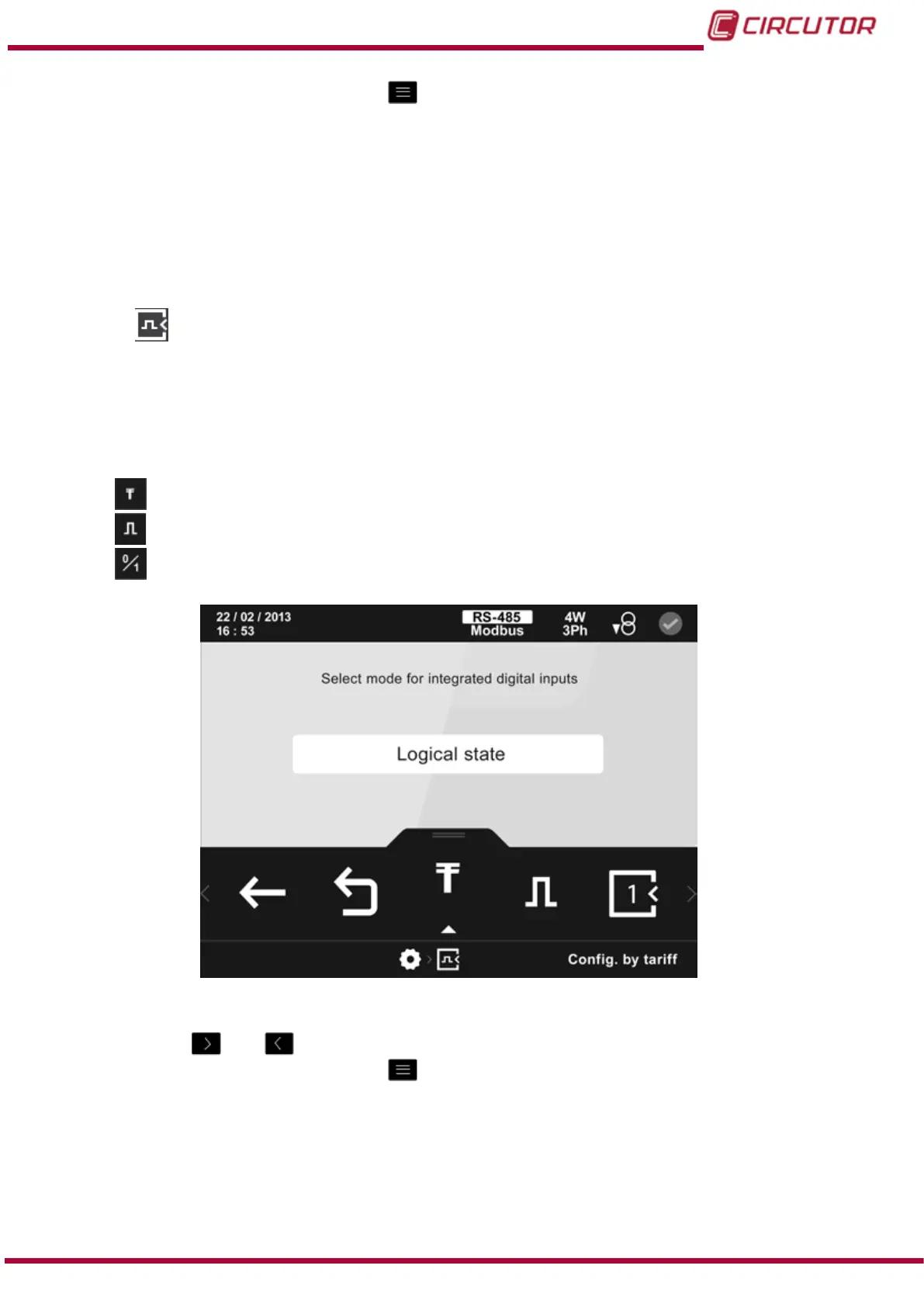

Figure 134: Main conguration screen for digital inputs.
Using the keys and rstly select the operating mode.
To conrm the selection, press the key
.
The conguration parameters of digital inputs 1 and 2 change according to the operating modes.
If no key is pressed for 5 minutes, the display screen changes automatically to the default
screen.
161
Instruction Manual
CVM-B100 - CVM-B150
