5.6.17.1.- Conguration of digital inputs, Tariff mode.
When selecting the tariff mode the two inputs operate in the same mode; they cannot be
programmed independently (Figure 135).
Table 7 shows the selection of the tariff according to the digital inputs.

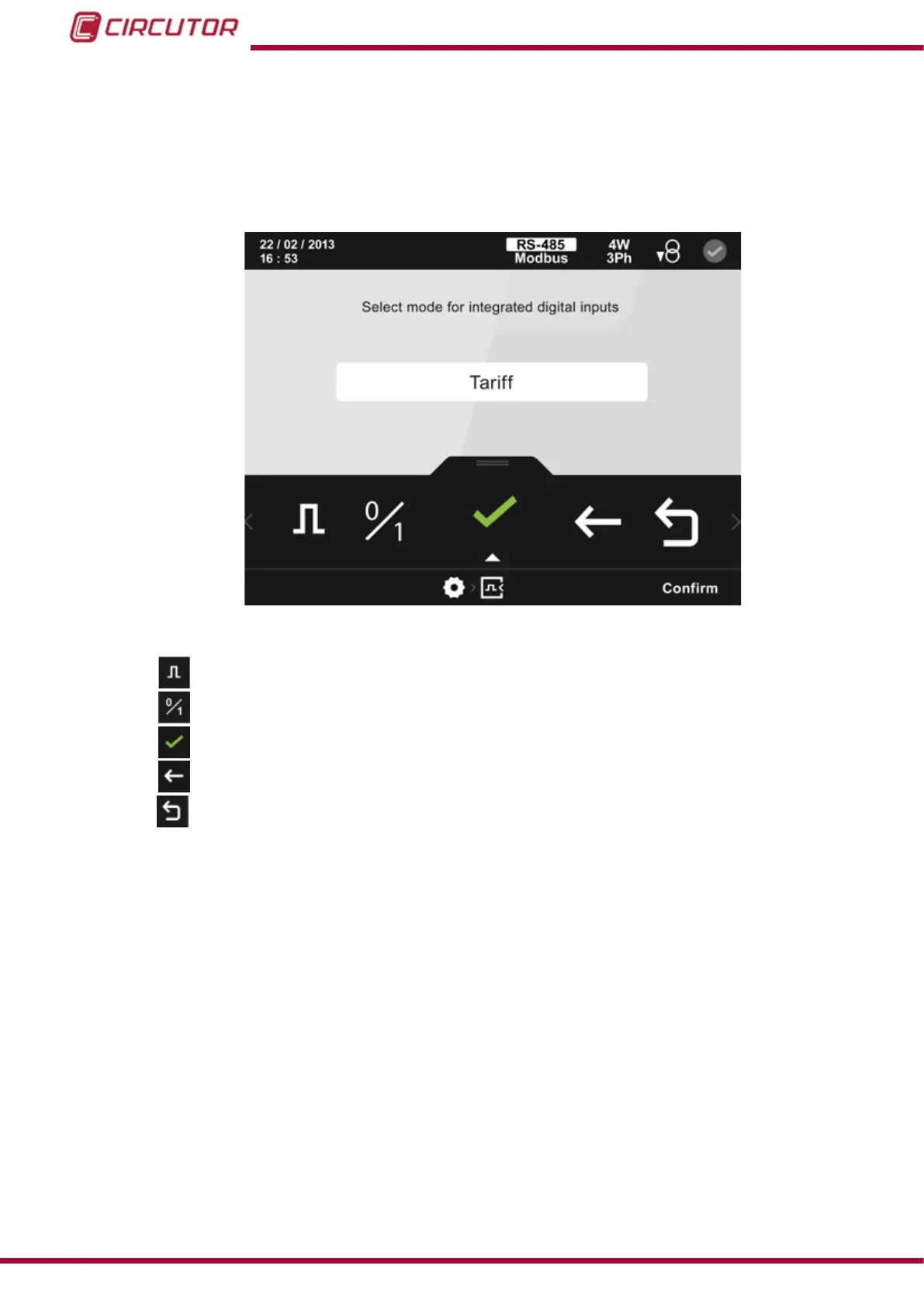

Figure 135: Digital inputs conguration screen (tariff mode).
Impulses, to select the inputs as impulse inputs.
Logic state, to select the inputs as a logic input.
Conrm, conrms and saves in the memory the values programmed on the screen.
Back, returns to the home screen of the setup menu Figura 113.
Main Menu, back to the main menu, Figure 25.
If no key is pressed for 5 minutes, the display screen changes automatically to the default
screen.
162
CVM-B100 - CVM-B150
Instruction Manual
