Main Menu, back to the main menu, Figure 25.
Use the keys
and to select the different options.
To conrm the selection, press the key
.
If no key is pressed for 5 minutes, the display screen changes automatically to the default
screen.
5.6.9.-
DISPLAY OF VARIABLES.
The parameters to be displayed for each type of instantaneous, incremental and demand value
are selected on this screen,

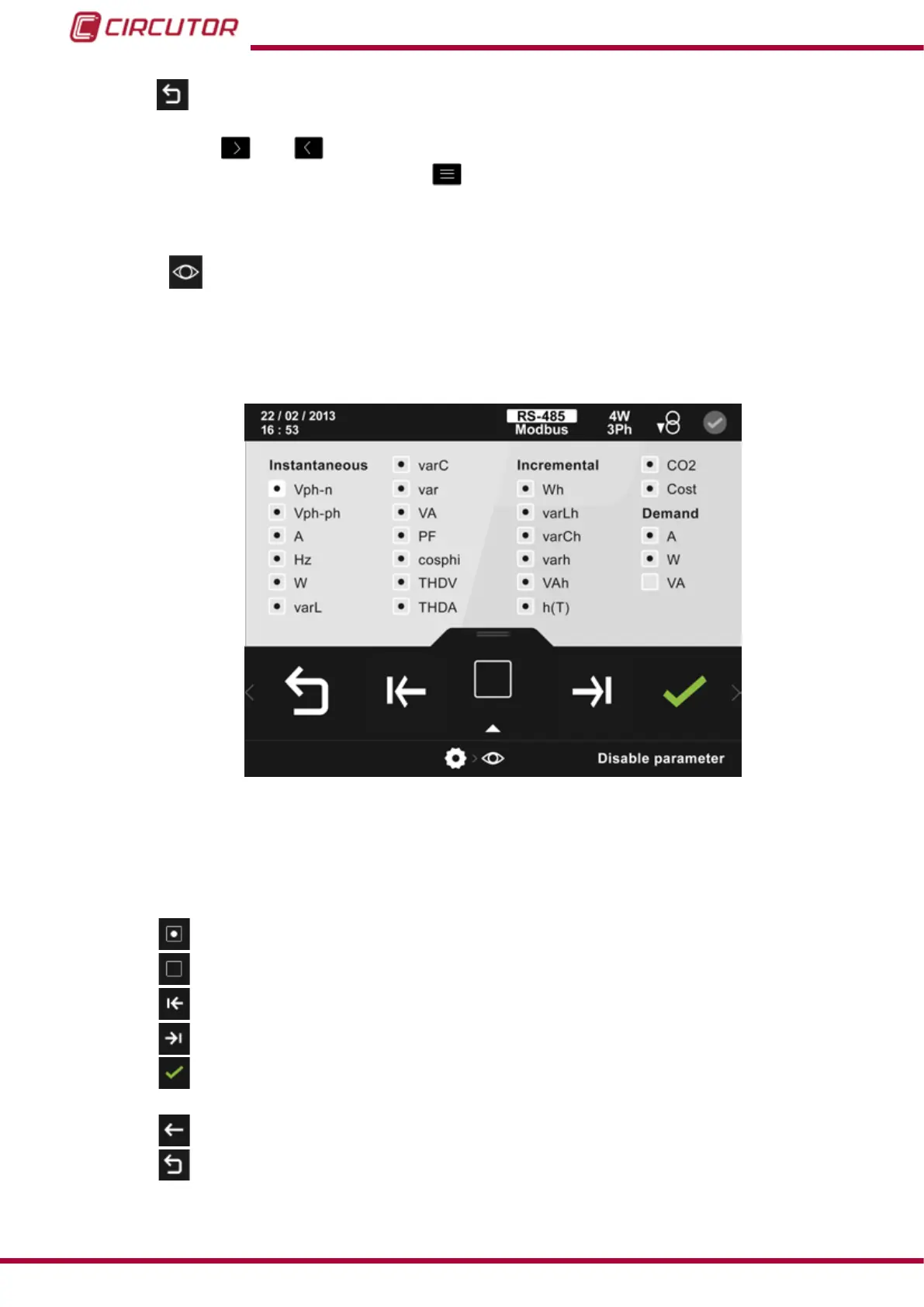

Figure 123:
Figure 123: Variable display conguration screen.
The parameter selected is indicated in white.
The following options appear in the lower area:
Enable display of the parameter.
Disable display of the parameter.
Previous, selects the previous parameter.
Next, selects the next parameter.
Conrm, conrms and saves in the memory the values programmed on the
screen.
Back, returns to the home screen of the setup menu Figure 114.
Main Menu, back to the main menu, Figure 25.
136
CVM-B100 - CVM-B150
Instruction Manual
