Circutor CVM-B100 User Manual

7.8.3.- CONFIGURATION
You can access the setup menu on the main screen, Figure 25.

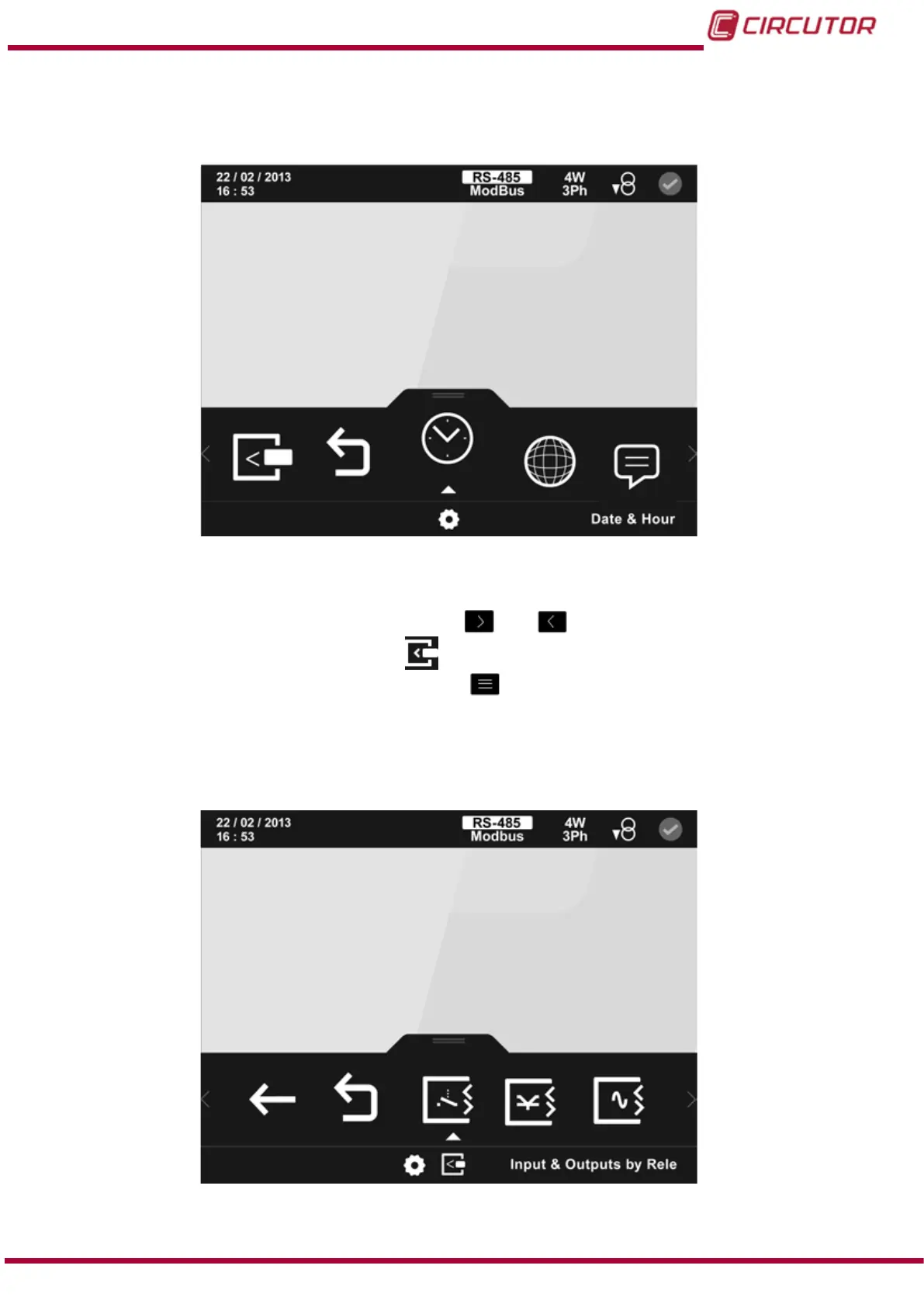

The screen in Figure 201, is the home screen of the setup menu.
Figure 201: Main screen of setup menu.
All the possible programming parameters for the unit appear in the lower area. To congure the
expansion modules you need to, using the keys
and , browse the various parameters
until nding the expansion modules icon, .
To access the selected parameter, press the key
.
If no key is pressed for 5 minutes, the display screen changes automatically to the default
screen.
The main screen of the expansion modules is shown in Figure 202.
Figure 202: Main screen of expansion modules.
291
Instruction Manual
CVM-B100 - CVM-B150
