Displayed here are all the expansion modules connected to the unit.
If in the unit there is more than one module of the same type connected, a number will appear
in the icon to differentiate them
; the module with the lowest number has the lowest serial
number.
Use the
and buttons to move to the different options and select the MBus
communications icon
.
Press the button
to open the main conguration screen of the MBus communications
module, Figure 203.

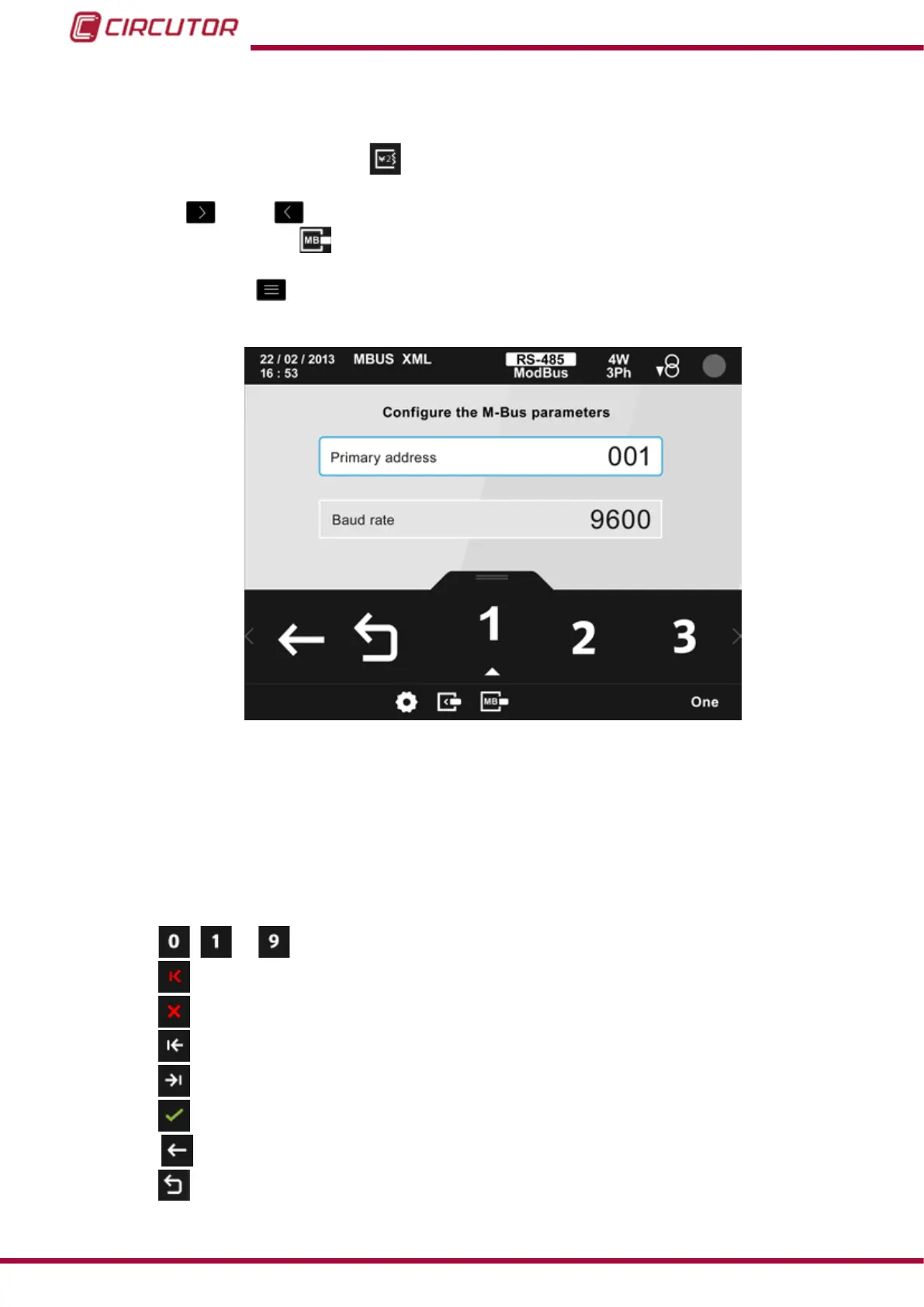

Figure 203: Main conguration screen of the MBus module
The conguration parameters are:
 The primary address
 The transmission speed, Baud rate.
● When programming the Primary address:
, ... the ten possible digits to program.
Delete character, deletes the selected character.
Delete parameter, deletes the characters of the selected parameter.
Previous, selects the previous parameter.
Siguiente, selecciona el parámetro siguiente.
Conrm, conrms and saves the values programmed on the screen in the memory.
Return, returns to the home screen of the expansion modules menu.
Main Menu, returns to the main menu, Figure 25.
292
CVM-B100 - CVM-B150
Instruction Manual
