7.10.- MODBUS/TCP Switch COMMUNICATIONS MODULE
The M-CVM-AB-Modbus TCP (Switch) is a communications module for connecting the CVM-B
units to a Modbus/TCP network and as an Ethernet to Ethernet gateway.
Modbus/TCP is a communications protocol designed for enabling industrial units to
communicate with each other on Ethernet networks using TCP/IP protocols.
Basically, Modbus/TCP encapsulates a Modbus frame within a TCP frame, making it possible
to congure and monitor a unit via the Internet.
7.10.1.- CONNECTION TERMINALS
Table 158:List of terminals, Modbus TCP (Switch) communications module.
Terminals in the unit
1: Ethernet
2: Ethernet
1
2

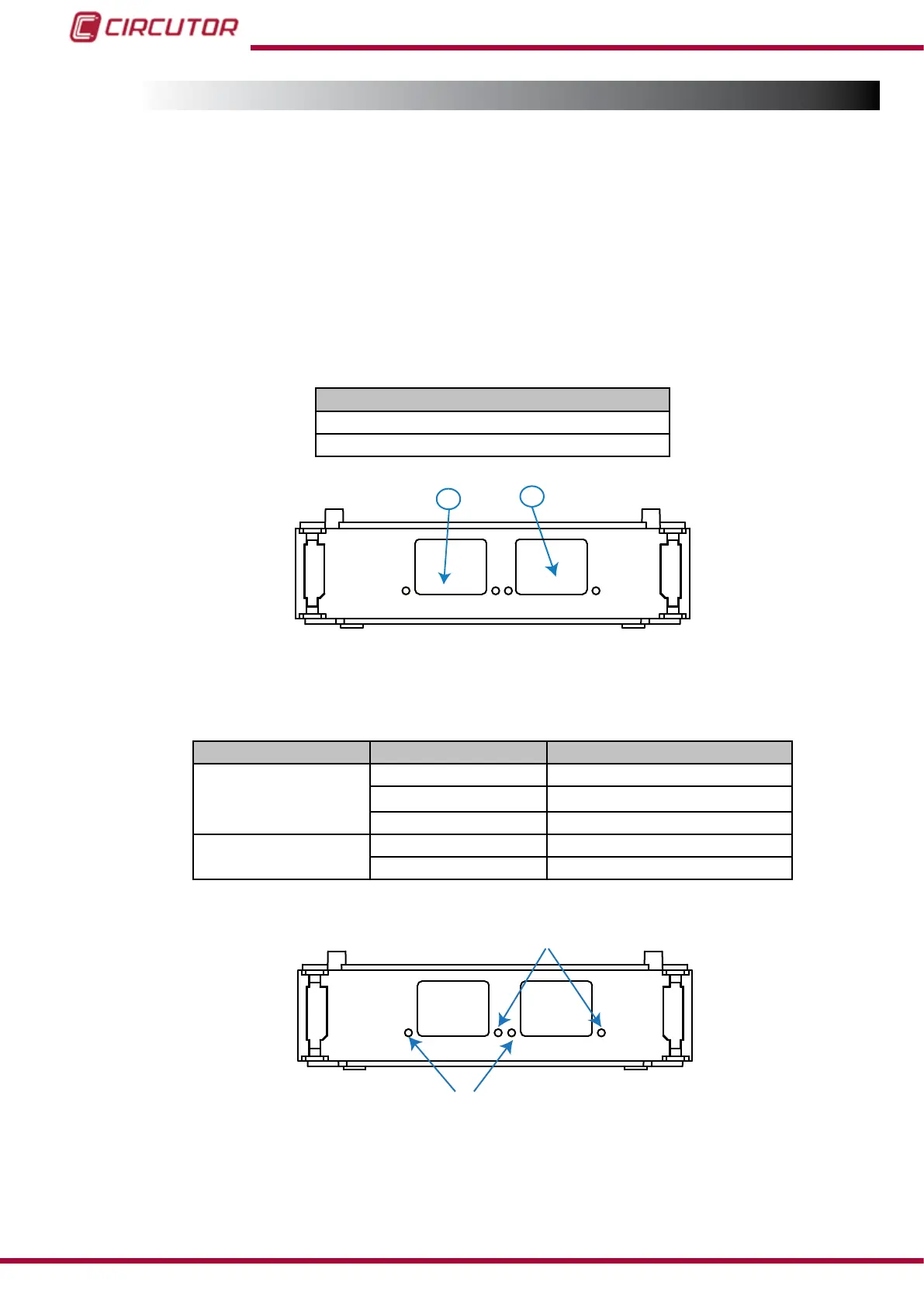

Figure 213: Modbus TCP (Switch) communications module terminals
7.10.2.- LEDs
Table 159: List of LEDs, Modbus TCP (Switch) communications module.
LED Status Function
LINK / ACT
On Unit connected to the network
Off
Unit disconnected from the network
Blinking light Activity on the bus
SPEED
On 100 BT
Off 10 BT
SPEED
LINK/ACT
Figure 214: LEDs Modbus TCP. (Switch)
304
CVM-B100 - CVM-B150
Instruction Manual
