5.1.-MEASUREMENT DISPLAY MENU

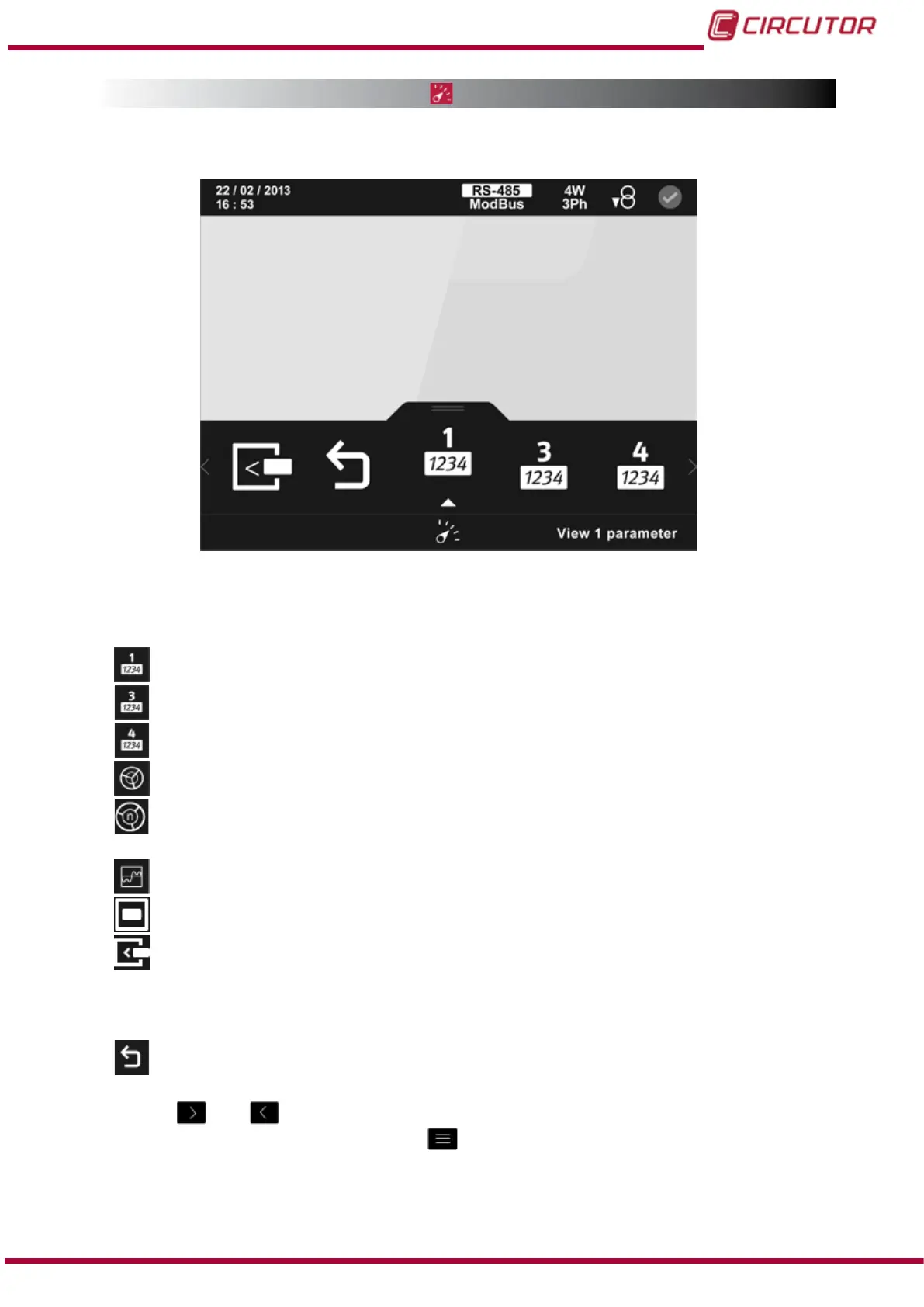

The screen in Figure 26 is the home screen for the measurement display menu.
Figure 26: Main screen of the measurement display menu.
The display options appear in the lower area:
Display 1 parameter.
Display 3 parameters.
Display 4 parameters.
Phasors.
Standardised phasors.If the congured connection mode is single-phase or two-
phase without neutral, the normalised phasors icon is not displayed.
Harmonics
Integrated functions.
Expansion modules. This option only appears when the unit is connected to an
an expansion module of Transistor Digital Inputs/Outputs (M-CVM-AB-8I-8OTR),
Relay Digital Inputs/Outputs (M-CVM-AB-8I-8OR) or Analogue Inputs/Outputs
(M-CVM-AB-4AI-8AO).
Main menu, return to the main menu, Figure 25.
Use the keys
and to browse the various menus.
To access the selected menu press the key
.
If no key is pressed for 5 minutes, the display screen changes automatically to the default
screen.
